Request: 12 Pin Wiring Diagram - Rear Tailgate Locks

[Cconnss]

Hi all,

Had an incident with my tailgate coming off recently, pulled the wires out of the 12 pin harness connecting my rear tailgate locks. The 2 other plug harnesses are fine, only function I have lost is the auto lock feature.

Anyone have a link to the wiring diagram for the 12 pin?I have searched for the past few hours, no luck. I have 2 out of the 5 wires in the correct place.

Trucks trimmed XLT 302A High

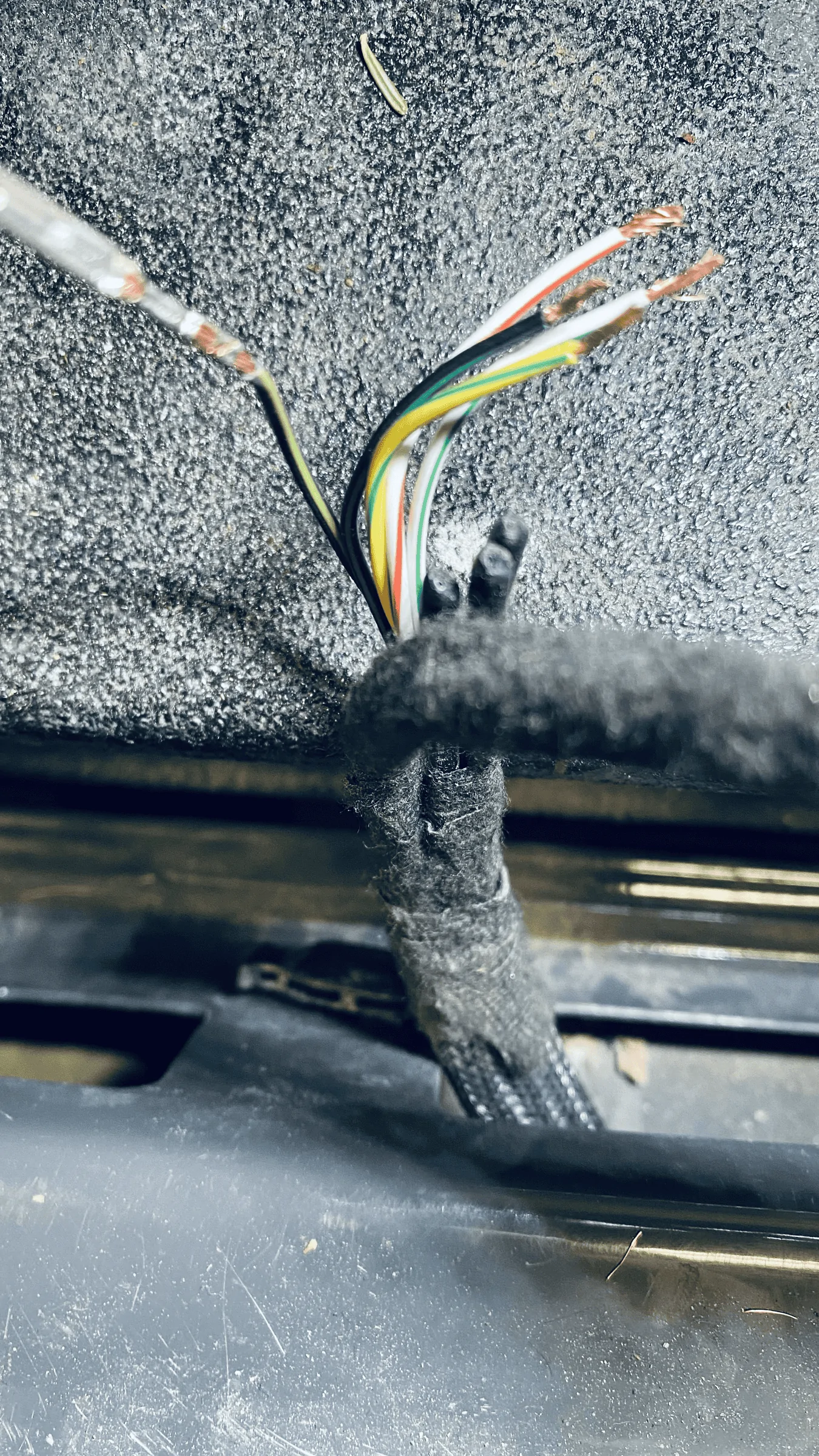

Thanks in advance, some photos below for reference.

Sponsored



[Doyouevenboost]

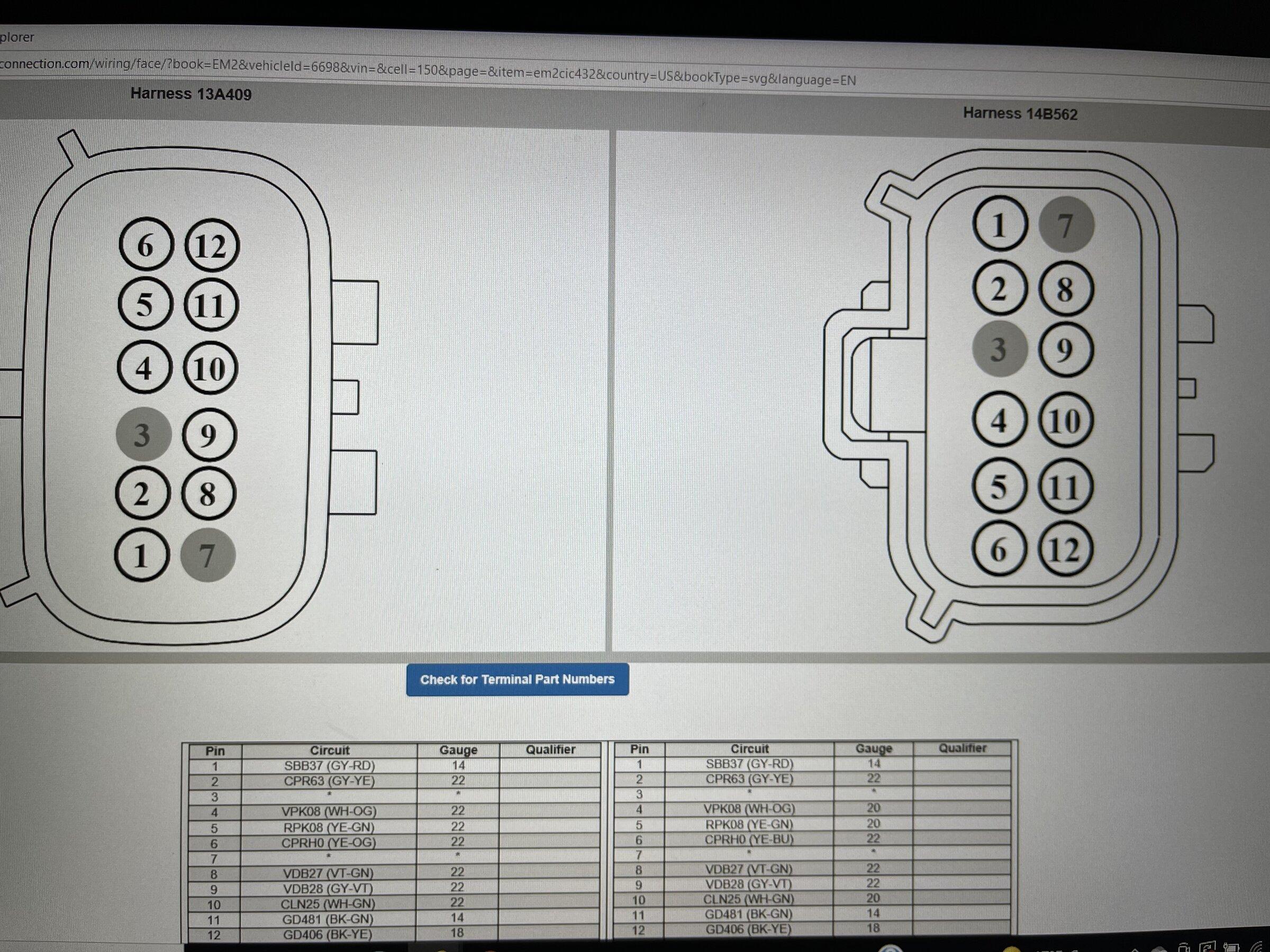

Might be too late to help



[Cconnss]

Might be too late to help

Thank you my friend! Trucks been laid up so this was life saver, much appreciated! cheers



[Dnelems]

I’ve been looking for the same thing. So what two connections are lock and unlock?
