Thermal Images of the Lightning

Firn

Well-known member
Joined
Aug 26, 2024
Threads
12
Messages
337
Reaction score
328
Location
USA
Vehicles
23 Pro ER
Nice cold evening (25 degrees F) and a friend happened to have a kick butt thermal cam, so we snapped a few pictures for fun.

The truck had been sitting about an hour and a half and then remote started about 15 minutes prior. Prior to that it had driven 30 minutes after sitting in my 60 degree garage.

Temp scale (sideways) is pretty accurate.

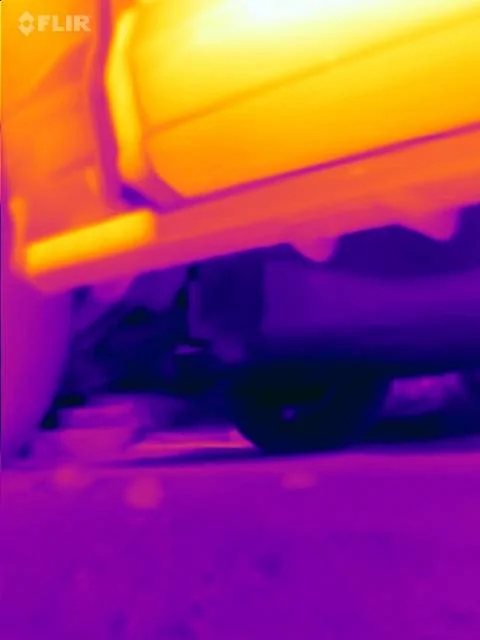

Side shot.
Ford F-150 Lightning Thermal Images of the Lightning 1000002142

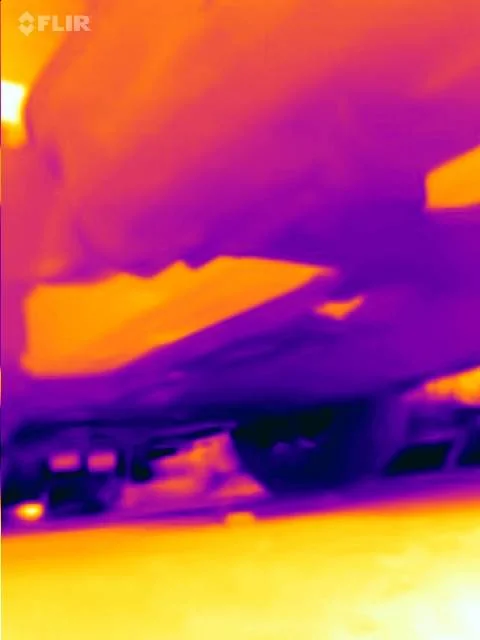

Battery 1
Ford F-150 Lightning Thermal Images of the Lightning 1000002140

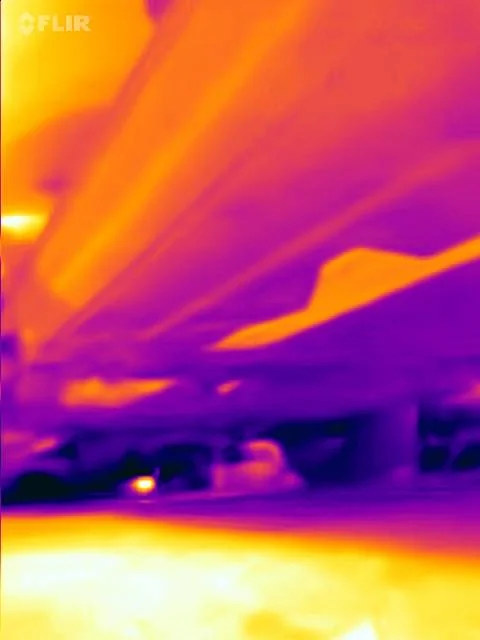

Battery 2
Ford F-150 Lightning Thermal Images of the Lightning 1000002141


Rear motor (looking forward from under spare tire)
Ford F-150 Lightning Thermal Images of the Lightning 1000002139


K6CCC

Active member
First Name
Jim
Joined
Sep 12, 2024
Threads
2
Messages
27
Reaction score
15
Location
Glendora, Calif.
Vehicles
2003 Dodge Ram 2500 4x4, 2017 Toyota Corolla
Occupation
Two Way radio systems
Nice. A friend of mine has a nice FLIR thermal camera that I have used for a few things. Can be interesting to see what get hot...
