CHMSL Center Brake Light Wire for Cap Topper & Fob wires location

[amesghali]

I just got a new LEER topper for my Lightning, but the installer was not able to connect the CHMSL or the FOB functions. Does anyone know exactly where these wires are located?

Sponsored



[amesghali]

After long research, I figured it out.

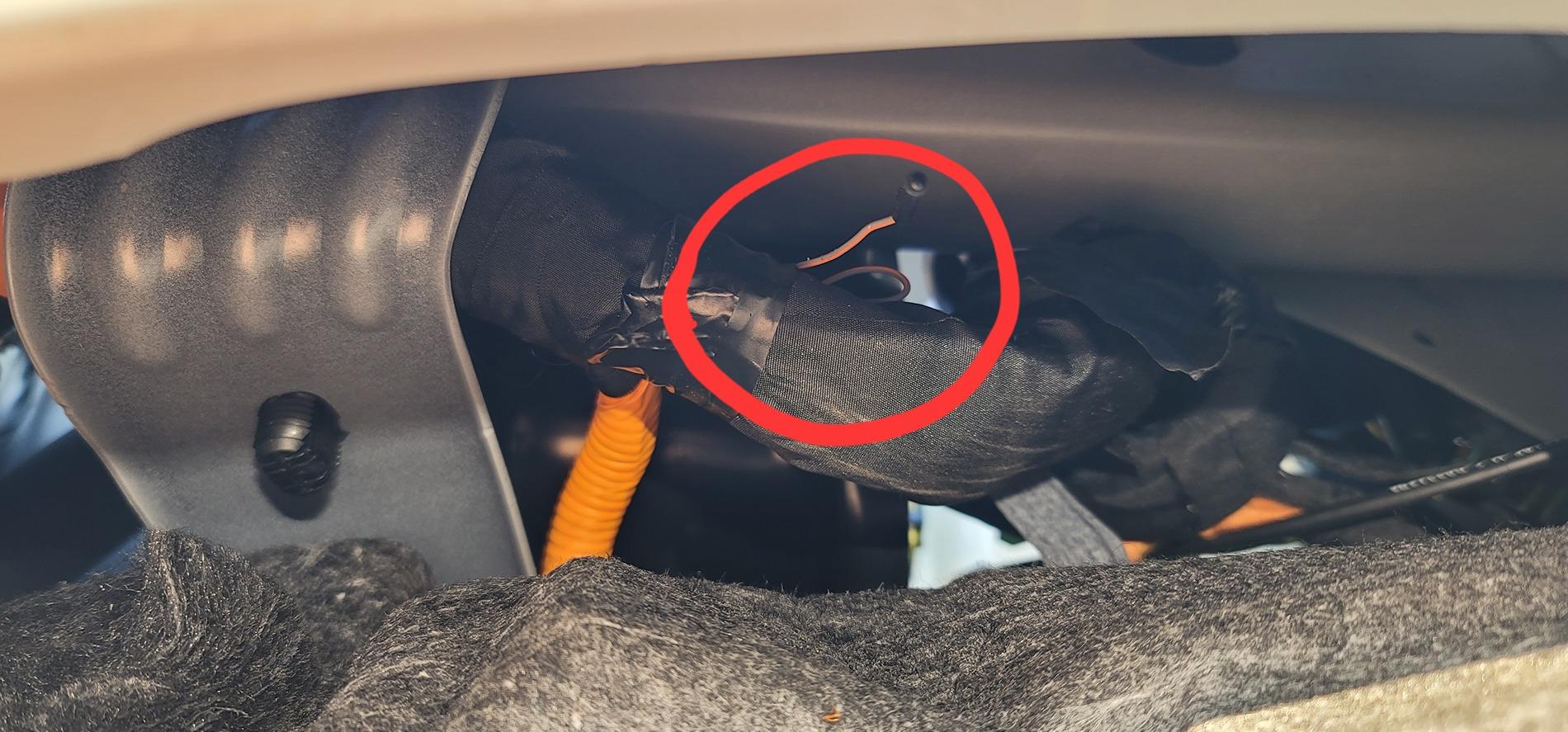

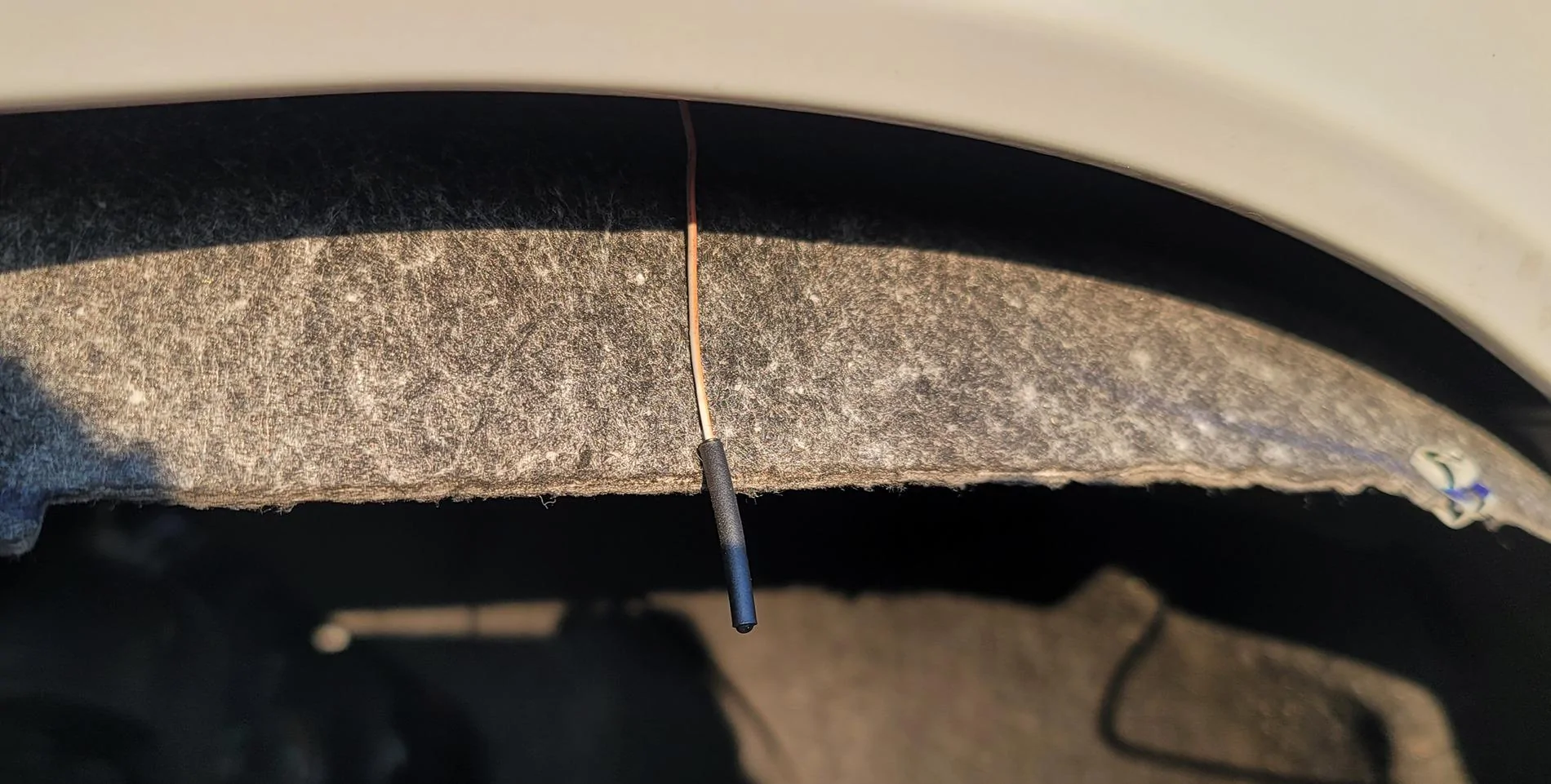

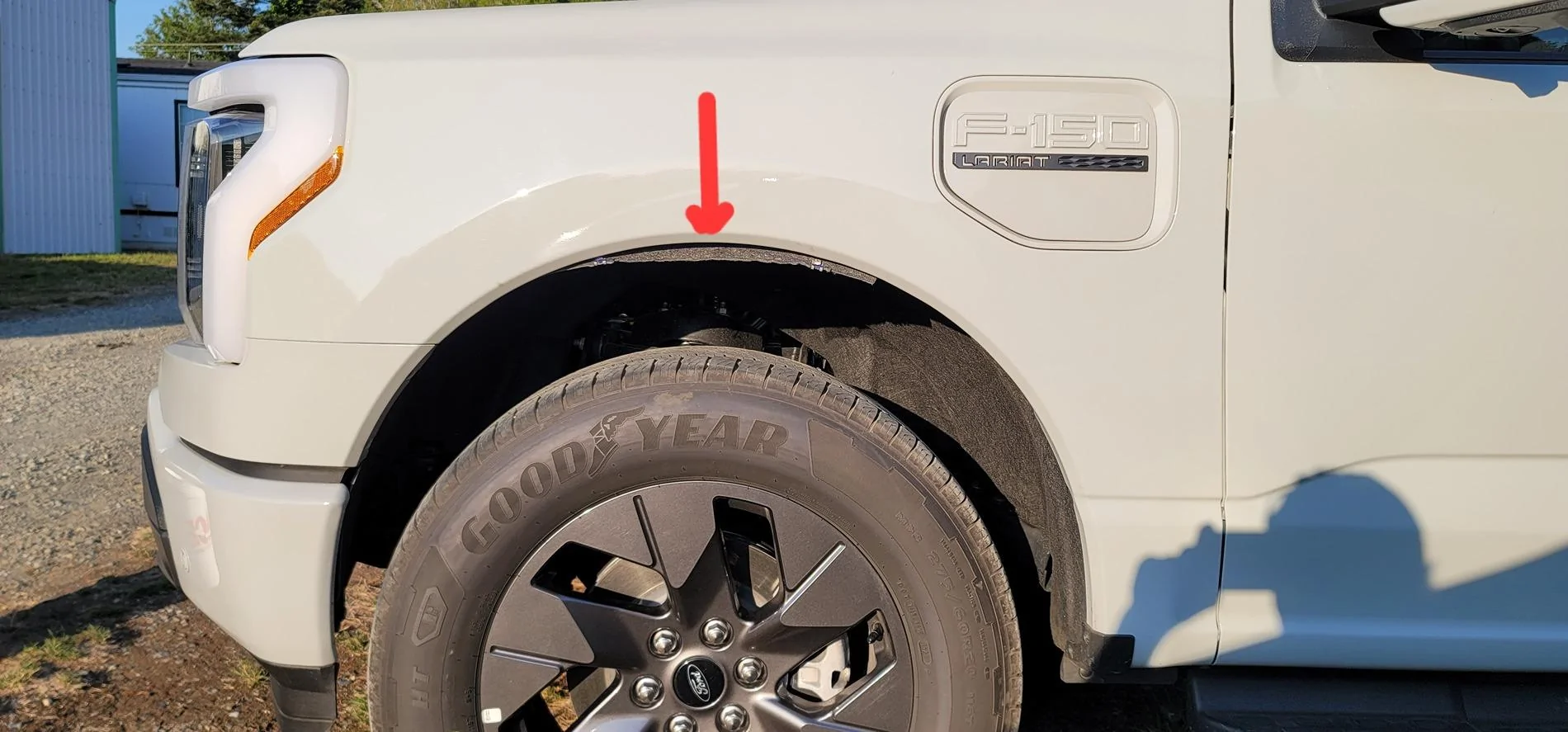

The CMSL auxiliary wire is located just behind the wheel well cover directly at 12 o'clock. It's an ORANGE/GRAY wire tucked in a harness.

NOTE...
This wire is only energized when the ignition is ON. Pressing the brake pedal with the ignition OFF will still light your brake lights, but the CMSL will not light up. This is problematic and can cause a false fault.

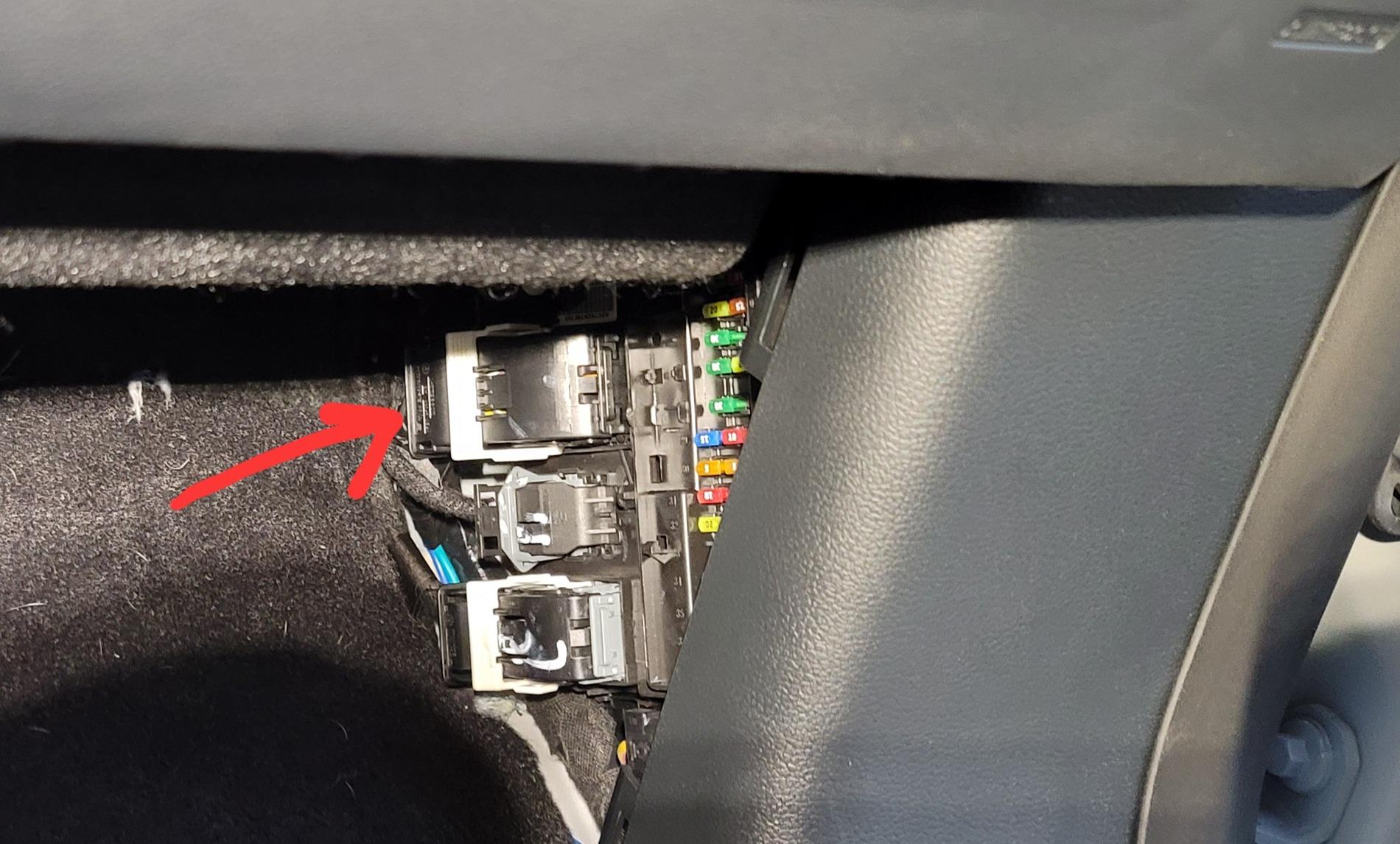

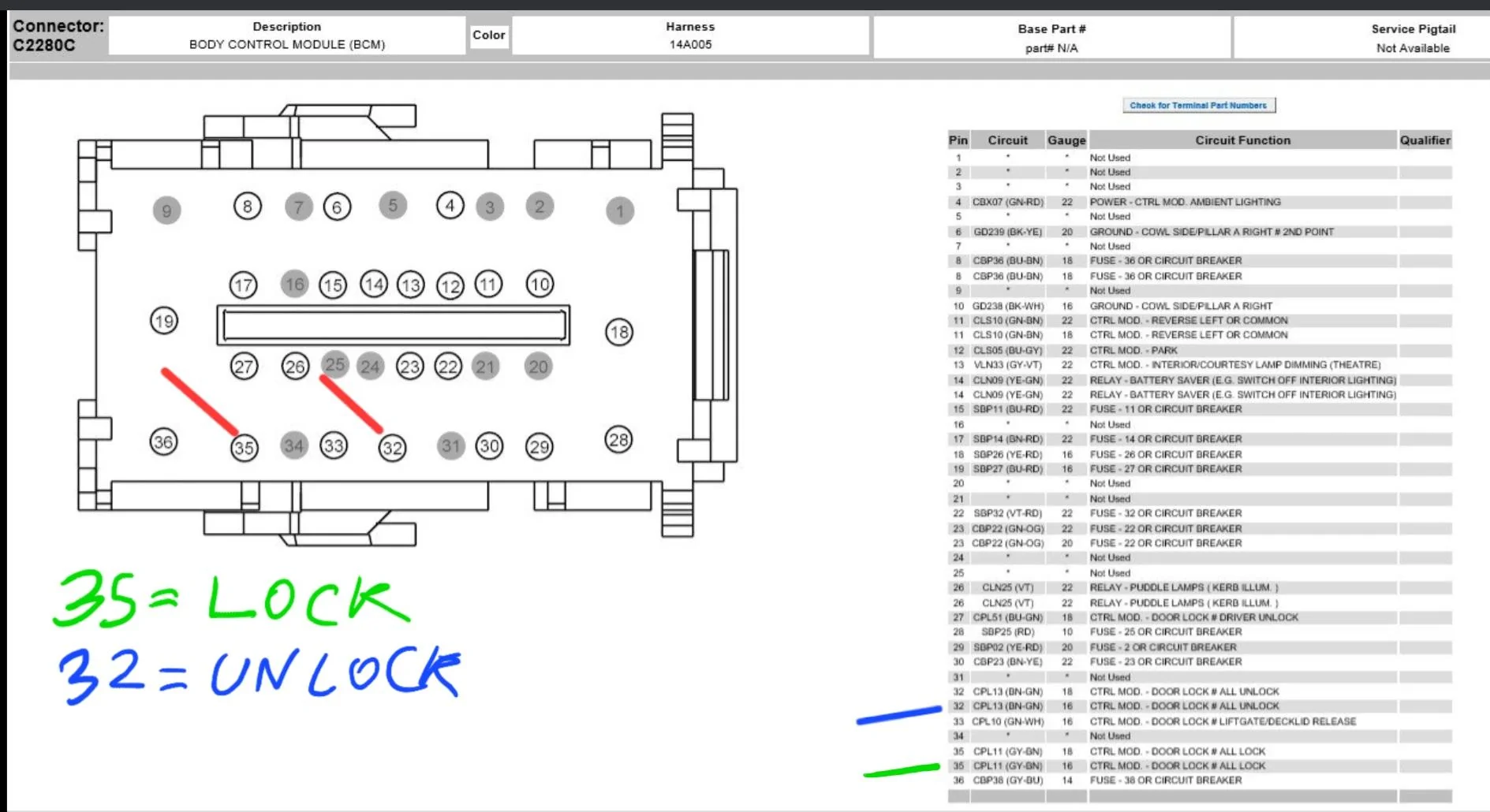

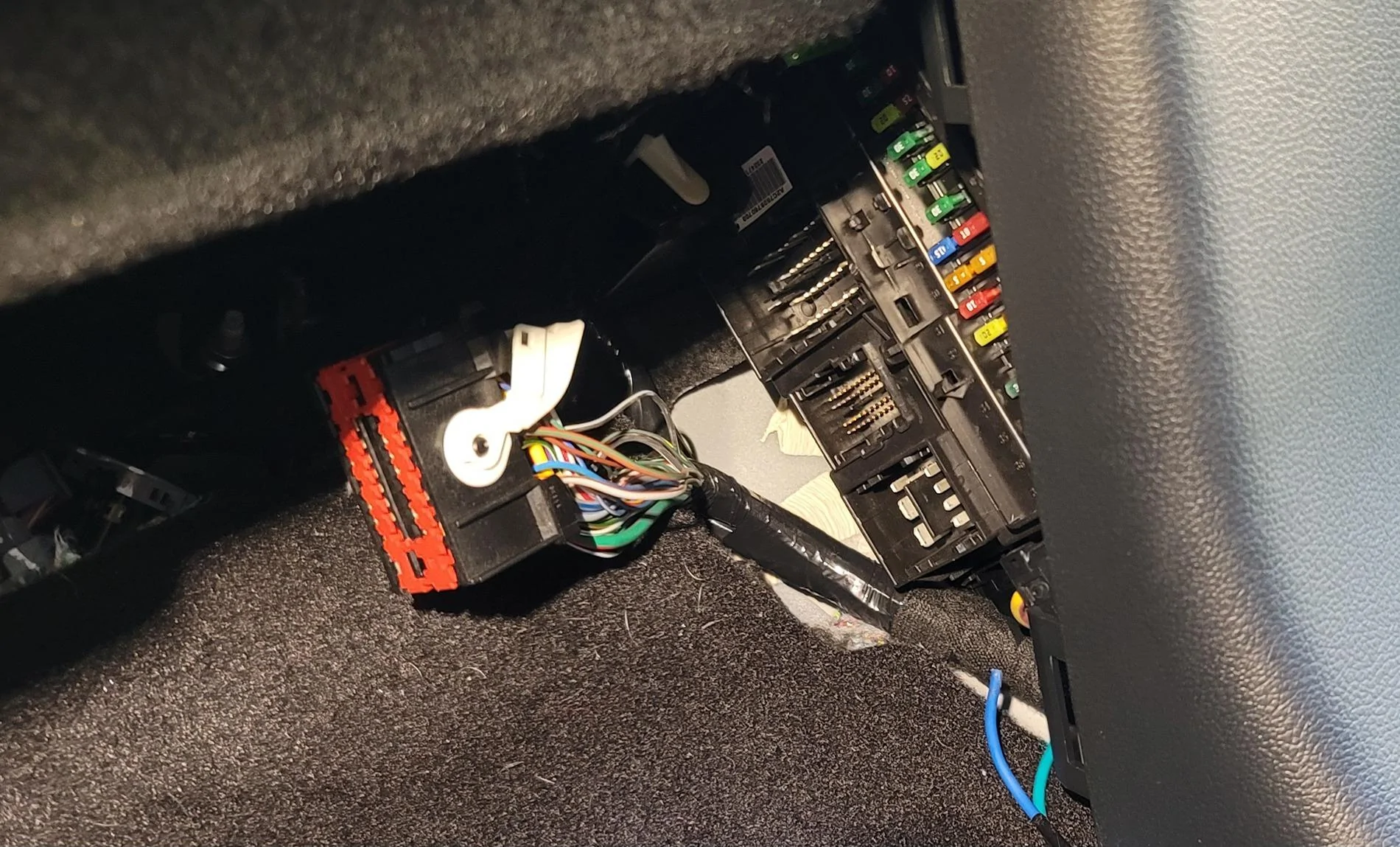

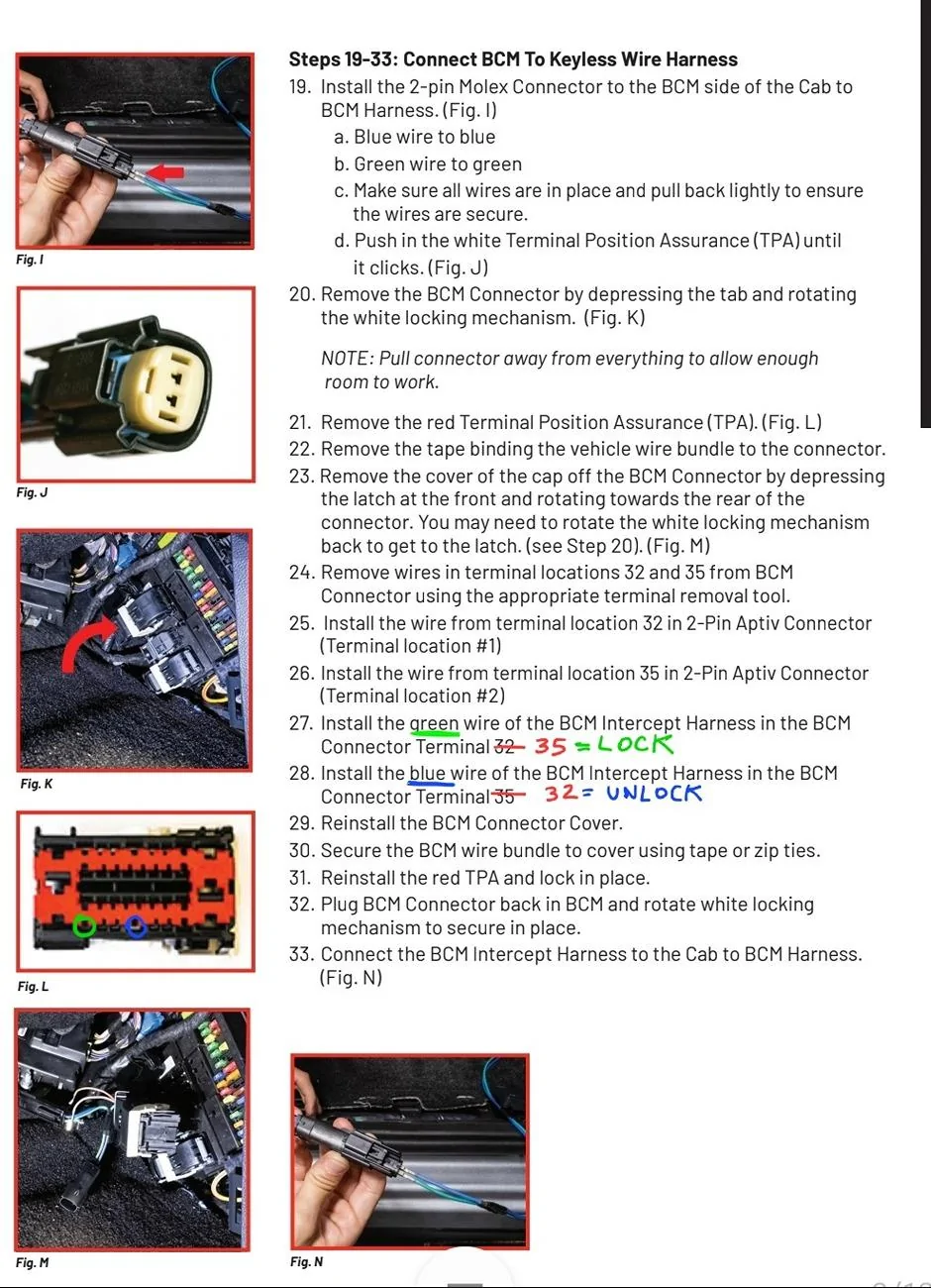

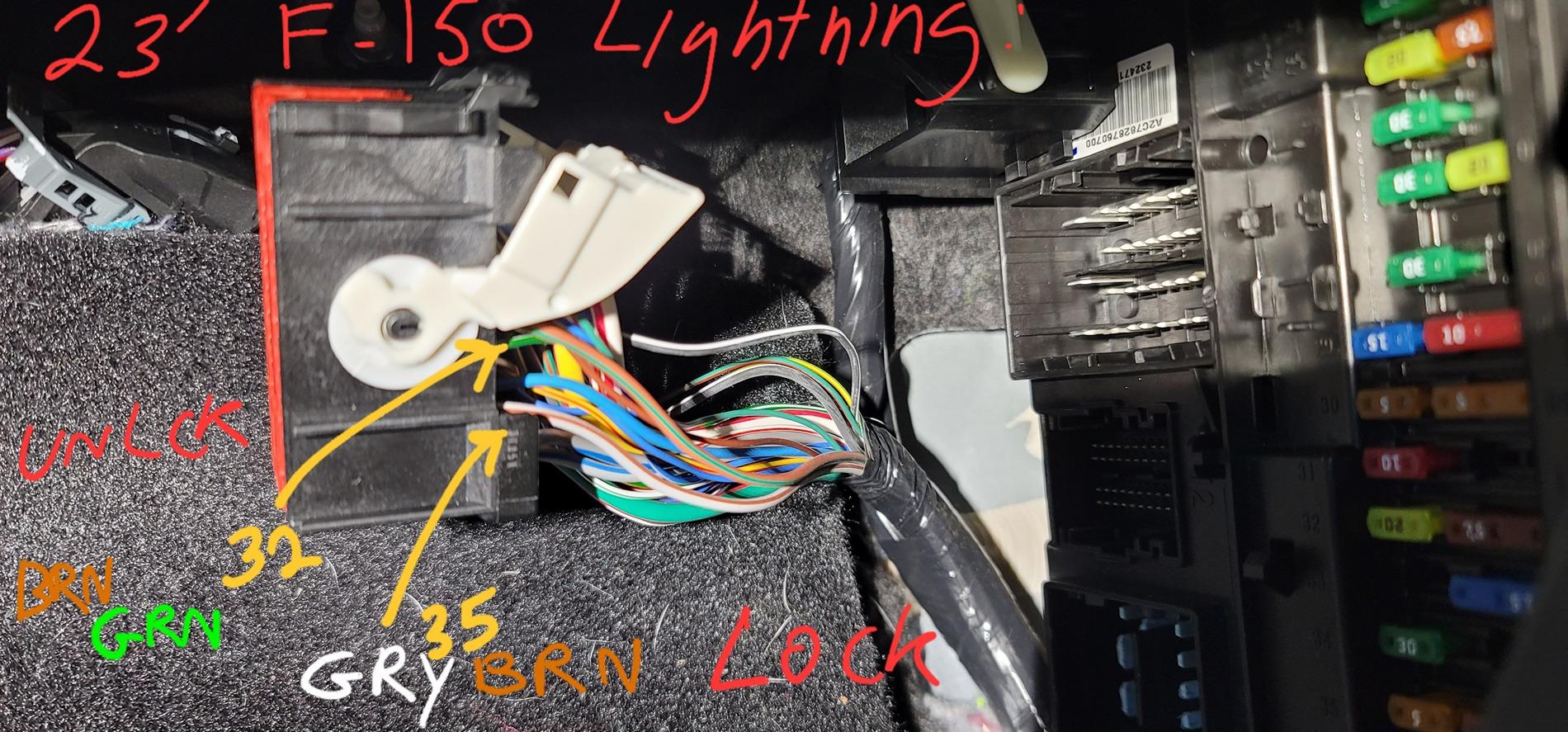

The Key Fob wire connection are made at BCM connector C2280C, pins 32 and 35.

Pin 32 = All Open (GRN/BRN)
Pin 35 = All Lock (GRY/BRN)

ALL LOCKED / UNLOCKED WIRES
