Tail Light Wiring Guide

[tsallen]

Has anyone found a breakdown of the tail light wiring? Halogen models specifically.

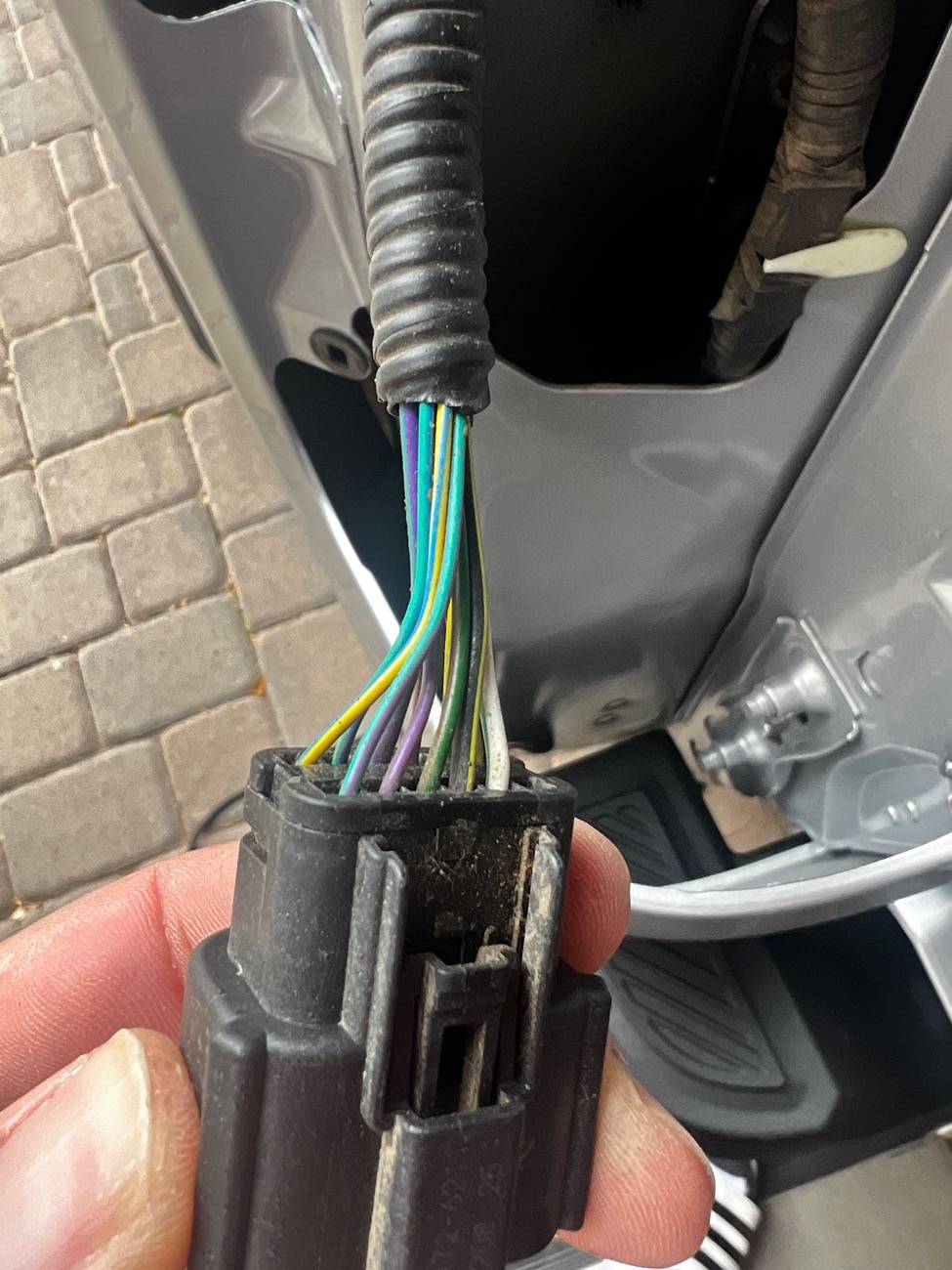

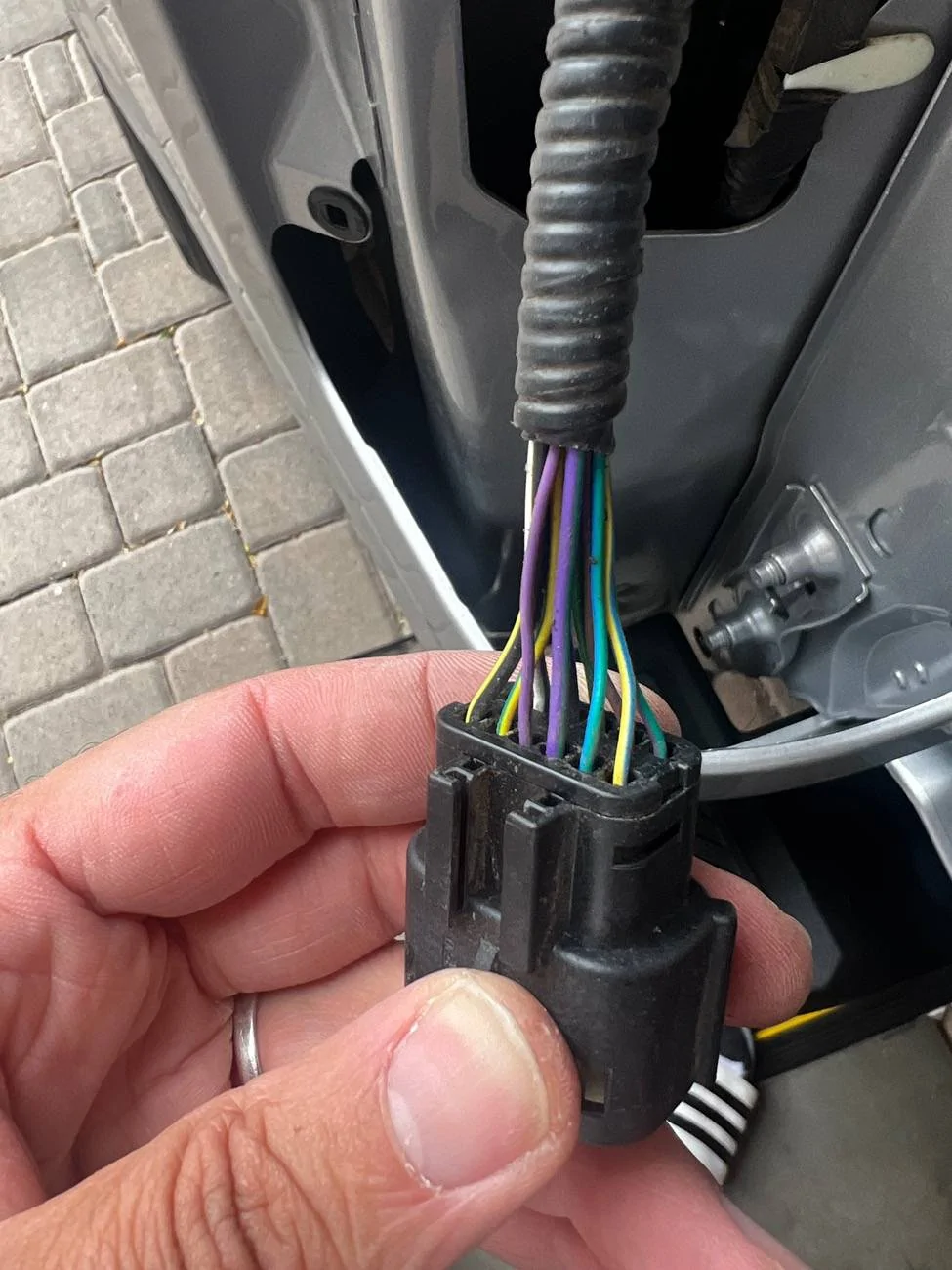

Trying to determine which wire controls the parking lights on the left side tail light harness.

I can find all the other f150 models except the non-led Lightning.



[FloridaBreen]

looking for pinout for tail light(s) connector for 24 Lightning Flash with max trailer tow



[bmwhitetx]

Has anyone found a breakdown of the tail light wiring? Halogen models specifically.

Trying to determine which wire controls the parking lights on the left side tail light harness.

I can find all the other f150 models except the non-led Lightning.

I thought the Lightning tail light was all LED. You saying some Lightnings have LED and others have halogen?



[Pioneer74]

I thought the Lightning tail light was all LED. You saying some Lightnings have LED and others have halogen?

All Lightning tail lights are the same. Same with the headlights. All LED. The different trims don't have different head and tail lights like the ICE trucks.



[bmwhitetx]

All Lightning tail lights are the same. Same with the headlights. All LED. The different trims don't have different head and tail lights like the ICE trucks.

That's what I thought. Not sure what @tsallen is talking about........



[tsallen]

I installed the 2024 F150 SENTINEL CREE LED TAILGATE BAR.

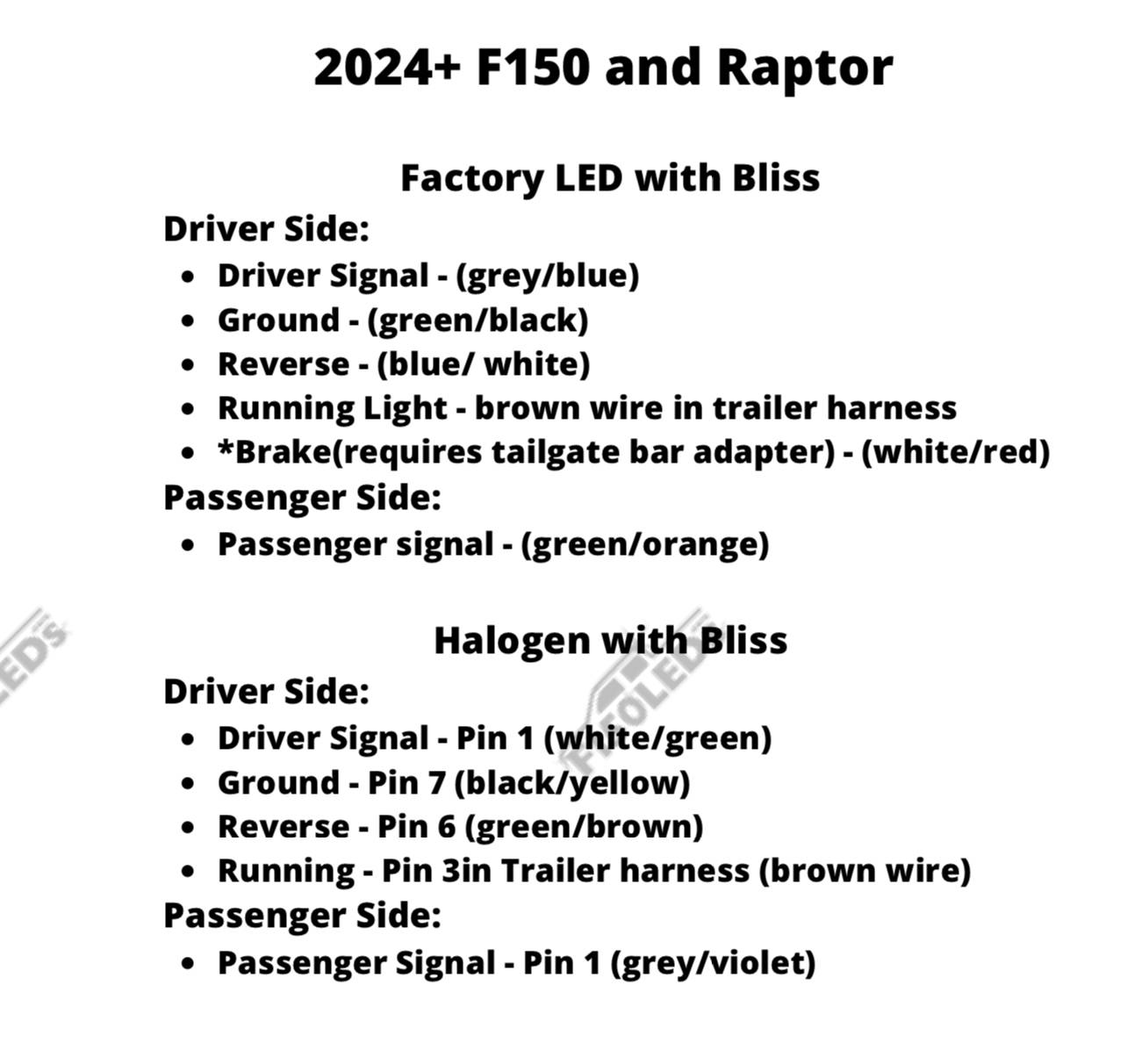

The instructions for wiring connections match the halogen vs the LED which made me question which was which.
I got it all hooked up now and had to tap into the trailer harness for running lights. It didn’t throw any code errors and allowed the light bar to function as advertised.
I just couldn’t find any wiring diagram for our trucks anywhere.



[bmwhitetx]

Yeah, those folks need to work on their directions. For one thing, it is BLIS with one "S".

So you found that the wire colors on our tail light match the Halogen colors in their directions?



[tsallen]

Yeah, those folks need to work on their directions. For one thing, it is BLIS with one "S".

So you found that the wire colors on our tail light match the Halogen colors in their directions?

Correct, for reverse, and turn. I just wanted to know what all the other wires in the harness when to.
It definitely does not match the LED version listed in those instructions.
