Dimensions of the rear part of the frame.

[vaiker]

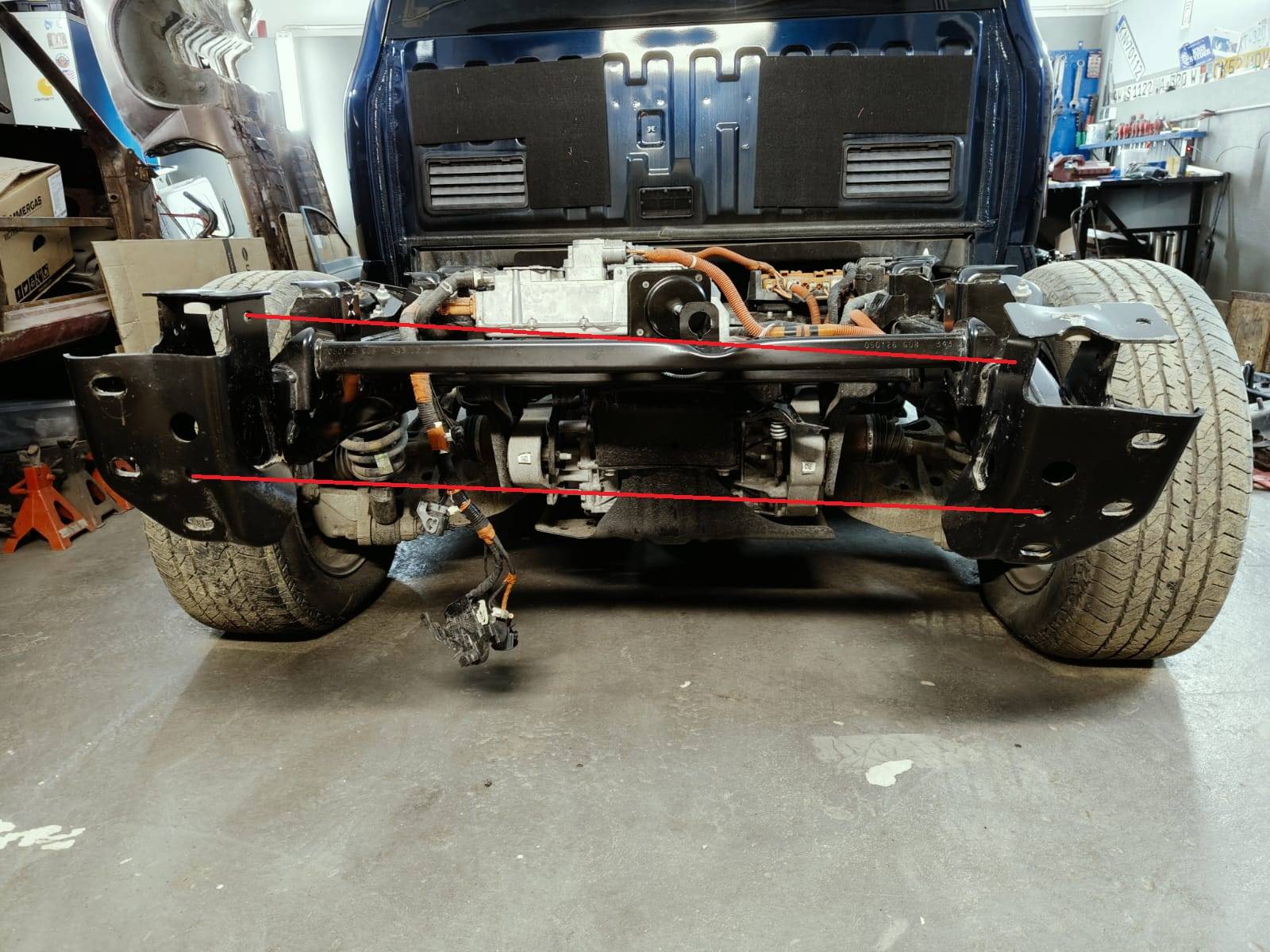

I have a lightning after a small collision, can someone measure the dimensions between these points for me? Or is there some document with these dimensions?



[bmwhitetx]

You don't say what got damaged - it looks like the right side rear of truck.

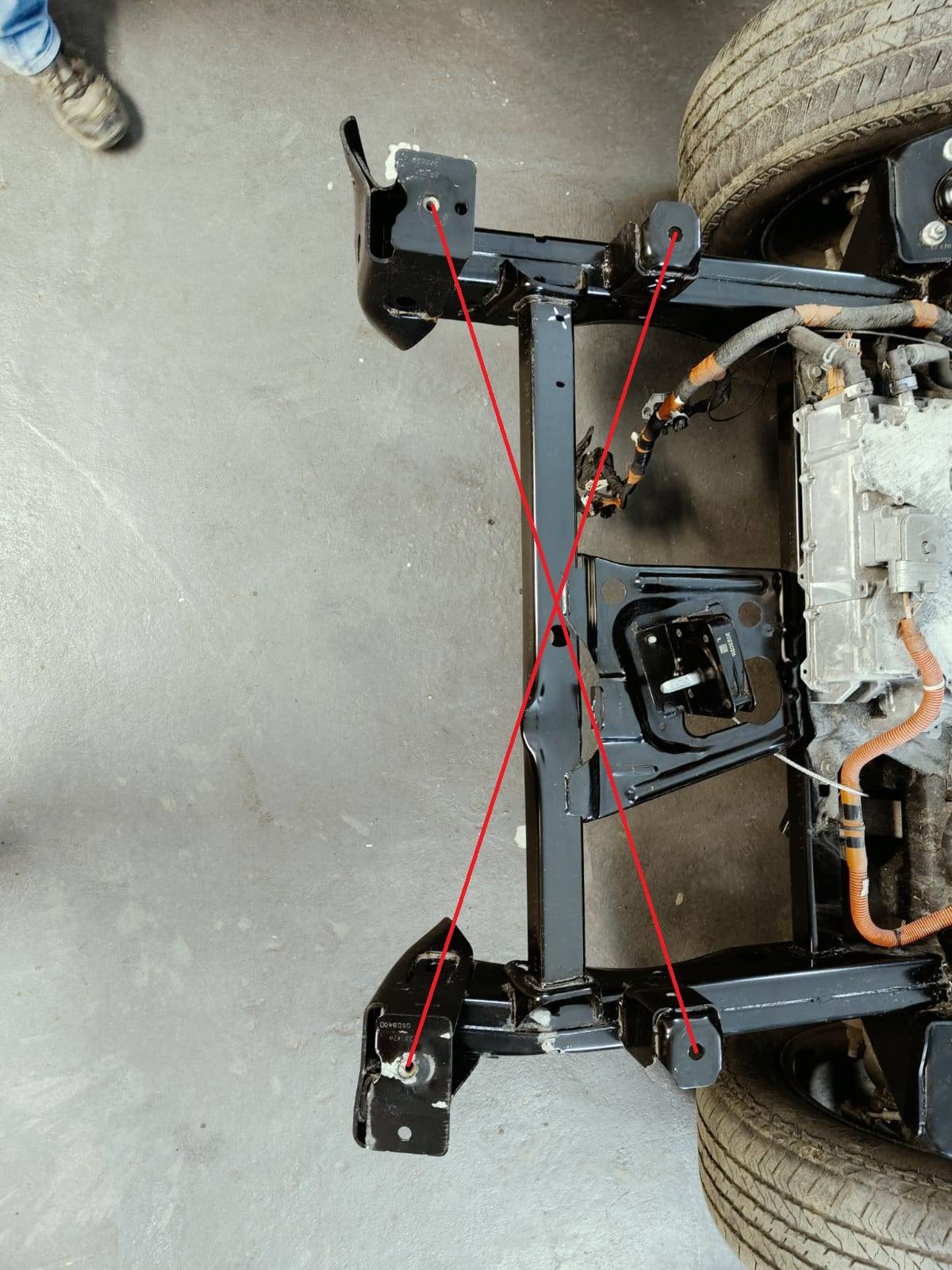

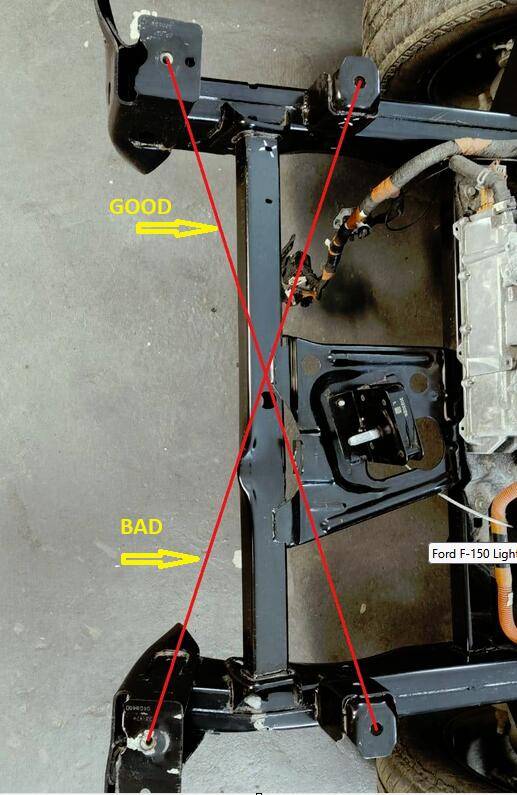

In your bottom photo, the two lines should be equal. Looks like the bottom left frame is bent at the very rear. So the line that goes top left to bottom right should be "good".

I would think again, assuming the damage is on the right side rear of truck, you can measure height on the left as "good".



[vaiker]

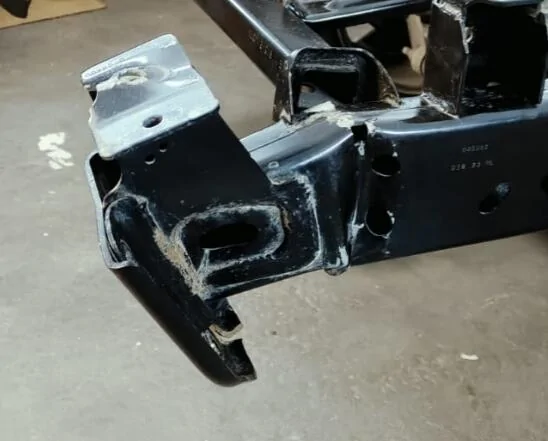

I need to fix the right rear frame of my car



[MaintGrl]

Well, not seeing it in person, I would venture to say that both segments should be identical . . .



[Grumpy2]

a small collision,

??



[jweggy]

@vaiker I have an unrelated question for you please. Does this truck you have apart here have the the 240V,7.2kW inverter that comprises the "Pro Power Onboard 9.6kW" factory installed option? If yes, can I please see some detailed pictured of the 7.2kw inverter and its associated connections? if not , does it look like the factory harness has unused connections that could potentially allow for this to be retrofitted? I am trying to determine if it is possible to retrofit the 7.2kw inverter into a lightning that does NOT have it from the factory.



[HOTAS]

His is certainly Pro Power 9.6.
I can see the big 7.2 inverter right there.
