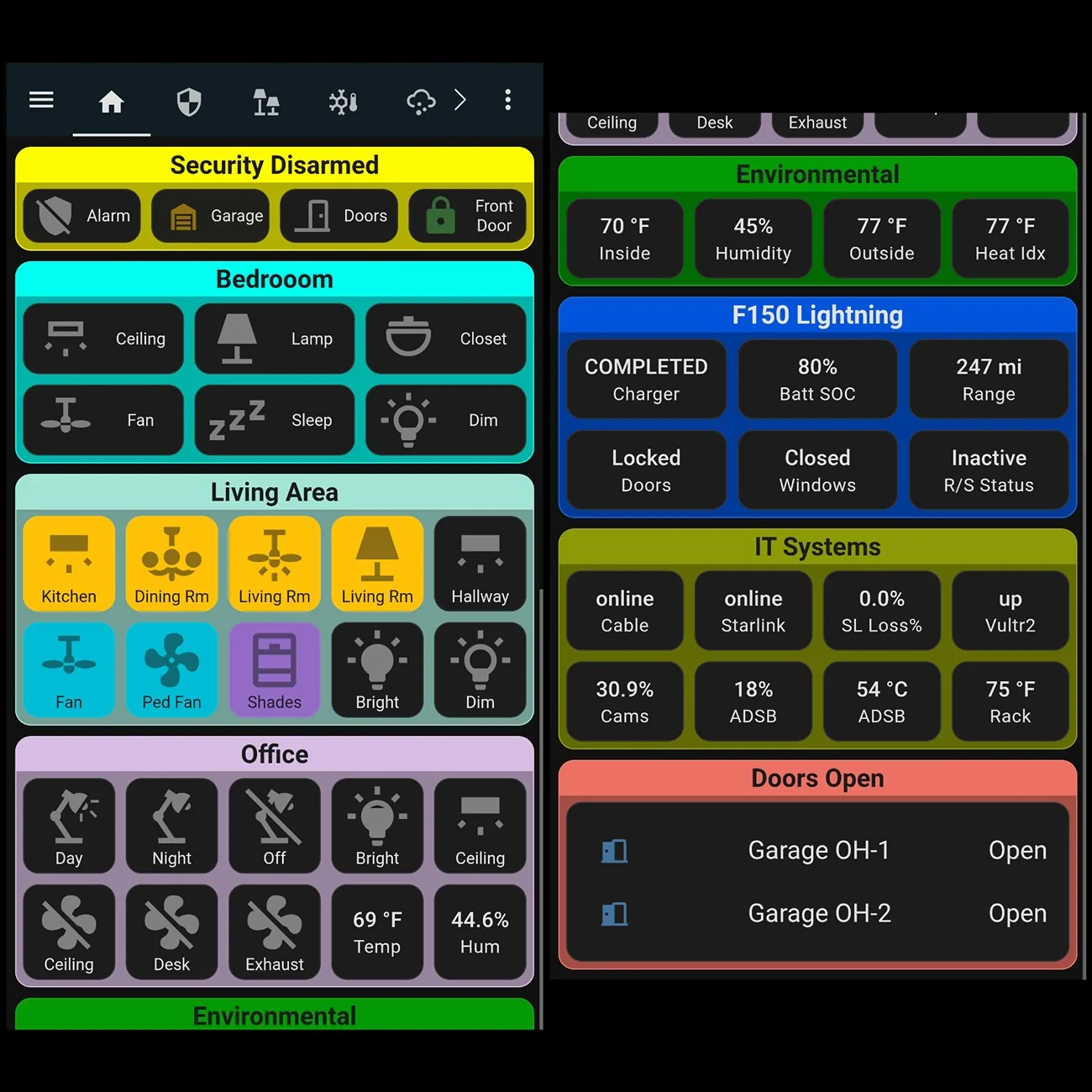

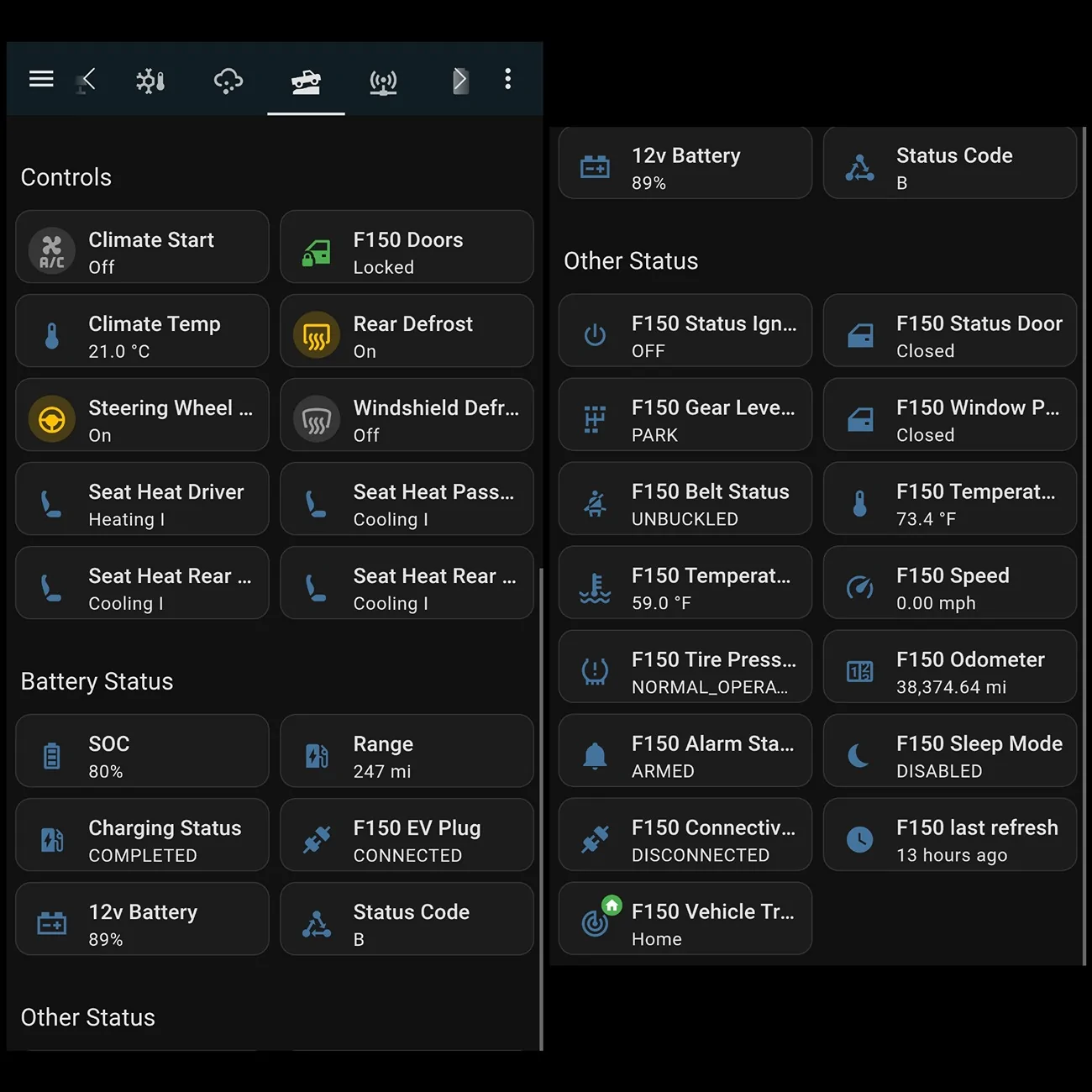

Home Assistant - Ford F150 Lightning Dashboard.

[Fistandantilus]

Here we go...

type: picture-elements
elements:
  - type: state-label
    entity: sensor.fordpass_1ft6w1ev5pwg06968_tirepressure
    attribute: frontLeft
    style:
      left: 80%
      top: 18%
      font-size: 100%
      font-weight: normal
      color: rgb(0,0,0)
  - type: state-label
    style:
      left: 23%
      top: 18%
      font-size: 100%
      font-weight: normal
      color: rgb(0,0,0)
    entity: sensor.fordpass_1ft6w1ev5pwg06968_tirepressure
    attribute: rearLeft
  - type: state-label
    style:
      left: 23%
      top: 82%
      font-size: 100%
      font-weight: normal
      color: rgb(0,0,0)
    entity: sensor.fordpass_1ft6w1ev5pwg06968_tirepressure
    attribute: rearRight
  - type: state-label
    style:
      left: 80%
      top: 82%
      font-size: 100%
      font-weight: normal
      color: rgb(0,0,0)
    entity: sensor.fordpass_1ft6w1ev5pwg06968_tirepressure
    attribute: frontRight
  - type: conditional
    conditions:
      - condition: state
        entity: sensor.fordpass_1ft6w1ev5pwg06968_doorstatus
        state: Closed
    elements:
      - type: icon
        icon: mdi:lock
        tap_action: none
        double_tap_action: none
        hold_action:
          action: call-service
          service: script.unlock_f150_lightning
        style:
          top: 7%
          left: 90.5%
          color: black
  - type: conditional
    conditions:
      - condition: state
        entity: sensor.fordpass_1ft6w1ev5pwg06968_doorstatus
        state_not: Closed
    elements:
      - type: icon
        icon: mdi:lock-open-variant
        tap_action: none
        double_tap_action: none
        hold_action:
          action: call-service
          service: script.lock_f150_lightning
        style:
          top: 7%
          left: 90.5%
          color: "#039be5"
  - type: conditional
    conditions:
      - entity: sensor.fordpass_1ft6w1ev5pwg06968_elvehcharging
        attribute: Plug Status
        state: CONNECTED
      - entity: sensor.fordpass_1ft6w1ev5pwg06968_elvehcharging
        attribute: Charge Type
        state_not: AC_BASIC
    elements:
      - type: icon
        icon: mdi:ev-plug-type1
        tap_action: none
        double_tap_action: none
        hold_action: none
        style:
          top: 20%
          left: 73%
          color: green
  - type: conditional
    conditions:
      - entity: sensor.fordpass_1ft6w1ev5pwg06968_elvehcharging
        attribute: Plug Status
        state_not: CONNECTED
    elements:
      - type: icon
        icon: mdi:ev-plug-type1
        tap_action: none
        double_tap_action: none
        hold_action: none
        style:
          top: 20%
          left: 73%
          color: red
  - type: state-label
    entity: sensor.fordpass_1ft6w1ev5pwg06968_lastrefresh
    prefix: "last update: "
    style:
      top: 5%
      left: 23%
      font-size: 80%
      font-weight: normal
      color: rgb(0,0,0)
  - type: state-label
    entity: sensor.fordpass_1ft6w1ev5pwg06968_elvehcharging
    attribute: chargingkW
    suffix: " kW"
    prefix: Charge@
    style:
      left: 72%
      top: 11%
image: /api/image/serve/e196197acd66e46ececf131dda8dc583/512x512
title: F-150 Lightning
grid_options:
  columns: 12
  rows: 5

Sponsored



[bmwhitetx]

Here we go...

    attribute: frontLeft

Thank you. It was capitalization. HA showed the attribute as FrontLeft, but they must capitalize the first letter. Using a small "f", e.g., frontLeft worked.
