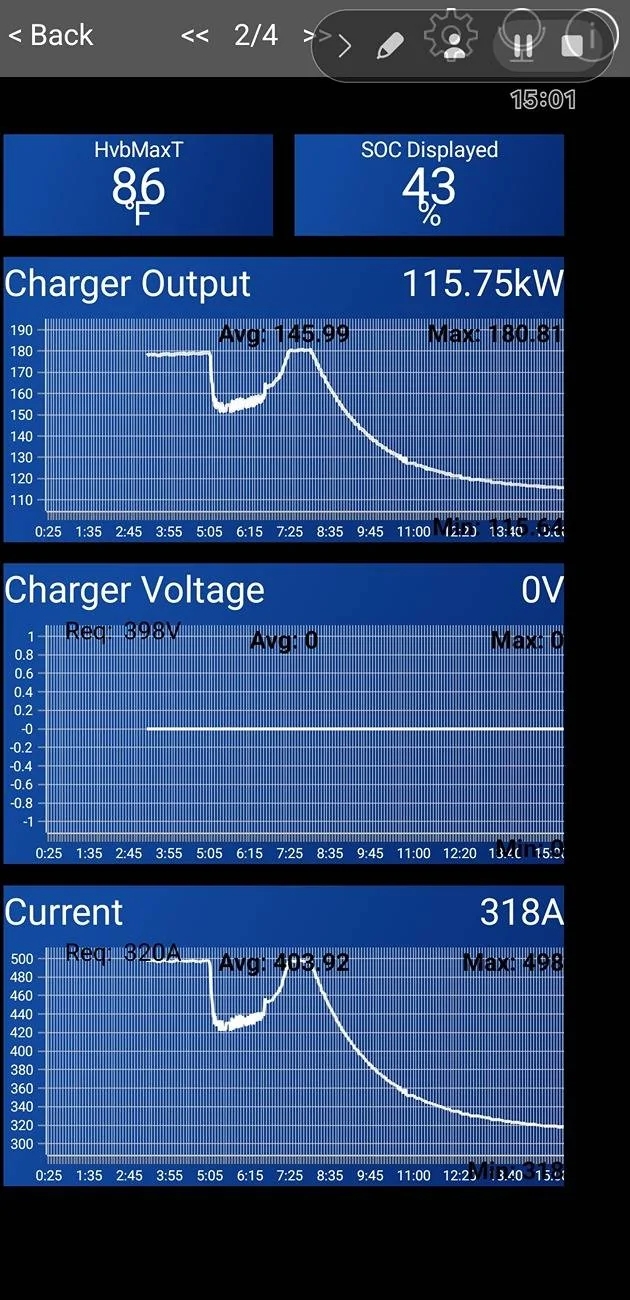

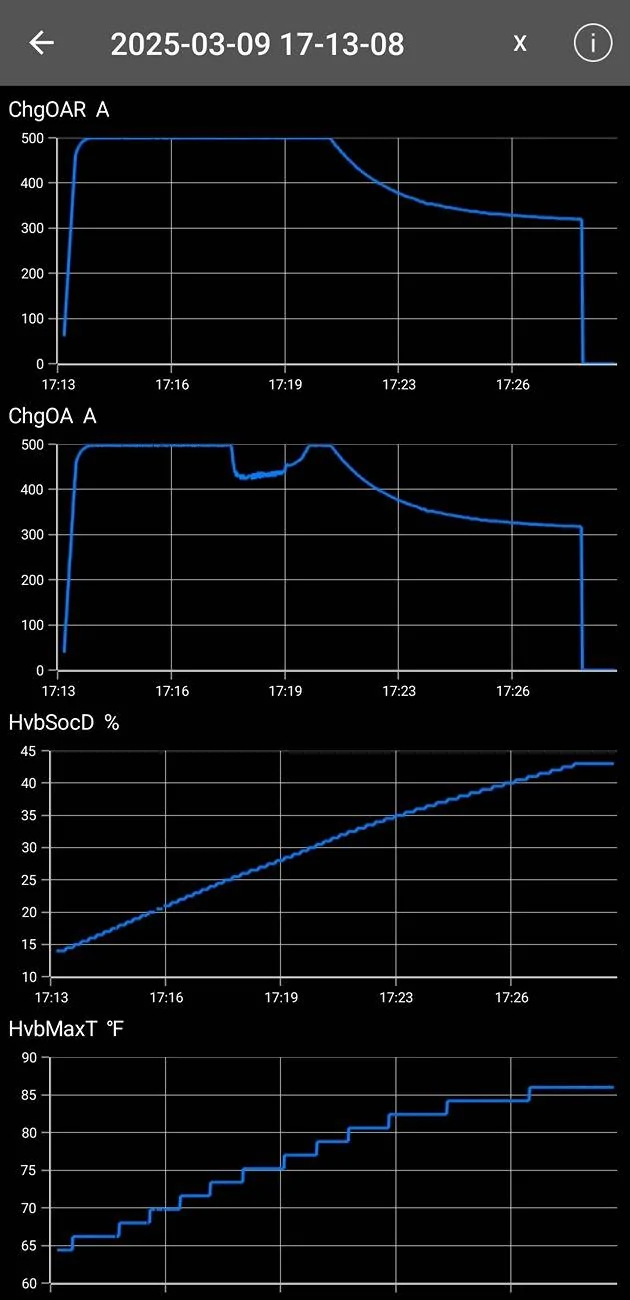

Just rewatched the 10% challenge from Out Of Spec last and looks like they were getting around 500 amps during the boost way back last April. Didn't show the entire charge but it peaked at 176kW v Tom's 182kW and finished with 39% (40.3kWh) after 15min v Tom's 42% (42.3kWh). 450 amps should've been in the 160's. Seems something was afoot way back and went mostly unnoticed besides the charging speed bragging threads.
Ford F-150 Lightning Charging / Highway Efficiency Logged In Our 10% EV Road Trip Challenge
Below voltages are based on Tom's video with theoretical max boost at 450 and 500 amps.

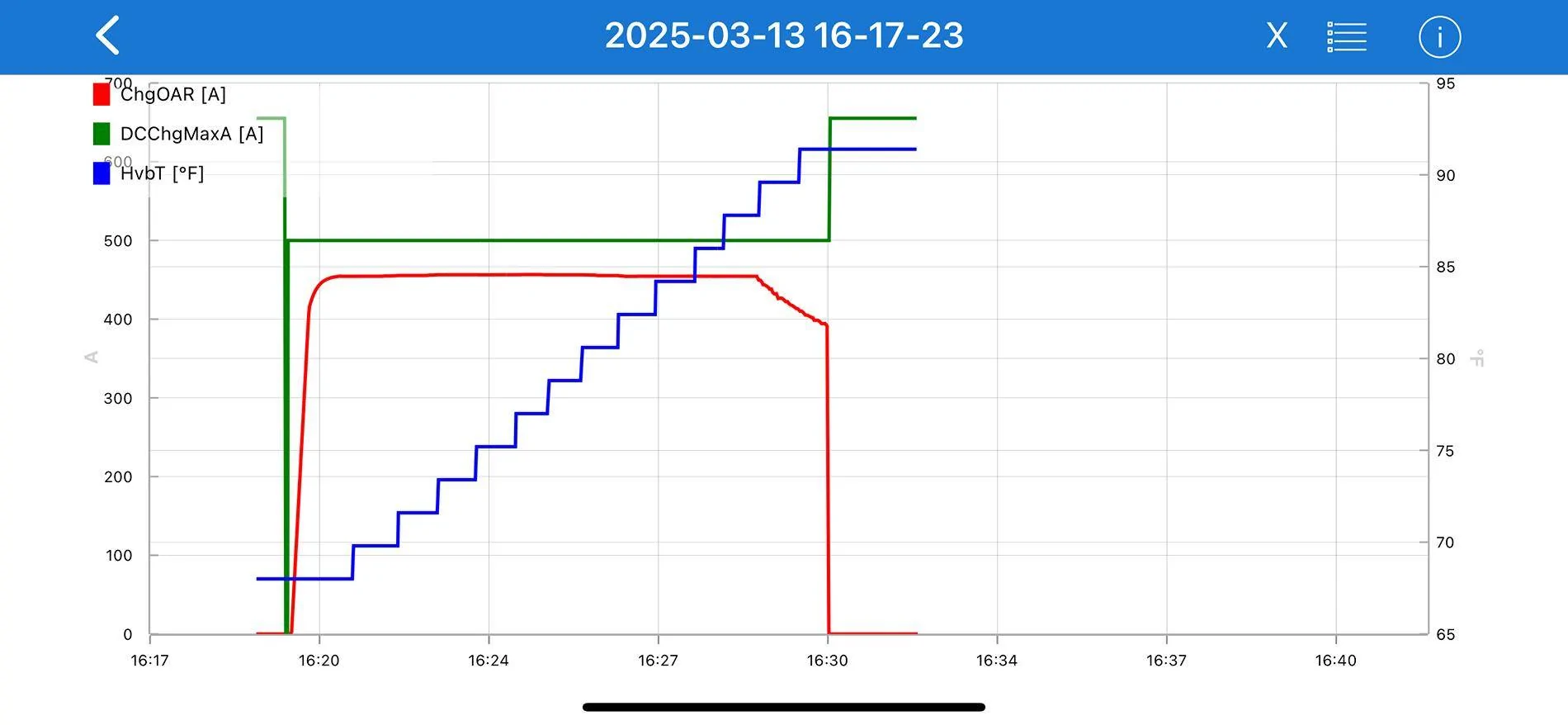

Then again Branden Flasch did a 10% challenge back in Octoberish and managed to get up to 40% (~37kWh delivered) with 450 amps and maxing out at 162kW
Not Good! - 2022 Ford F-150 Lightning XLT Extended Range 10% Road Trip Challenge
Ford F-150 Lightning Charging / Highway Efficiency Logged In Our 10% EV Road Trip Challenge
Below voltages are based on Tom's video with theoretical max boost at 450 and 500 amps.
| Battery % | Voltage | 450 a | 500 a |
| 10% | 338 | 152.1 | 169 |
| 15% | 356 | 160.2 | 178 |
| 20% | 362 | 162.9 | 181 |
| 25% | 364 | 163.8 | 182 |
| 30% | 365 | 164.25 | 182.5 |
| 35% | 367 | 165.15 | 183.5 |
| 40% | 370 | 166.5 | 185 |
| 45% | 370 | 166.5 | 185 |
| 50% | 372 | 167.4 | 186 |
Then again Branden Flasch did a 10% challenge back in Octoberish and managed to get up to 40% (~37kWh delivered) with 450 amps and maxing out at 162kW
Not Good! - 2022 Ford F-150 Lightning XLT Extended Range 10% Road Trip Challenge
