Thanks for clearing that up , Woo. I noticed the blue " tick lines " , but my eyes were always drawn to the little battery icon & I never made the connection between the lines being the remaining charge, even though its right next to the little battery that always draws my focus. Duh .


Buio

Member
First Name
Jon
Joined
Nov 24, 2023
Threads
0
Messages
13
Reaction score
7
Location
Majestic Buckeye AZ
Vehicles
2023 Tesla Mode YP 2023 I. silver lightning LR ER
Occupation
cabinets
I definately don't have the same graphics as Taxmanhog does , btw.


Buio

Member
First Name
Jon
Joined
Nov 24, 2023
Threads
0
Messages
13
Reaction score
7
Location
Majestic Buckeye AZ
Vehicles
2023 Tesla Mode YP 2023 I. silver lightning LR ER
Occupation
cabinets

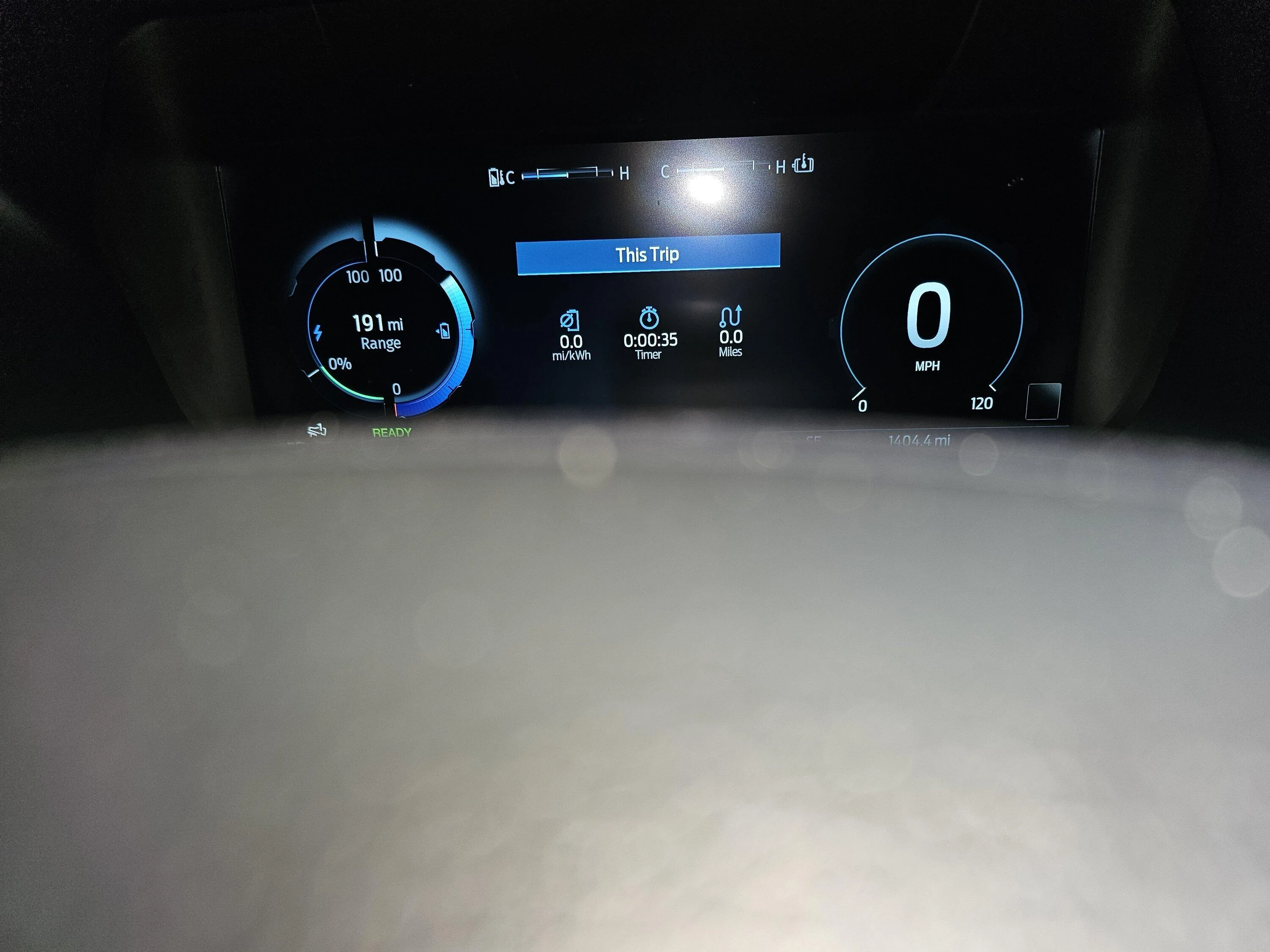

Can you snap a pic of your gauge cluster and let us see what you see? Maybe describe how it's different?
I feel so silly now that I never equated the blue lines with % of charge left. I also never noticed the 25% hash marks until everyone pointed them out.....

Ford F-150 Lightning SOC Display on Instrument Display 20231228_161249


Sponsored

invertedspear

Well-known member
Joined
Jan 18, 2023
Threads
17
Messages
1,157
Reaction score
1,609
Location
AZ, USA
Website
lightningcalcs.pages.dev
Vehicles
Antimatter Blue XLT (312A) ER, 2004 Jeep TJ
I feel so silly now that I never equated the blue lines with % of charge left.
It's easy to feel silly in a situation like this, but in truth it's a UI failure if the bars they put on the screen aren't intuitive to every user. Probably one of the reasons they added the SOC in OTA updates.


TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
174
Messages
12,691
Reaction score
13,400
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER & 2024 HD Road Glide CVO-ST
Occupation
Retired
I definately don't have the same graphics as Taxmanhog does , btw.
This version of the screen has data elements that are only visible when you're using Ford's built in navigation:

Top of screen shows the right turn warning in 250 ft.

The 30mi / 0mi also relates to navigation, at this moment I was navigating to my local EA DCFC station in Wrentham mass, I had just arrived so it is showing 0 additional miles to destination, with 30 miles left in the battery.

The GPS location of the EA terminals is not exactly correct at this location hence the 250 foot right turn alert, but I had literally already parked at the terminal.

Limited to 90% output to the motors due to low SOC of the HVB.

Hopefully you'll get the updates for SOC numeric display once Ford repackages the feature in an upcoming revised update.

Ford F-150 Lightning SOC Display on Instrument Display 1703796026905-


TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
174
Messages
12,691
Reaction score
13,400
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER & 2024 HD Road Glide CVO-ST
Occupation
Retired
And how did you arrive at the 1.2 m/kWh figure in your just previous post, @TaxmanHog?
I had to go look at my travel logs and G-maps history, this was a trailer hauling trip to Salem NH and back to home base, after we were done moving a bar into our MC club house, I took the truck to EA for a 80% top-up (back when tolling was by the minute and very cheap, no longer the case after August of 2023.

Actually happy that I was getting 1.2 MPK on that run considering the load.

This trip also involved a mid trip charging stop on the way back for about 15 minutes

Last edited:

Sponsored

USA EV

Well-known member
Joined
Mar 16, 2023
Threads
6
Messages
179
Reaction score
219
Location
USA
Vehicles
2023 Lightning Pro, 2015 FIAT 500e
Is this only for Sync 4A verticals screen trucks?

Fun fact. My Pro hasn’t had any OTA updates since March. Maybe someday.
Yikes! Mine from February started off rough due to a known modem issue, but since it eventually got the first update in March/April that fixed the modem it's been doing nicely. You might want to contact @Ford Motor Company, to see if they can look into it for you.


mattballew

New member
First Name
Matthew
Joined
Feb 1, 2024
Threads
0
Messages
3
Reaction score
1
Location
North Carolina
Vehicles
2022 F150 Lightning Platinum
Is it possible there’s a setting that disables/enables this?
my 2022 still doesn’t show % unless I go to the calm screen


jmc6020

Well-known member
Joined
Feb 12, 2023
Threads
12
Messages
143
Reaction score
193
Location
New Hampshire
Vehicles
2023 F-150 Lightning Lariat
Is it possible there’s a setting that disables/enables this?
my 2022 still doesn’t show % unless I go to the calm screen
No there isn't a setting. Just have to wait until Ford pushes the specific update to your truck

  • Like
Reactions: GDN

TaxmanHog

Moderator
Moderator
First Name
Noel
Joined
Jan 19, 2022
Threads
174
Messages
12,691
Reaction score
13,400
Location
SE. Mass.
Vehicles
2022 Lightning Lariat-ER & 2024 HD Road Glide CVO-ST
Occupation
Retired
Is it possible there’s a setting that disables/enables this?
my 2022 still doesn’t show % unless I go to the calm screen
When you get update 6.8.0, the SOC will appear on the battery graphs in the detailed trip data screens


cal

Well-known member
First Name
Cal
Joined
Jun 26, 2023
Threads
5
Messages
254
Reaction score
164
Location
Battle Ground WA
Vehicles
2022 Lightning, Tesla Model S Plaid
Occupation
retired
This version of the screen has data elements that are only visible when you're using Ford's built in navigation:

Top of screen shows the right turn warning in 250 ft.

The 30mi / 0mi also relates to navigation, at this moment I was navigating to my local EA DCFC station in Wrentham mass, I had just arrived so it is showing 0 additional miles to destination, with 30 miles left in the battery.

The GPS location of the EA terminals is not exactly correct at this location hence the 250 foot right turn alert, but I had literally already parked at the terminal.

Limited to 90% output to the motors due to low SOC of the HVB.

Hopefully you'll get the updates for SOC numeric display once Ford repackages the feature in an upcoming revised update.

So what is the SOC in this pic. I see no % on the left part of the screen

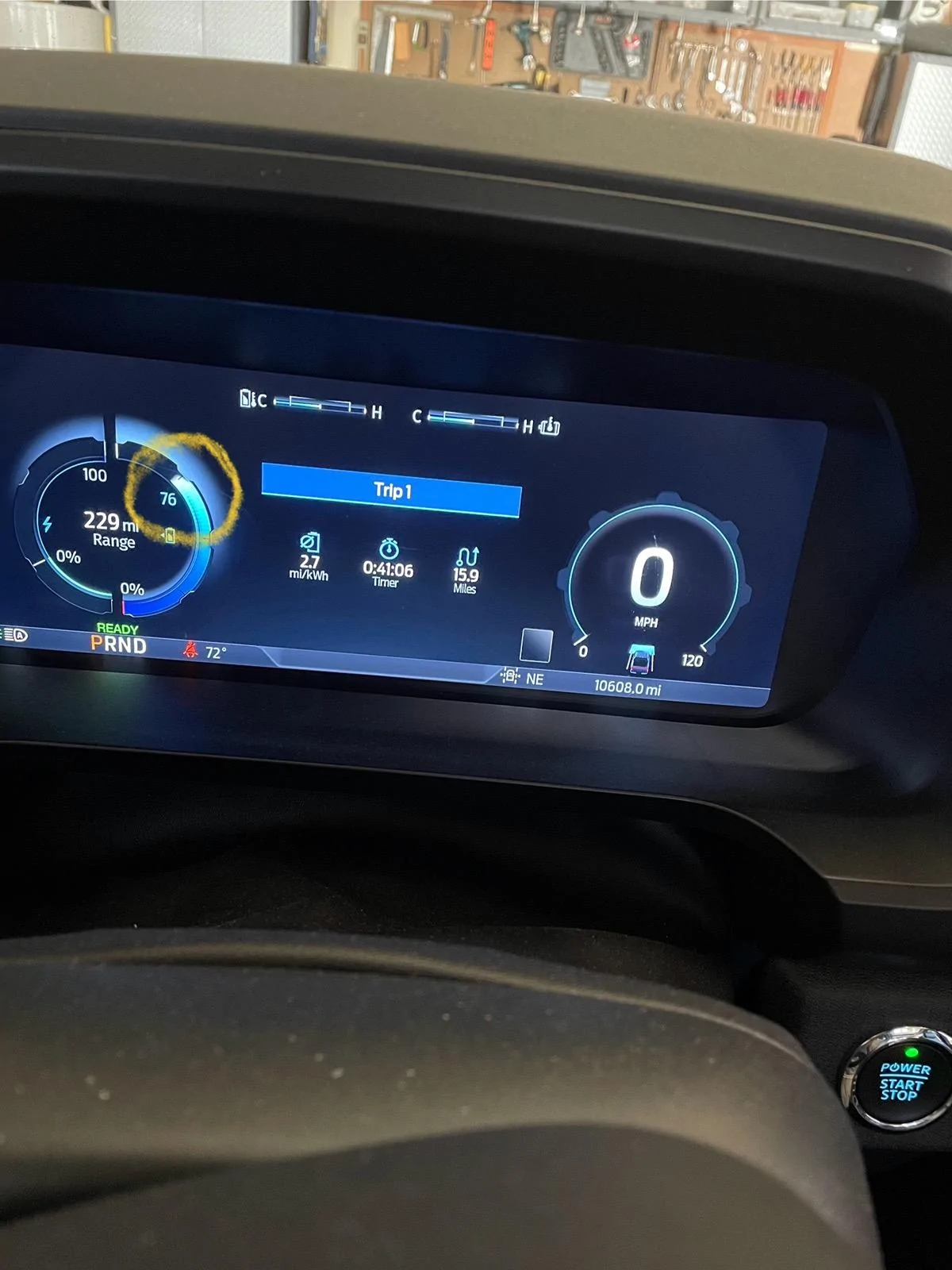

Is this the part you guys are referring to? Indicating I have 76% of my battery left.
