Door Sticker Thread (GVWR / Payload / Tire and Loading Figures Label). Help and Add Yours!

[Skidrowe]

How much deviation can one expect from the sticker if the dealership replaces the air with 100% nitrogen and charges $200 for it?

/sarcasm (since this is the internet)

Sponsored



[Gerrard155]

I wonder if someone could post a lariat payload sticker without the moonroof. I'm sure it adds a lot of weight.

The pano sunroof adds 64lbs to the weight of the truck (compared to no sunroof)-not as much as you might think but certainly not a negligible amount. Back when I bought my 2015 this info was released on official Ford literature, but unfortunately all those links appear to be dead (Ford probably cleared its website of this old info). Here is an old forum link that discusses this-

https://www.f150forum.com/f118/moonroof-weight-356247/

I have to say I am impressed by the payloads-these appear to be better than most of the ICE equivalent trucks I have seen (I.E. Lariat loaded ICE vs Lariat loaded EV)-I was expecting less payload, not more. An awesome development, thanks to all for sharing!



[Easycamper]

Someone in my area took delivery of their XLT ER with Max Tow and he says the sticker shows 1900 lbs. He has the spray in bedliner. So I’m thinking without the bedliner his payload would be about 1945. Pretty good considering my 2015 SuperCab has 2019 lbs.



[Carminus]

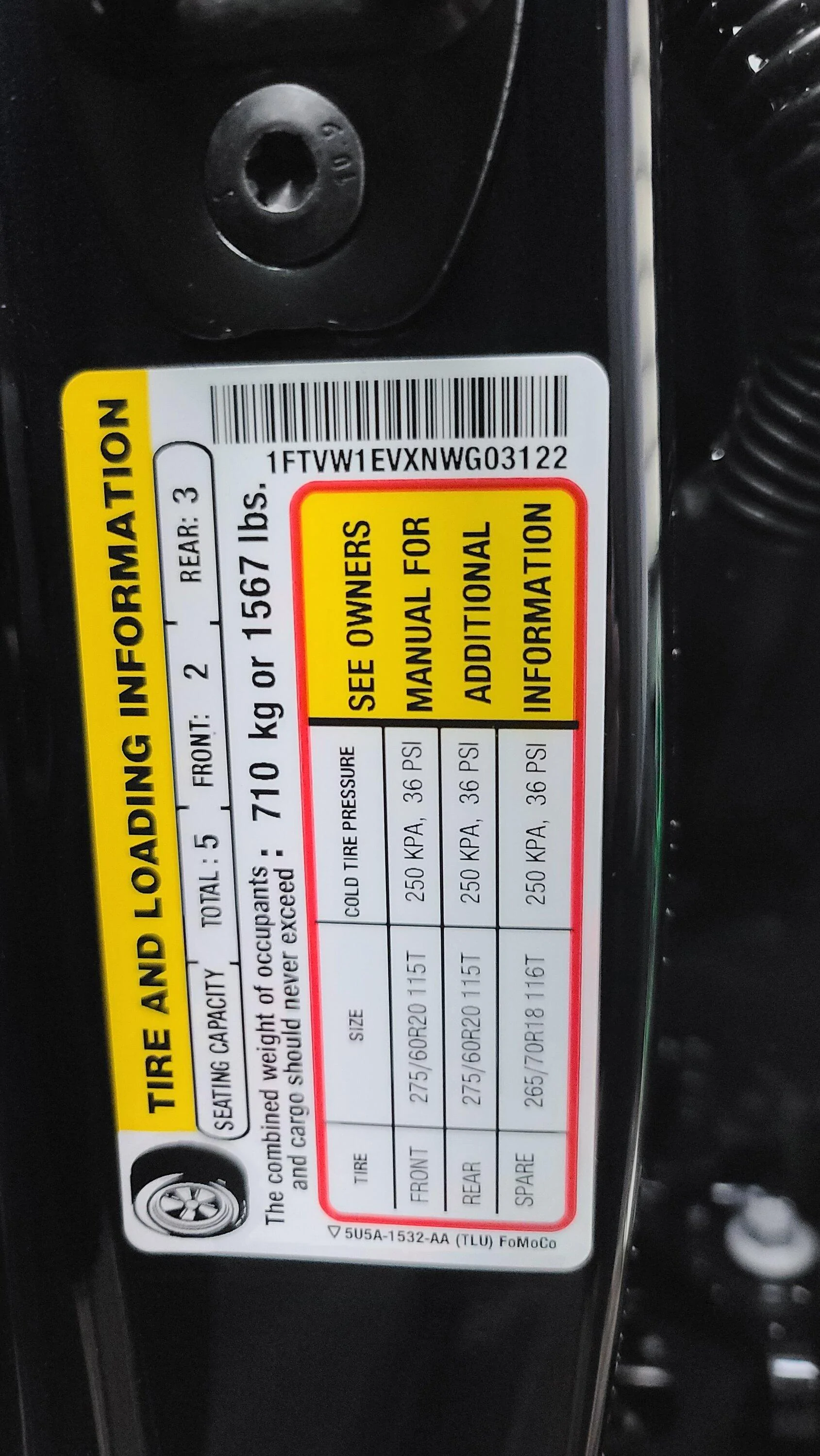

Here is mine:

I have AT tires and spray in liner (Lariat ER). Maybe I should of chosen the all season.



[SmokingtheMeats]

Here is mine:

I have AT tires and spray in liner (Lariat ER). Maybe I should of chosen the all season.

Why do you feel this way?



[GrokTime]

What I am I missing about the Lariat ER that makes its payload much lower than some other extended range models?



[p52Ranch]

What I am I missing about the Lariat ER that makes its payload much lower than some other extended range models?

The All Terrain tires reduce the GVWR and therefore payload by 150 pounds. For some reason the All Season 20” tires get a 42 PSI rating where the All Terrain get a 36 PSI rating and the lower GVWR



[piratefan2]

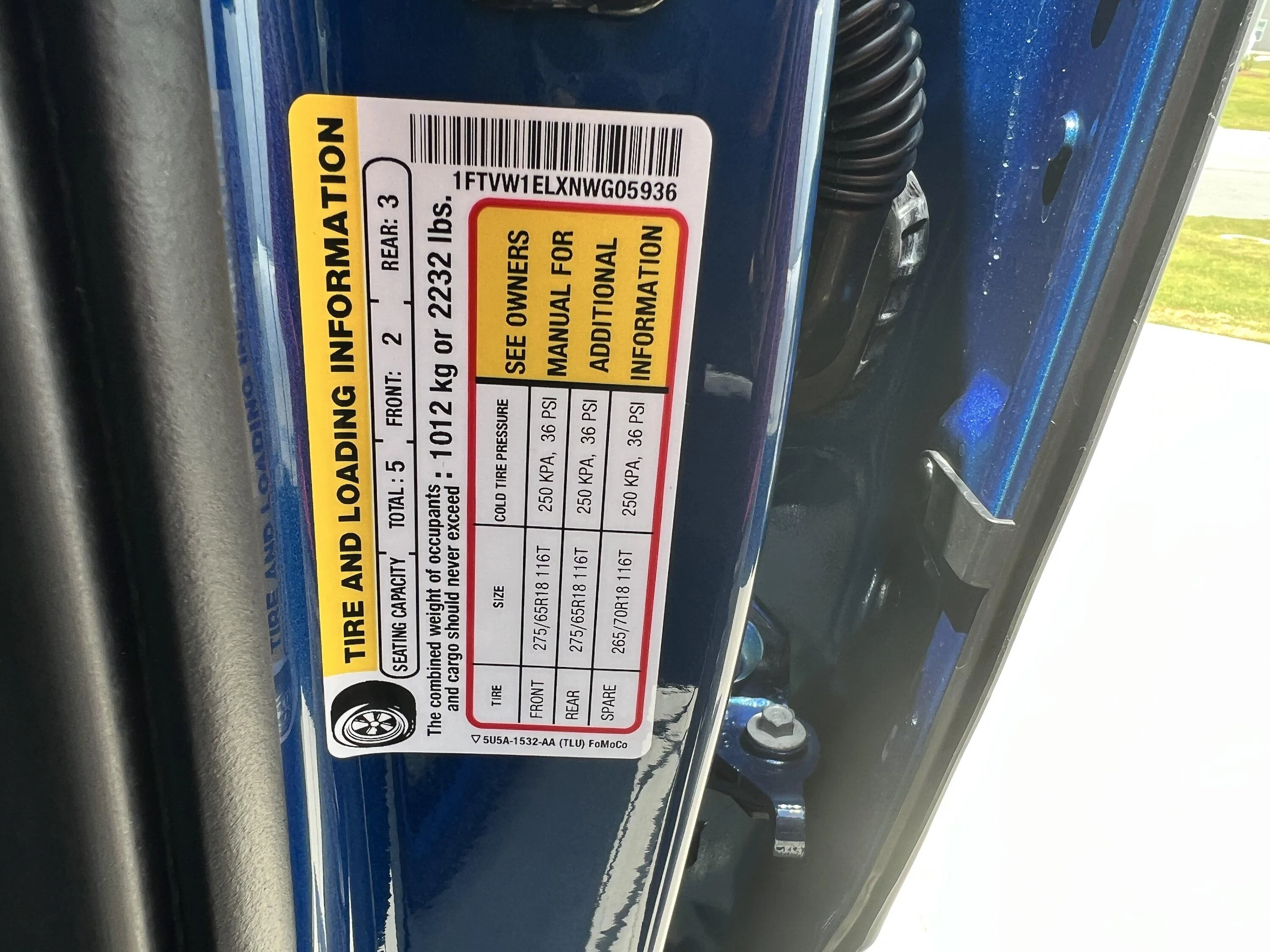

Pro SR with no options…2,232.



[GoodSam]

This thread also has an XLT SR 20" at 1937# and a Pro SR no options at 2232#--just added above!:
https://www.f150lightningforum.com/forum/threads/payload-and-gvwr-on-my-lightning-sr-pro.11356/



[GunRack]

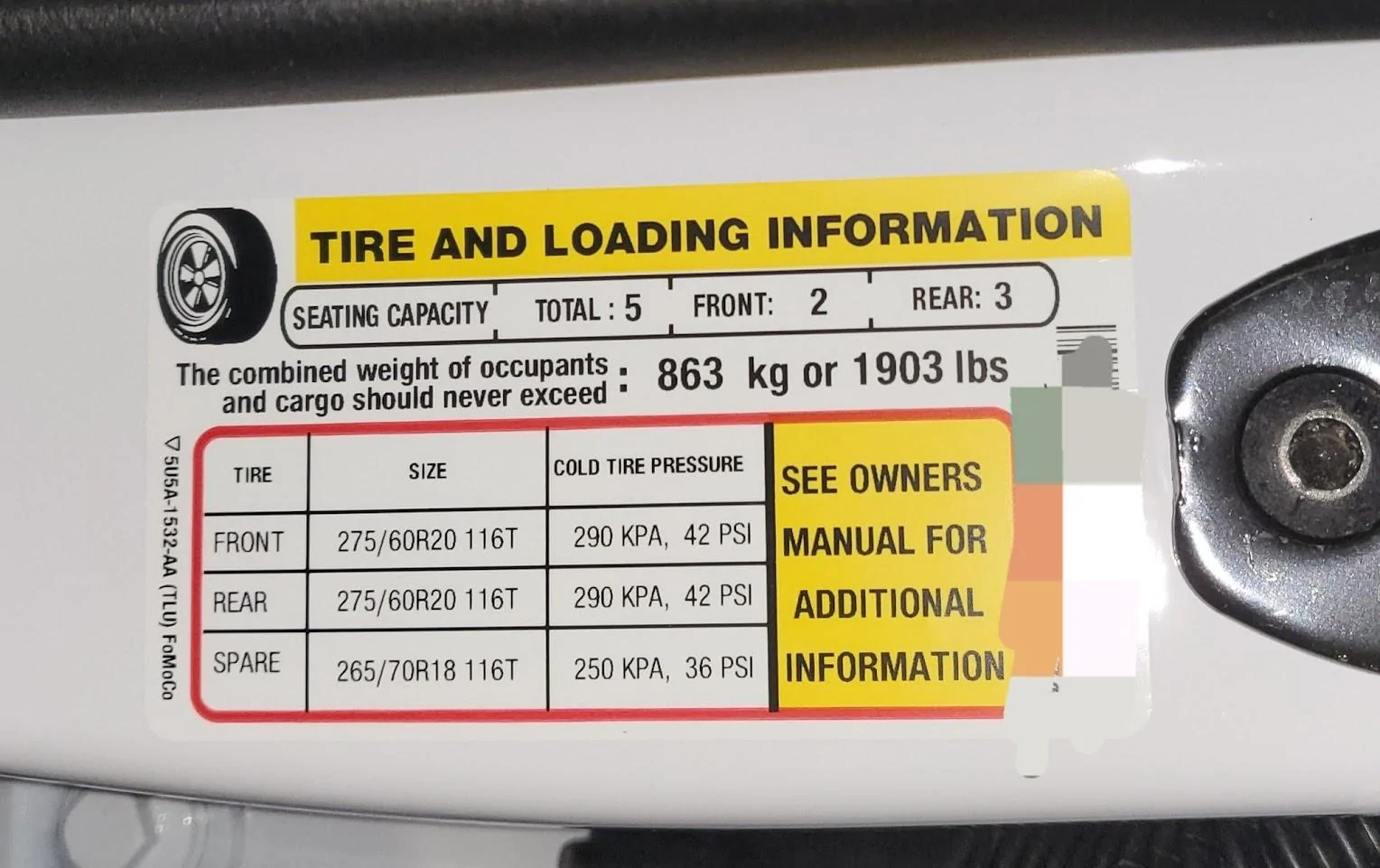

2022 Ford F-150 Lightning XLT Standard Range (312A)

20" wheels, Max Tow, factory Spray in Liner



[hturnerfamily]

interesting how your spare is only a 18" wheel, while your truck's wheels are 20's



[Gerrard155]

interesting how your spare is only a 18" wheel, while your truck's wheels are 20's

This has been a standard practice on F150’s for years. The overall diameter of the wheel is the same, so it creates no issues.



[p52Ranch]

My XLT SR with Max Tow, Tow Technology and spray in Bedliner arrived today. Here is the window sticker for it. GVWR is 8250.

Compare to my Dealers Mannequin unit a Lariat ER with All Season Tires, Max Tow, Tow Technology and spray in Bedliner. GVWR is 8550. Nearly 300 pounds lower payload capacity.
