Dreaded camera fault

OP
OP
awilli1010

awilli1010

Well-known member
First Name
Dave
Joined
Dec 1, 2020
Threads
11
Messages
226
Reaction score
208
Location
SE Michigan
Vehicles
22 lightning lariat er, 22 maverick, 98 FLHT, and a schwinn bicycle.
Occupation
Retired Army, retired Government employee.

Jasin

Well-known member
First Name
Jasin
Joined
Jul 7, 2022
Threads
1
Messages
60
Reaction score
35
Location
Virginia
Vehicles
2022 Lightning ER Lariat
I understand the FDRS APIM 360 Configuration button is not working but it is literally a one digit change in FORScan

OP
OP
awilli1010

awilli1010

Well-known member
First Name
Dave
Joined
Dec 1, 2020
Threads
11
Messages
226
Reaction score
208
Location
SE Michigan
Vehicles
22 lightning lariat er, 22 maverick, 98 FLHT, and a schwinn bicycle.
Occupation
Retired Army, retired Government employee.
I understand the FDRS APIM 360 Configuration button is not working but it is literally a one digit change in FORScan
Could you sent the forscan address? I want to ensure I was using the correct one.


Jasin

Well-known member
First Name
Jasin
Joined
Jul 7, 2022
Threads
1
Messages
60
Reaction score
35
Location
Virginia
Vehicles
2022 Lightning ER Lariat
Could you sent the forscan address? I want to ensure I was using the correct one.
APIM (as built)

7D0-01-04

xxxx xxx3 xx--

Change this character from a 2 to a 3

I don't have my truck pulled up so I can't give you the Checksum (the new last 2 characters) but it will fix it after the warning or they can pull it up on any truck in the lot

Last edited:

Sponsored
OP
OP
awilli1010

awilli1010

Well-known member
First Name
Dave
Joined
Dec 1, 2020
Threads
11
Messages
226
Reaction score
208
Location
SE Michigan
Vehicles
22 lightning lariat er, 22 maverick, 98 FLHT, and a schwinn bicycle.
Occupation
Retired Army, retired Government employee.
APIM (as built)

7D0-09-04

Change this character from a 2 to a 3

xxxx xxx3 xx--

I don't have my truck pulled up so I can't give you the Checksum (the new last 2 characters) but it will fix it after the warning or they can pull it up on any truck in the lot
that the same one I used. Thanks.


Whammy Bar

Well-known member
Joined
May 30, 2022
Threads
22
Messages
529
Reaction score
809
Location
SoCal
Vehicles
1971 F100 + 2022⚡Lariat ER
Occupation
Electrician
I took my 22 lariat er in today for the front parking sensor and frunk csp’s. I now have the small 360 camera issue. The service manager informed me that they can’t get the camera back to its original size even after loading the apim and doing step 11. He took me into the service area and the tech showed that me it wouldn’t take. It was throwing a “configuration not applicable to this vehicle” fault. They escalated the problem to a field service tech. Has anyone seen this before? Tia!
Then tell them to buy the vehicle back. FUCK!


rugedraw

Well-known member
First Name
Javier
Joined
Dec 14, 2021
Threads
4
Messages
1,300
Reaction score
1,351
Location
Miami
Vehicles
2021 Ford F150 Platinum FX4 EcoBoost; 1990 Ford Mustang LX 5.0 coupe
Occupation
Auto Sales
APIM (as built)

7D0-01-04

Change this character from a 2 to a 3

xxxx xxx3 xx--

I don't have my truck pulled up so I can't give you the Checksum (the new last 2 characters) but it will fix it after the warning or they can pull it up on any truck in the lot
FORScan will correct the checksum on its own.

that the same one I used. Thanks.
Wait, you are saying you did this and it didn't fix the issue? This would be a first.

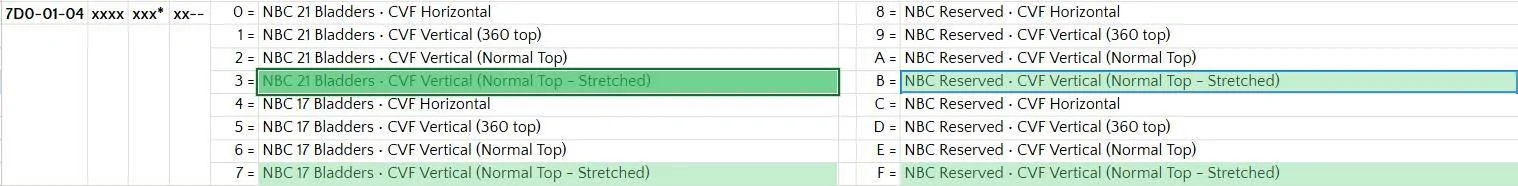

Edit: Your truck has the 12" screen. What value was there before you changed it to a 3? If there was a 2, you change it to 3. If there was a 6, you change it to 7. It there was an A, you change it to B and it there was an E, you change it to F.

Ford F-150 Lightning Dreaded camera fault 1734560186710-de

Last edited:
OP
OP
awilli1010

awilli1010

Well-known member
First Name
Dave
Joined
Dec 1, 2020
Threads
11
Messages
226
Reaction score
208
Location
SE Michigan
Vehicles
22 lightning lariat er, 22 maverick, 98 FLHT, and a schwinn bicycle.
Occupation
Retired Army, retired Government employee.
FORScan will correct the checksum on its own.



Wait, you are saying you did this and it didn't fix the issue? This would be a first.

Edit: Your truck has the 12" screen. What value was there before you changed it to a 3? If there was a 2, you change it to 3. If there was a 6, you change it to 7. It there was an A, you change it to B and it there was an E, you change it to F.

I just picked up the truck. They say it’s fixed but I’m not sure. Are there supposed to be buttons on the left side of the screen now? Also the forscan value I changed was 7D0-09-04-xxxx-xxx3-xxxx


Sponsored

rugedraw

Well-known member
First Name
Javier
Joined
Dec 14, 2021
Threads
4
Messages
1,300
Reaction score
1,351
Location
Miami
Vehicles
2021 Ford F150 Platinum FX4 EcoBoost; 1990 Ford Mustang LX 5.0 coupe
Occupation
Auto Sales
I just picked up the truck. They say it’s fixed but I’m not sure. Are there supposed to be buttons on the left side of the screen now? Also the forscan value I changed was 7D0-09-04-xxxx-xxx3-xxxx
Not sure about the buttons on the side. The OS on the Lightning is different from my truck.

09-04 is not the right location to fix the camera view.


rugedraw

Well-known member
First Name
Javier
Joined
Dec 14, 2021
Threads
4
Messages
1,300
Reaction score
1,351
Location
Miami
Vehicles
2021 Ford F150 Platinum FX4 EcoBoost; 1990 Ford Mustang LX 5.0 coupe
Occupation
Auto Sales
Quote deleted to avoid confusion.
Did I post that publicly somewhere? If so, link me to where you got that so I can correct it asap please.

Last edited:

Jasin

Well-known member
First Name
Jasin
Joined
Jul 7, 2022
Threads
1
Messages
60
Reaction score
35
Location
Virginia
Vehicles
2022 Lightning ER Lariat
Did I post that publicly somewhere? If so, link me to where you got that so I can correct it asap please.
I just tagged you on it


rugedraw

Well-known member
First Name
Javier
Joined
Dec 14, 2021
Threads
4
Messages
1,300
Reaction score
1,351
Location
Miami
Vehicles
2021 Ford F150 Platinum FX4 EcoBoost; 1990 Ford Mustang LX 5.0 coupe
Occupation
Auto Sales
@awilli1010

@Jasin

Correct the location in your posts please to avoid confusion to anyone that comes across this. I fixed it in mine already. Sorry for the mix up.

Edit: 7D0-09-04

xxxx xxx1 xx--

A 1 there is what it should be. The 3 added a button to your touchscreen somewhere for a power liftgate which is for SUV's. No big deal, but if you guys changed this to a 3, change it back to a 1 just so everything is how it should be.

Last edited:

rugedraw

Well-known member
First Name
Javier
Joined
Dec 14, 2021
Threads
4
Messages
1,300
Reaction score
1,351
Location
Miami
Vehicles
2021 Ford F150 Platinum FX4 EcoBoost; 1990 Ford Mustang LX 5.0 coupe
Occupation
Auto Sales
@awilli1010 @Jasin Sorry for the multiple posts, but I edited my prior post with the correct value for the 09-04 location and wanted to make sure you guys saw it after I edited it.
