Load sticker #'s from door jam of Extended Range Lightning

[Administrator]

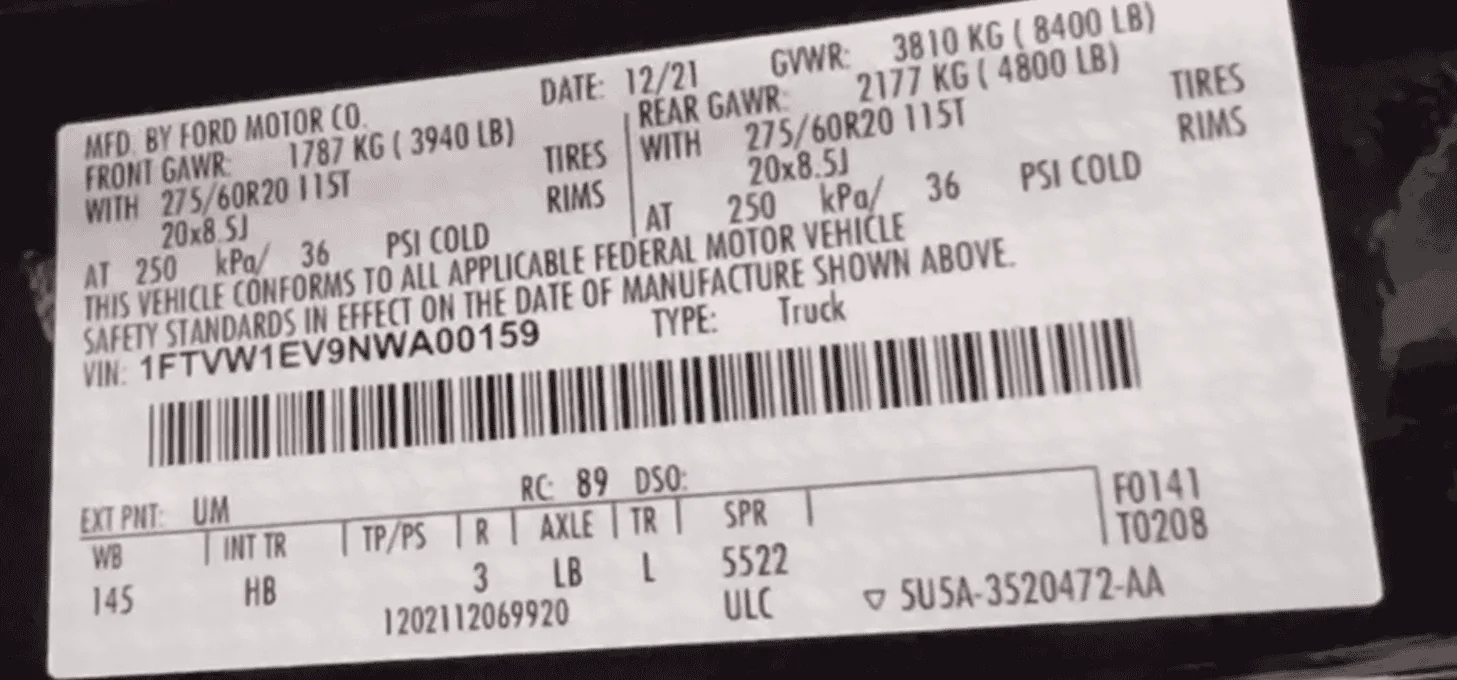

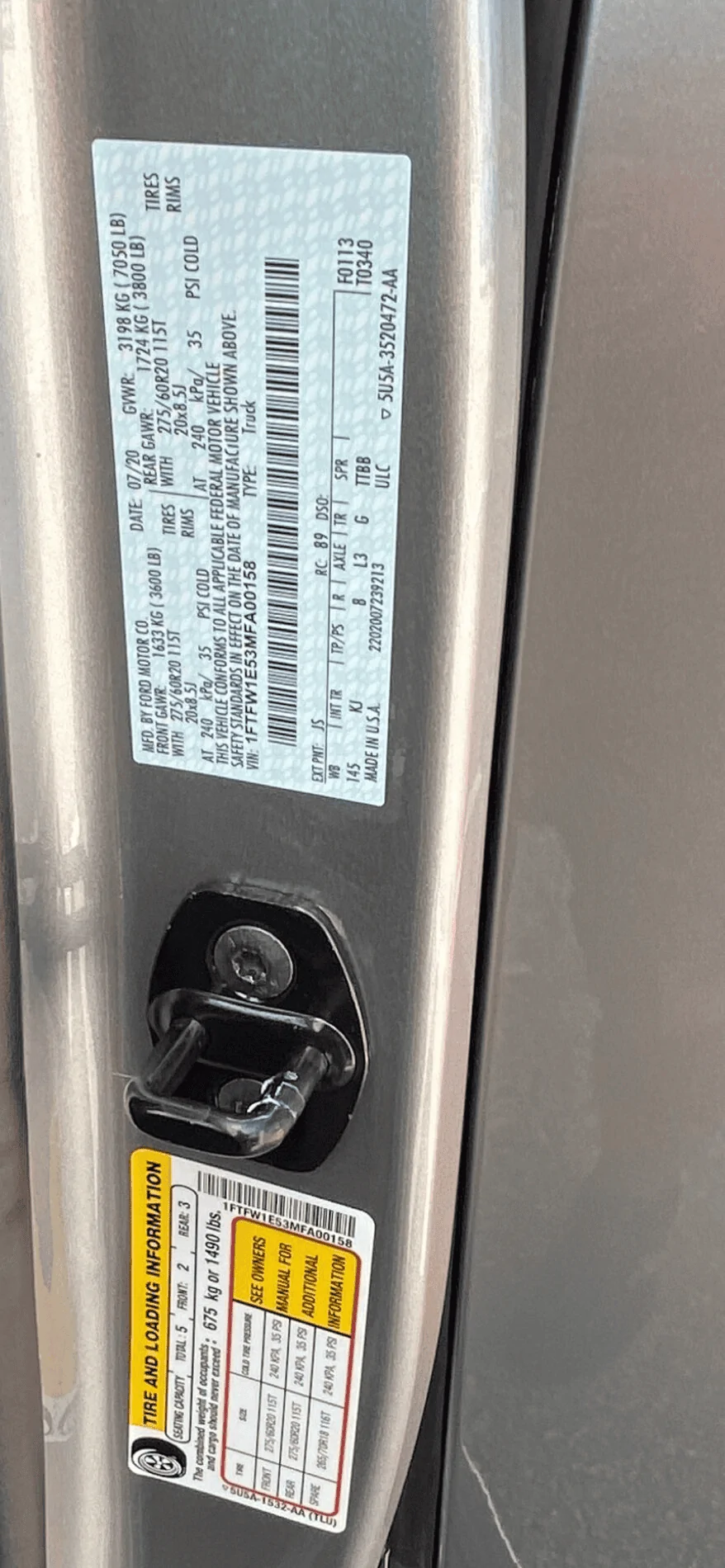

Load sticker from door jam of extended range Lightning (preproduction).

Sponsored



[TaxmanHog]

I hope mine shows (8550) with the Max Tow Package.



[metroshot]

Is this for the Platinum ER ?

Anyone know the curb weight ?



[Tony Burgh]

Would the curb weight be 8400 - 1452 = 6948 pounds?



[Easycamper]

Note the rear GAWR is 4800 lbs, same as a Heavy Duty Payload Package.



[p52Ranch]

I thought I had a different chart that showed the Platinum with the highest GVWR of 8550. Not sure if that is because the Platinum comes with Max tow or if it is because the Platinum has other weighty options.

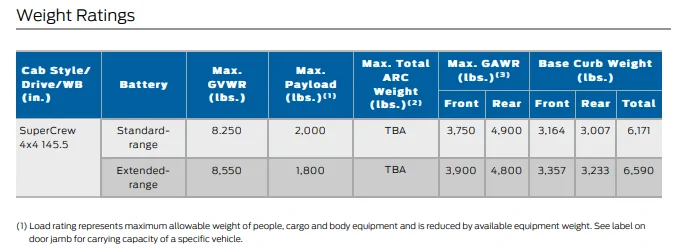

I doubt that we will see any lightnings with the maximum payloads in this chart: The empty weight of the Lariat ER above is 6948 which is 400# heavier than the base curb weight of 6590 below.

Edit: I guess the Pro model with ER and max tow could achieve the max payload of 1,800 pounds. Not sure if any mere mortal will ever see one of those unicorns.



[gorwell]

For some context:

F-150 King Ranch SuperCrew with the 5.0L


Scrolled through the ICE stickers here: https://www.f150gen14.com/forum/threads/2021-f-150-payload-stickers.595/page-2

And the Lightning payload seems comparable.



[TaxmanHog]

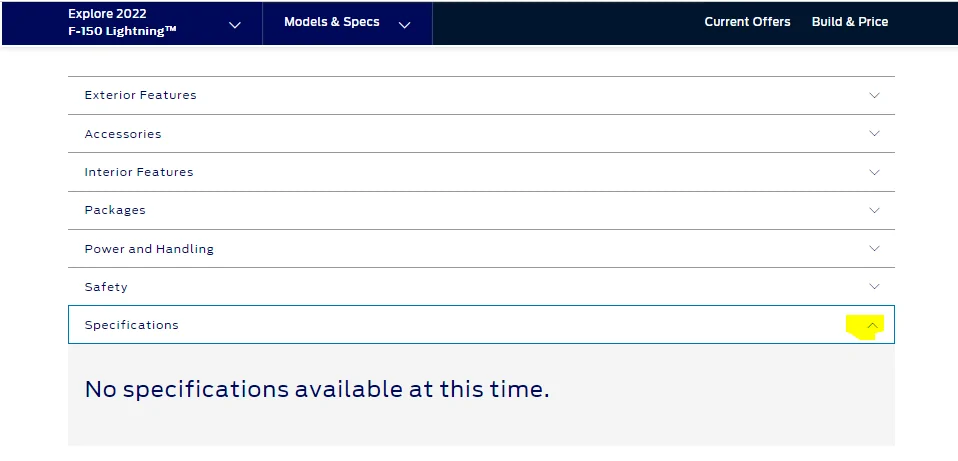

Hope to see data on these screens soon, maybe 4/26?
https://www.ford.com/trucks/f150/f150-lightning/models/f150-pro/?gnav=vhpnav-specs
https://www.ford.com/trucks/f150/f150-lightning/models/f150-xlt/?gnav=vhpnav-specs
https://www.ford.com/trucks/f150/f150-lightning/models/f150-lariat/?gnav=vhpnav-specs
https://www.ford.com/trucks/f150/f150-lightning/models/f150-platinum/?gnav=vhpnav-specs



[VTbuckeye]

My lariat ER max tow order paperwork says 8550 gvwr, so if those are accurate stickers for a lariat ER non-max tow then the payload should be 1602 (150 pounds more than the 8400 gvwr) less the added weight of max tow.



[Griddlez]

Crossing fingers ER Lariat's w/ Max Tow don't go lower than 1450 - or else my dog is going to get stranded when towing our travel trailer lol.



[p52Ranch]

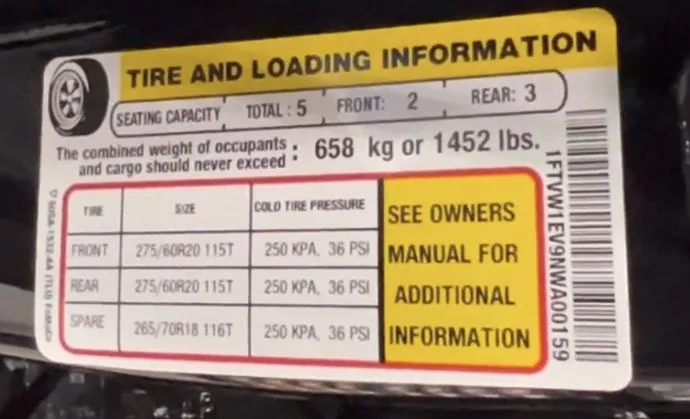

I just realized that the tires on the load sticker are a 115T tire which I think translates to a P metric radial rather than an LT tire. The 115T tire has an SL (standard load) rating.

I am a bit surprised that the lightning which weighs about 1500 pounds more than an ICE F150 has a 4 ply rated tire. This is the same tire rating as the King Ranch shot above.



[metroshot]

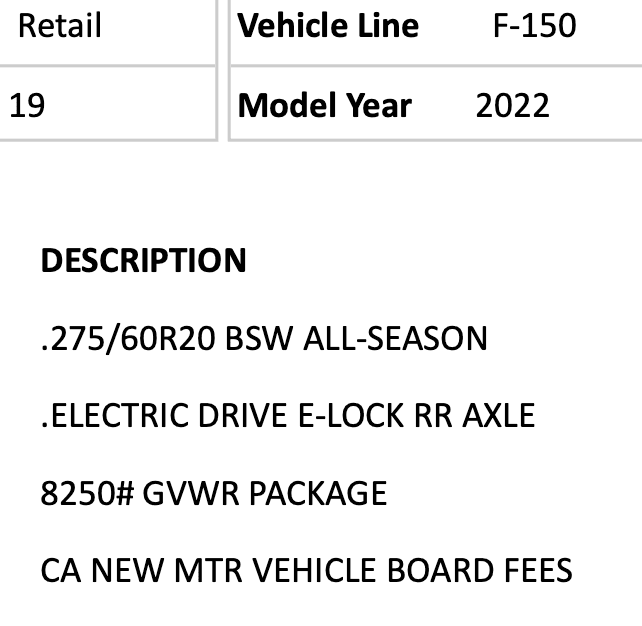

I just got my order confirmed and the GVWR is listed as 8250 lbs.

Is that correct for a SR Lariat ?



[TaxmanHog]

I just got my order confirmed and the GVWR is listed as 8250 lbs.

Is that correct for a SR Lariat ?

Yes, I think that is correct, curb #6250 plus payload #2000 gives you GVWR of #8250



[p52Ranch]

I just got my order confirmed and the GVWR is listed as 8250 lbs.

Is that correct for a SR Lariat ?

My XLT SR with Max Tow also has the 8,250# GVWR package
