Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light

OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
29
Messages
223
Reaction score
427
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E
NO NO NO! That is the part for the Pro and XLT, it doesn't have the cutout for the swedge that juts out on the Lariat and Platinum tailgates! It will fit into the recess and connect up fine, but the tailgate will not close.
I continue to be an idiot and didn’t see this reply before I got excited and ordered the part from eBay. So, lesson to everyone here, part numbers matched up, but they are different parts (not sure why they did that).
Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light D967004E-977E-4E84-B51A-7C646481E65E
Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light DF469B0C-A7D8-4514-B16F-63F324D5999B


ctuan13

Well-known member
First Name
Chuck
Joined
Jul 31, 2022
Threads
25
Messages
626
Reaction score
765
Location
Pittsburgh, PA
Vehicles
1979 Continental, 2022 F150 Lightning, 03 Marauder
I continue to be an idiot and didn’t see this reply before I got excited and ordered the part from eBay. So, lesson to everyone here, part numbers matched up, but they are different parts (not sure why they did that).
Aww man, sorry you didn't see it sooner, but I only tried to warn you because I've made the exact same mistake. Luckily the seller was willing to accept a return as long as I paid shipping.

OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
29
Messages
223
Reaction score
427
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E
Aww man, sorry you didn't see it sooner, but I only tried to warn you because I've made the exact same mistake. Luckily the seller was willing to accept a return as long as I paid shipping.
Did you end up buying one from the dealer?


ctuan13

Well-known member
First Name
Chuck
Joined
Jul 31, 2022
Threads
25
Messages
626
Reaction score
765
Location
Pittsburgh, PA
Vehicles
1979 Continental, 2022 F150 Lightning, 03 Marauder
Did you end up buying one from the dealer?
Actually after returning the incorrect one, I was able to find the correct one on eBay and got it for around 500 bucks. Then made an appointment to have the new tail light programmed for the BLIS module. The programming cost around d 125 bucks. (I would've just transfered the old module over to the new tail light, except it was obliterated when my truck was rear ended.)


Driver8

Well-known member
Joined
Aug 10, 2022
Threads
1
Messages
163
Reaction score
143
Location
Here.
Vehicles
F-150 Lightning
Well, now I'm seeing something interesting. The dealership websites are starting to list new tail light part numbers for both versions. The online catalog numbers originally ended with "B" for the Pro/XLT version, and "C" for the Platinum/Lariat version. Now it looks like there are "G" and "H" versions replacing the "B" and "C" versions.

I wonder if there is any functional difference.


Sponsored
OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
29
Messages
223
Reaction score
427
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E

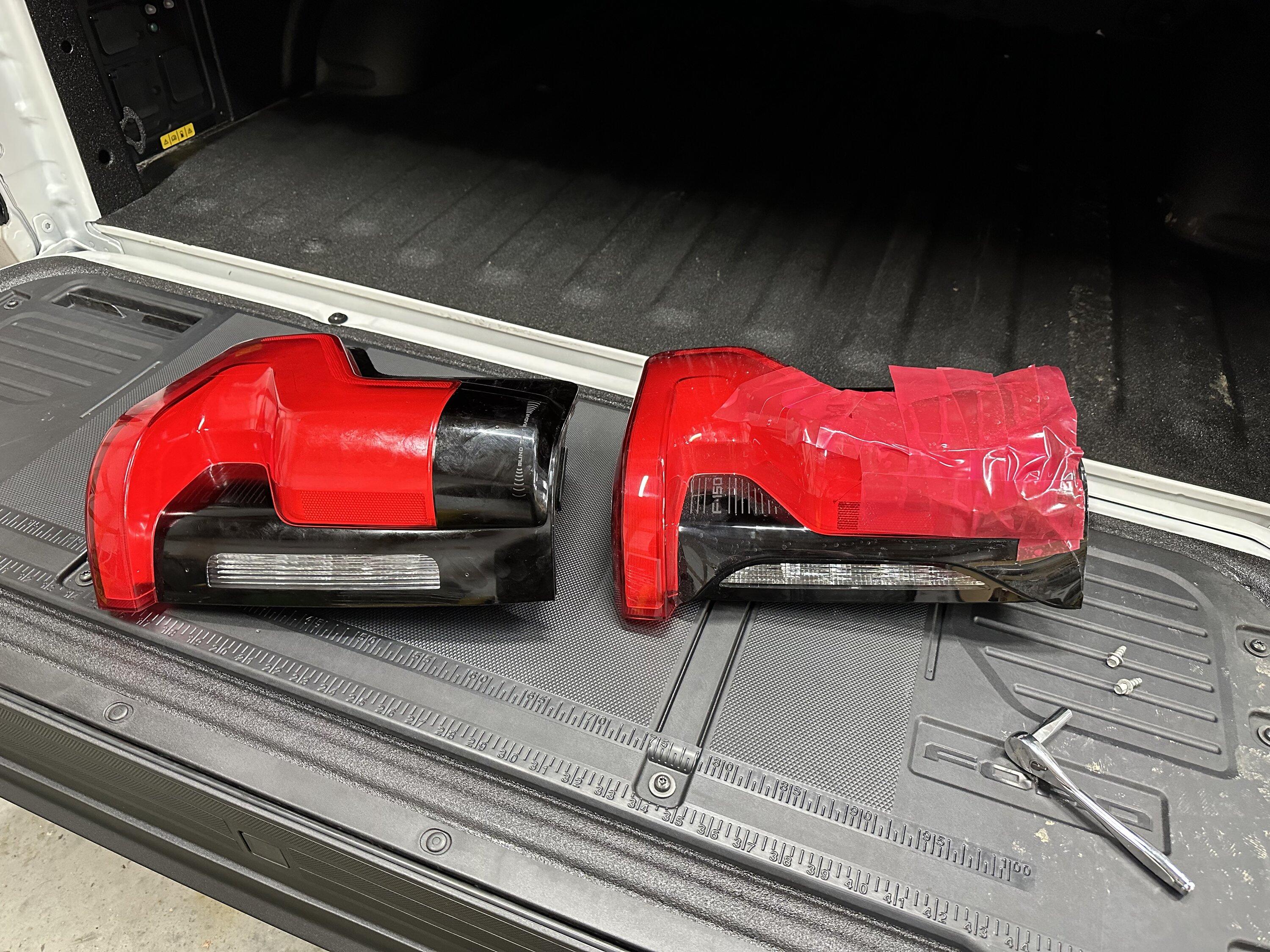

Finally found and got a new tail light from eBay and did the install today. I moved the blind spot from my broken tail light and everything works perfectly (no programming needed).
Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light A1ED038F-638E-46A4-9417-D90B63C183EF

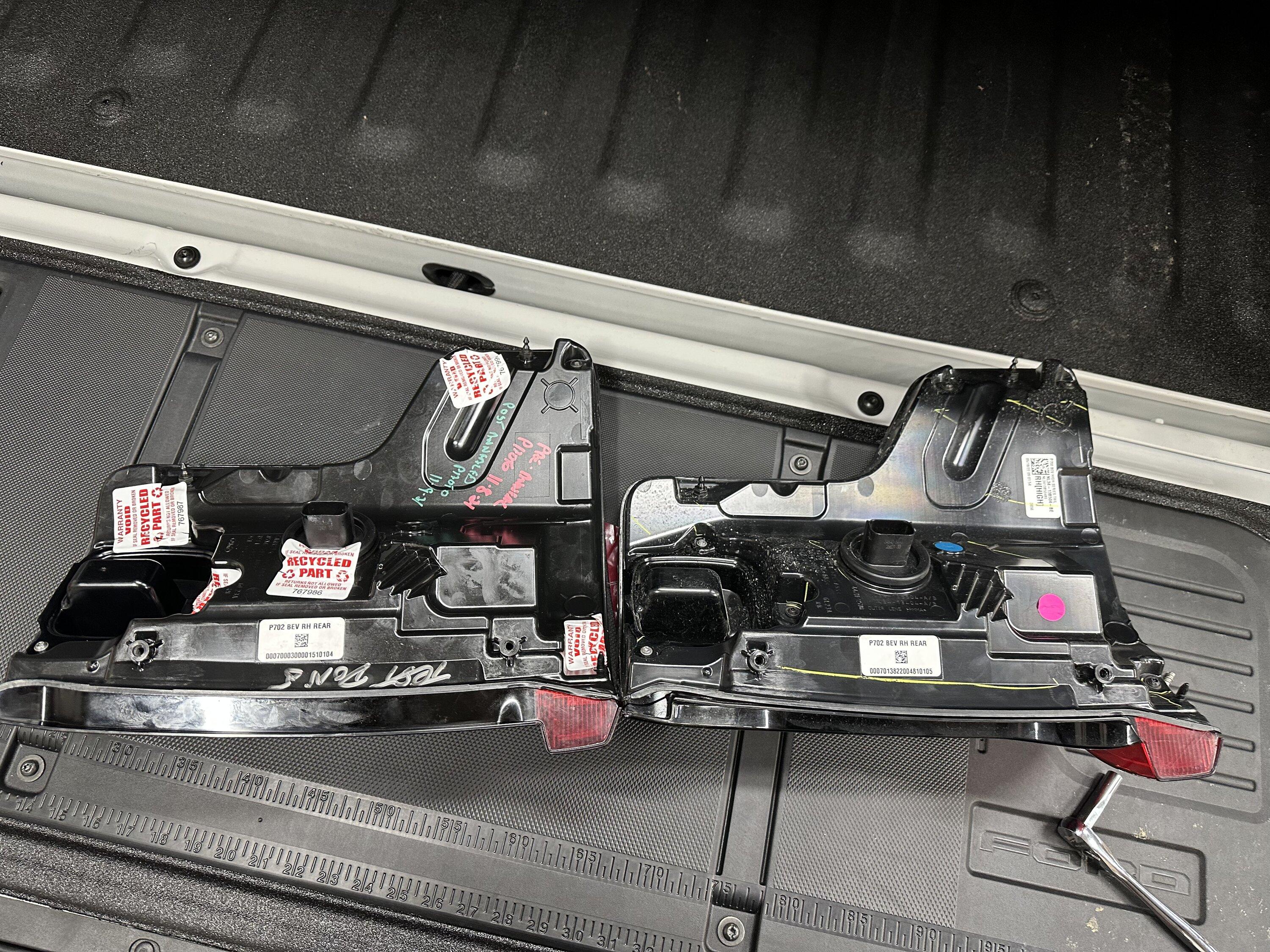

To move the BIS system:
  1. First you have to undo 3 t-25 screws on the back of the tail light
    Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light 5E87FCD7-D01E-45B7-8959-37D0F3E0CF1E
  2. Then pull out the module and then remove the 2 t-25 hold down screws that keep the module against the cover plate.
    Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light D454C9A0-3D49-4ECB-BD96-3F169EAEB7E9
  3. Then you remove the plug.
    Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light 009CE48F-358B-41F4-A789-4A5FBBF9AA1D

  4. Once out, you just repeat the same process on the replacement light
    Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light 10BCEEAE-C6D1-4777-A1BE-38793919FA7E


woodbine

Member
First Name
Martin
Joined
May 4, 2022
Threads
0
Messages
5
Reaction score
0
Location
Illinois
Vehicles
2016 ram eco diesel

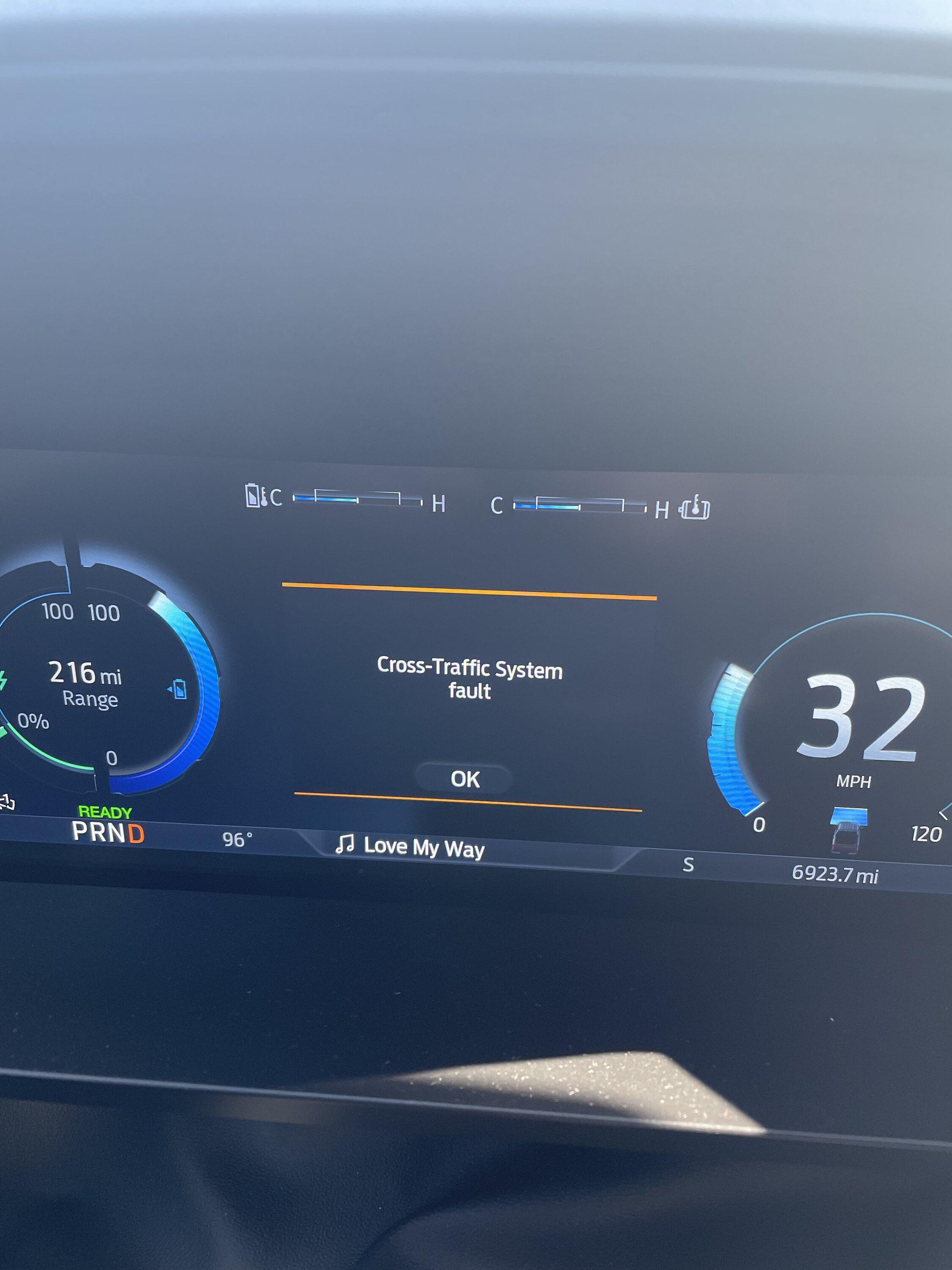

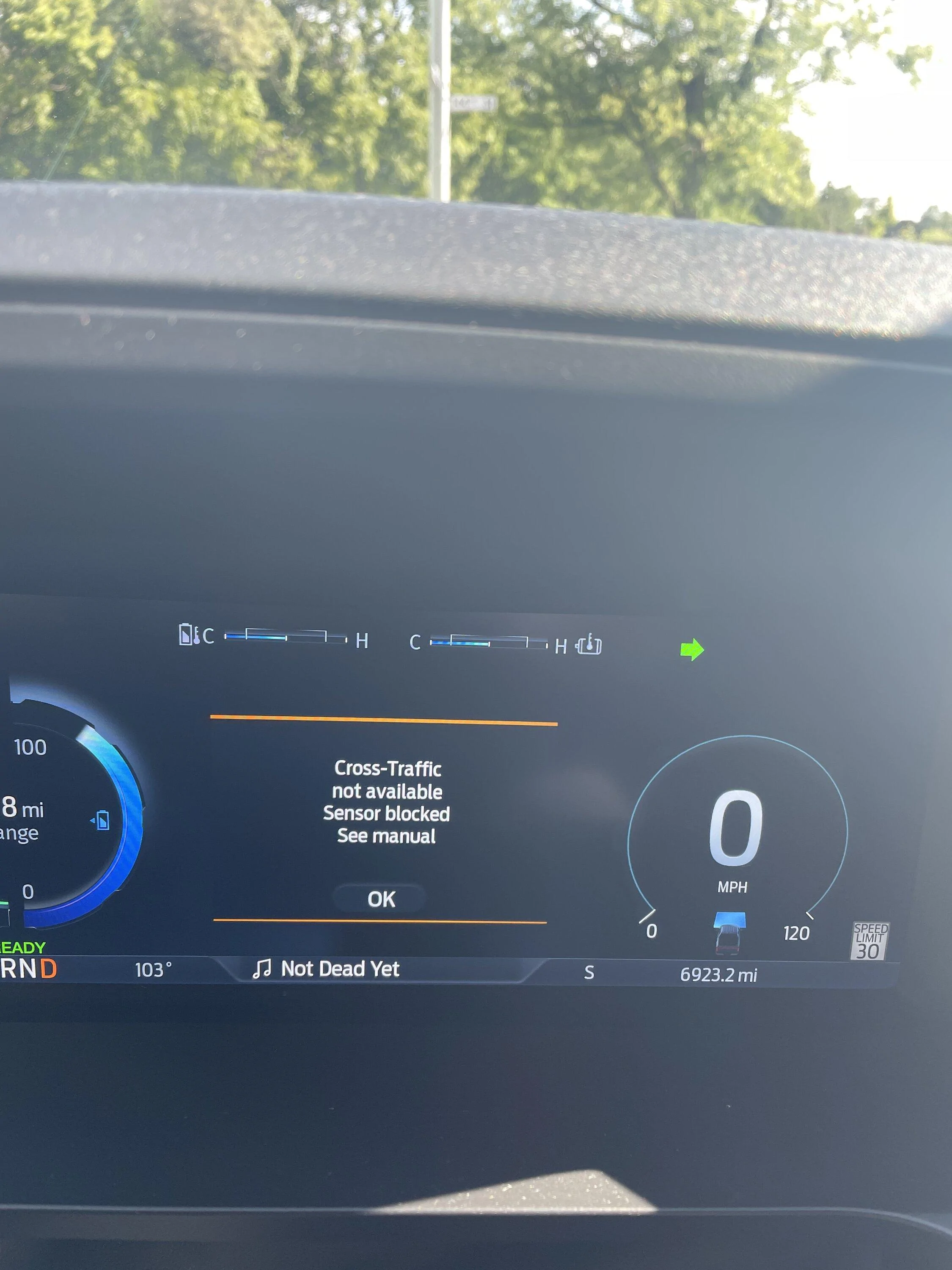

I performed the same swap however I get the following alerts. Any recommendations on how to fix this. Seems something is blocking the sensor thanks!

Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light 71149679956__046D330E-26E6-4818-99C4-08B7B8B5D8DB


Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light 71149667384__662F62BE-5289-4529-BBE4-84CC3D269F2E


Ford F-150 Lightning Broken rear tail light (my fault) - instructions on how to move BIS sensor to new tail light IMG_2030

OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
29
Messages
223
Reaction score
427
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E
First I’d do a 12v battery reset just to be safe. Then I would probably pull it back apart and see if there is something stuck to the face of it. Also try plugging it in with it sitting outside of the light and see if the errors go away.

Could be something wrong with the new taillight lens, but past that I’m not sure.


woodbine

Member
First Name
Martin
Joined
May 4, 2022
Threads
0
Messages
5
Reaction score
0
Location
Illinois
Vehicles
2016 ram eco diesel
Took it to the dealer. they couldn’t get it to communicate so had to order a new sensor. The cost with labor for the sensor came to 852.00. I think they also included the two hours of trying to make the old sensor to work. It did get wet while waiting for the lens Maybe that ruined the sensor.


Sponsored
OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
29
Messages
223
Reaction score
427
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E
Possibly, but wish I had known you needed a sensor, I have one out of the light I used that I could have sent you!


bmwhitetx

Well-known member
First Name
Bruce
Joined
May 21, 2021
Threads
39
Messages
1,534
Reaction score
2,135
Location
DFW-Texas
Vehicles
2022 F150 Lightning Lariat ER
Occupation
Retired engineer
@ericpullen @woodbine @ctuan13 Did any of you have a hyper flash on the instrument panel when using the turn signal after you replaced the tail light? I had a hairline crack in my RH lens so bought one off eBay and moved the BLIS sensor over. It works fine, all segments light but I get a hyper flash. The light itself blinks normally.

Typically hyper flash occurs when either the bulb is out of when changing from halogen to LED. But it does not look like any LEDs are out. I put my old tail light back in and everything is fine so the wiring should be okay.

The seller says I can return it or turn off hyper flash in FORScan (which turns off light check) but I'd rather not disable functionality.

OP
OP
ericpullen

ericpullen

Well-known member
First Name
Eric
Joined
Jan 4, 2022
Threads
29
Messages
223
Reaction score
427
Location
Louisville, KY
Vehicles
22 F-150 Lightning & 22 Mach-E
I've never had it hyper flash after I replaced it that I know of.


LightningShow

Well-known member
Joined
Sep 1, 2021
Threads
50
Messages
1,902
Reaction score
2,224
Location
MA
Vehicles
'22 Lariat ER
Occupation
Product Development
I’m dealing with this right now. I replaced the taillight last night and saw the error. I figured I would need to bring it to the dealer to get them to configure the new sensor. I didn't think to pull the old sensor out of the cracked light. I'm glad I checked the forum!

I haven't used FORSCAN but I assume this would be something you could do with that. Or even a programming OBDII reader. I've dealt with this on my Porsche when I replaced the rear mechanical controller. I had to use my Porsche-specific OBD reader to configure it to my vehicle.

ETA: I see someone had it programmed by the dealer for $125. Good to know.

Last edited:

ctuan13

Well-known member
First Name
Chuck
Joined
Jul 31, 2022
Threads
25
Messages
626
Reaction score
765
Location
Pittsburgh, PA
Vehicles
1979 Continental, 2022 F150 Lightning, 03 Marauder
@ericpullen @woodbine @ctuan13 Did any of you have a hyper flash on the instrument panel when using the turn signal after you replaced the tail light? I had a hairline crack in my RH lens so bought one off eBay and moved the BLIS sensor over. It works fine, all segments light but I get a hyper flash. The light itself blinks normally.

Typically hyper flash occurs when either the bulb is out of when changing from halogen to LED. But it does not look like any LEDs are out. I put my old tail light back in and everything is fine so the wiring should be okay.

The seller says I can return it or turn off hyper flash in FORScan (which turns off light check) but I'd rather not disable functionality.
I never had any hyperflash issues.
