Charging times with Ford Mobile Charger

[RickLightning]

Just looking at at data from a public charge last night and thought the data would be relevant.

Data From Charge Point:

• Charger rating 6.6kW
• Charge time 1.5 hr
• Actual power delivered to the truck Plug. 8.81 kWh (charger never delivered more than 6.1 kW)

Weather 50 deg F, no wind.

Data from Ford app.

• Energy added to the ER battery 6% (85% to 91%) = 7.86kWh
• Distance added - 17 miles
• Calculated mi/kwh based on this charge - 2.16 (really good for me as I do love me some torque)
• Ford did not record the 16 mile Trip to this charger so I cannot verify efficiency.

Charging efficiency - 7.86/8.81 = 89.2% or 10.8% lost between charger and battery.

Let me show you how I can screw with your numbers.

1) Ford app math is lacking. Let's screw with it. 84.46% to 91.44% = 6.98kWh. Or wait, is it 85.44% to 90.46 = 5.02kWh?

2) Miles are estimated only, and are usually way overstated.

3) Efficiency calculations could be 7.86/8.81 for the 10.8% loss, or 5.02/8.81 for a 43% loss, or 20.8% loss.

4) But that's not all... When it's cold out, the battery can't accept as much juice. So, while it displays 91%, in reality it might be say 87%. So you can't use anything but the relative difference, and as I've shown that's worth crap too.

5) But wait, there's more... Some of the charging is lost to heat the battery too.

6) Lastly, if you blast the heat while charging, you have to take that into account also. Could be 4 - 6 kWhs...

If you look in the Ford app, it will show the kWh added when you're in the session, which then disappears after (big failing).

Here's some rough rules of thumb:

- DC fast charging is 7 to 10% loss
- Level 2 charging is around 15 - 20% loss

Severe heat, or cold, drives these numbers up.

Sponsored



[GoodSam]

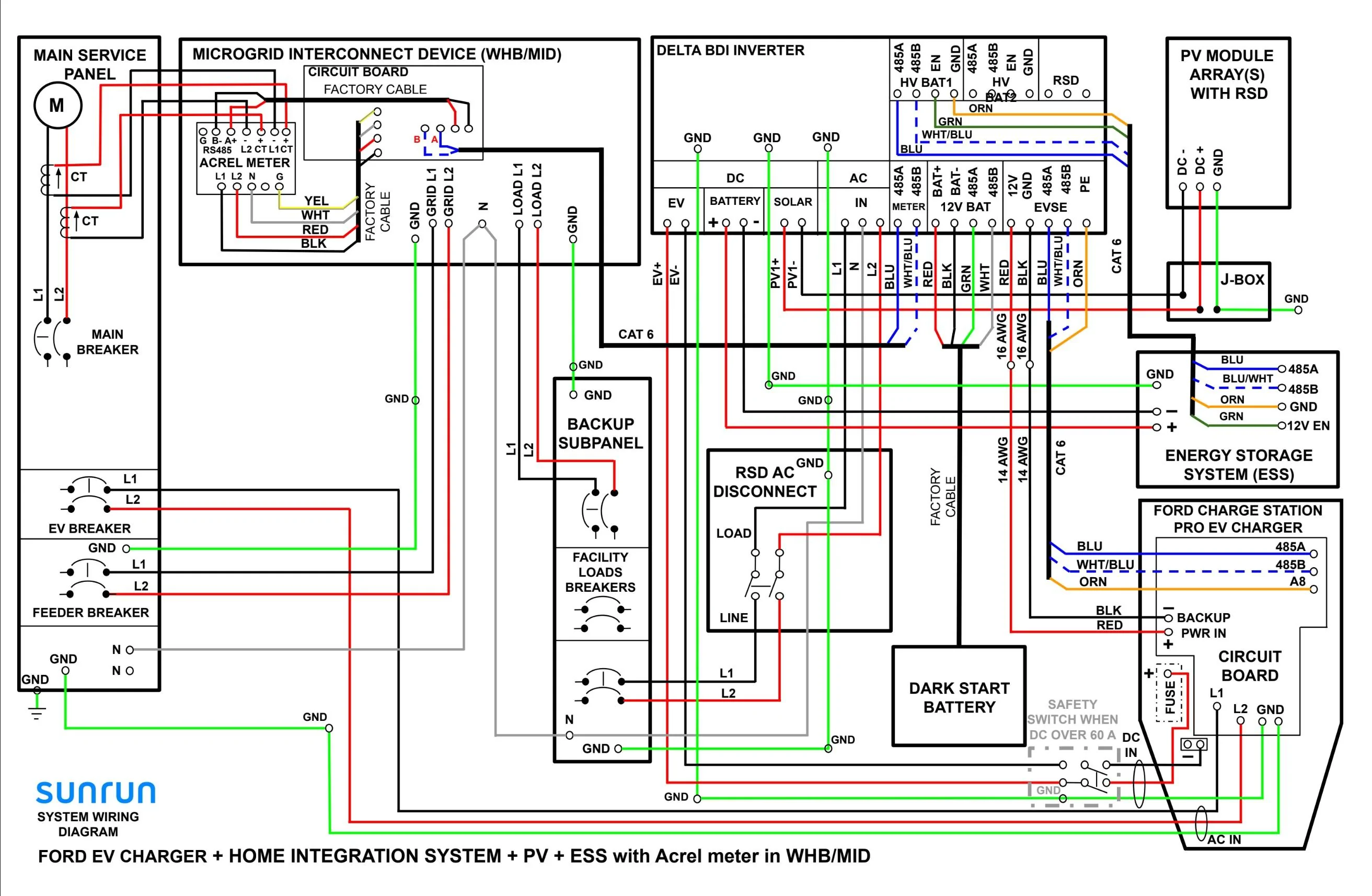

So the 50A circuit breaker to charge with (limiting the FCSP to 40A) has nothing to do with power back to the house. What is the wire size for the 9.6KW DC (direct current) feeding the inverter? Just sized like AC for 240V, 40A, #8awg? Wiring diagram:
