Limiting Charging Current with Ford Mobile Charger or other chargers (30a dryer circuit)?

OP
OP
V8BoatBuilder

V8BoatBuilder

Well-known member
First Name
Aaron
Joined
Jan 22, 2022
Threads
11
Messages
170
Reaction score
187
Location
New Jersey
Vehicles
22 Lightning
If we had EVSE devices that could simply detect the maximum Breaker amperage of a circuit, we'd have this licked - but I don't think that technology is advanced enough....yet. Right now, you have to KNOW the circuit's breaker/wiring capacity and use the device that does not expect to draw more amperage than that, or to have an ADJUSTABLE EVSE that provides the ability to 'dial down' the maximum amperage it will try to draw...
I've just ordered one of these today, since the Ford Mobile Charger is FIXED at/about 30amps. Now, whether the Ford EVSE is a CONTINUOUS 30amps draw, or slightly less, is something for someone who already has one to check out. I'm not sure you could really know the amperage unless you apply a CLAMP METER to the EVSE wire between the Charger body and the Outlet.
I'll give this a try when I get my truck soon, but for the time being, I wanted another way to 'lower' that 240v draw, just in case. I do have a 20amp 240v outlet in my garage, which my KIA PHEV uses with a 16amp 240v EVSE, but I would not be able to use the Ford charger since it would certainly kick the breaker quickly.
Also, when camping, having a 50amp 240v outlet is IDEAL, but they are not at every campground, or even every campsite. I know of one campground we love which has TWO 30amp 120v common RV outlets, but not the 50amp, etc.
I would be curious if any commercially available EVSEs have a digital display with an ammeter.
Sponsored



Tony Burgh

Well-known member
First Name
Tony
Joined
Sep 28, 2021
Threads
17
Messages
858
Reaction score
957
Location
Western Pennsylvania
Vehicles
22 Lariat ER
Occupation
Retired
That is exactly what I want to do. Tesla allows you to set charge current from their vehicles.

This feature allows you to safely de-rate the mobile charger to fit the circuit it is plugged into.
It’s built into the FCSP app. Probably could have been built into the mobile charger. Or into the Lightning. I’m thrilled they got as much right as they did.


VTbuckeye

Well-known member
First Name
Joseph
Joined
Jan 15, 2022
Threads
5
Messages
906
Reaction score
872
Location
Vermont
Vehicles
19 Bolt, 16 XC90T8, 22 XC40 P8 Recharge, 17 Tacoma

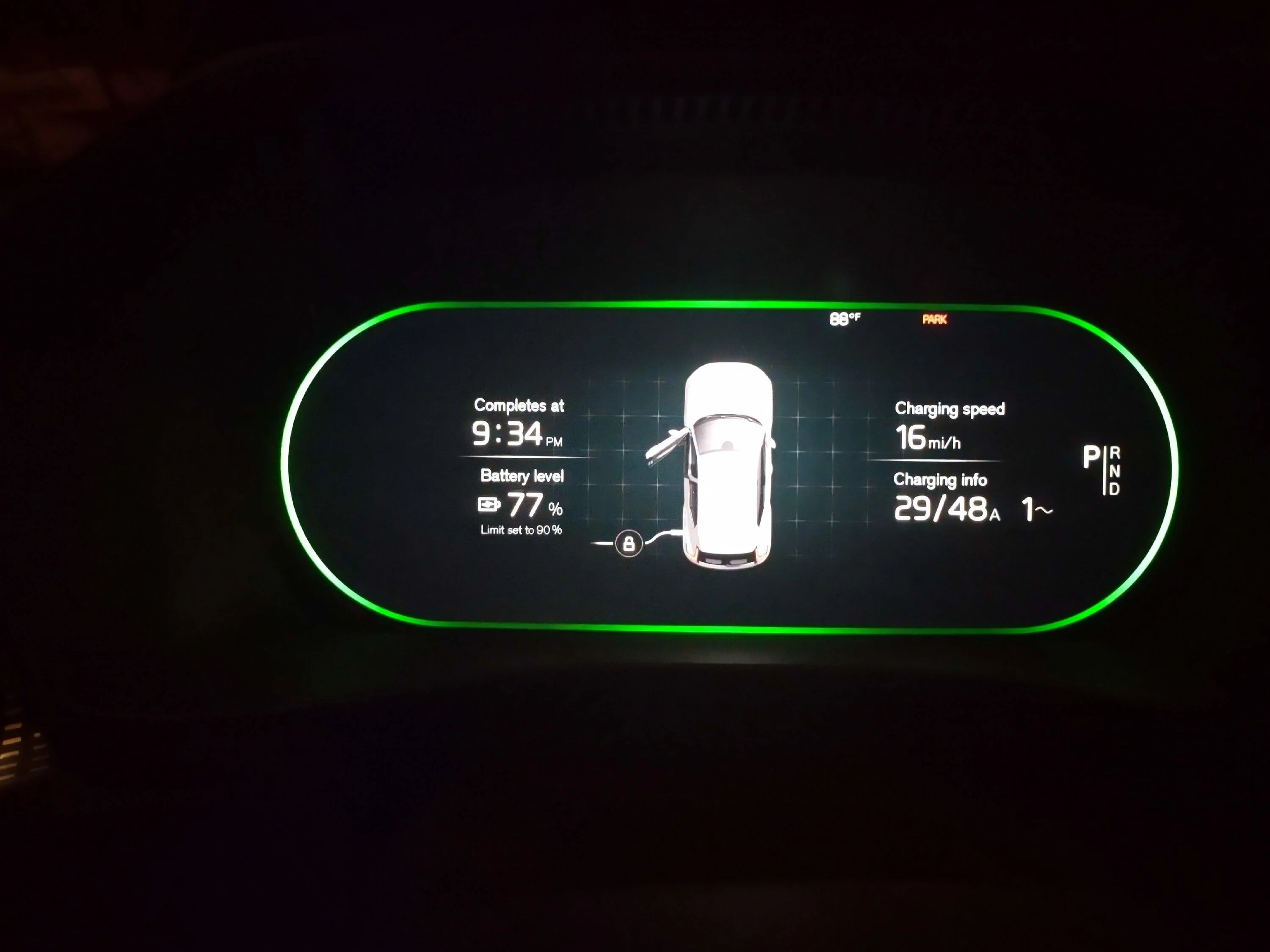

I am not familiar with the Tesla charging options, but in our Volvo the charging screen let's us select the max charging amp, set the desired charging level, schedule charging. The driver's screen shows current charge rate in miles per hour and amp and expected charge completion time. If DCFC it will show the charge in KW
