DIY: Installing Passive Entry To A 2022 F-150 Lightning XLT

[ZSC100]

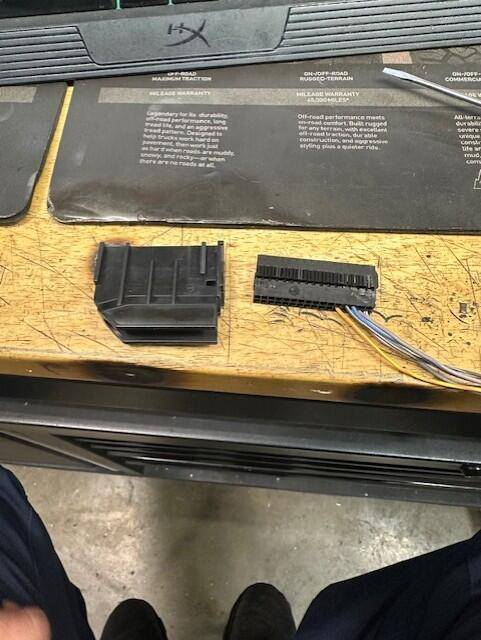

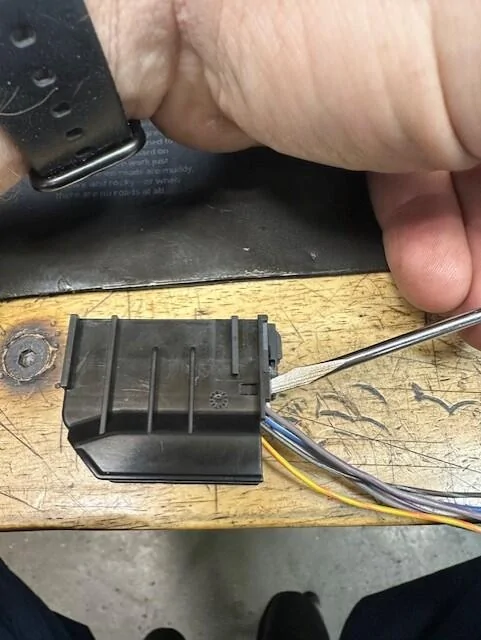

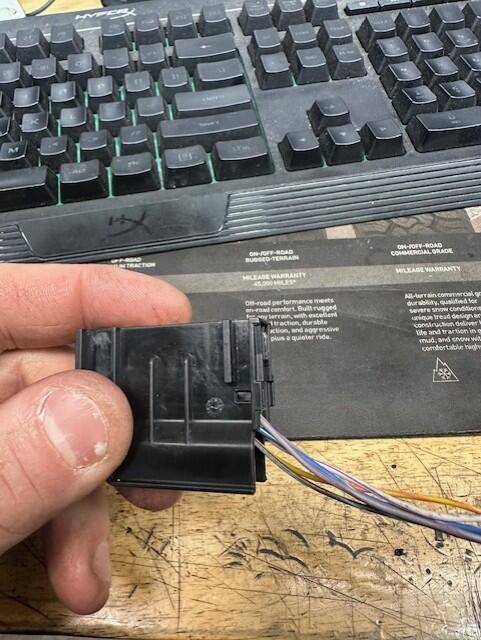

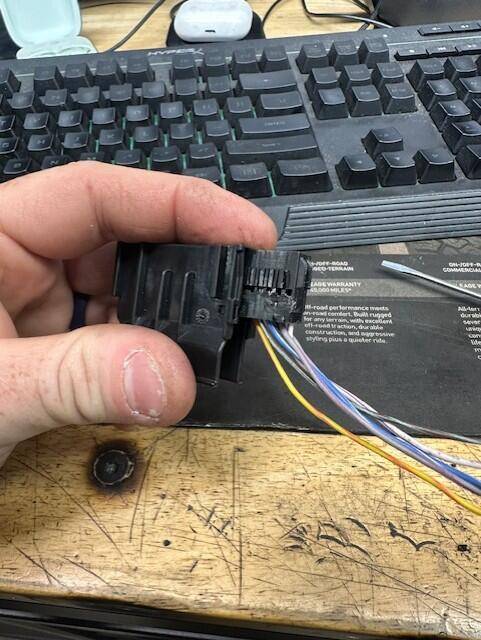

So I popped off the connector on the driver's door and it looks like I don't have the wires on my 2024 XLT EG-311A I'm hoping that either the wires are just different for 2024 or that it isn't hard to add them.

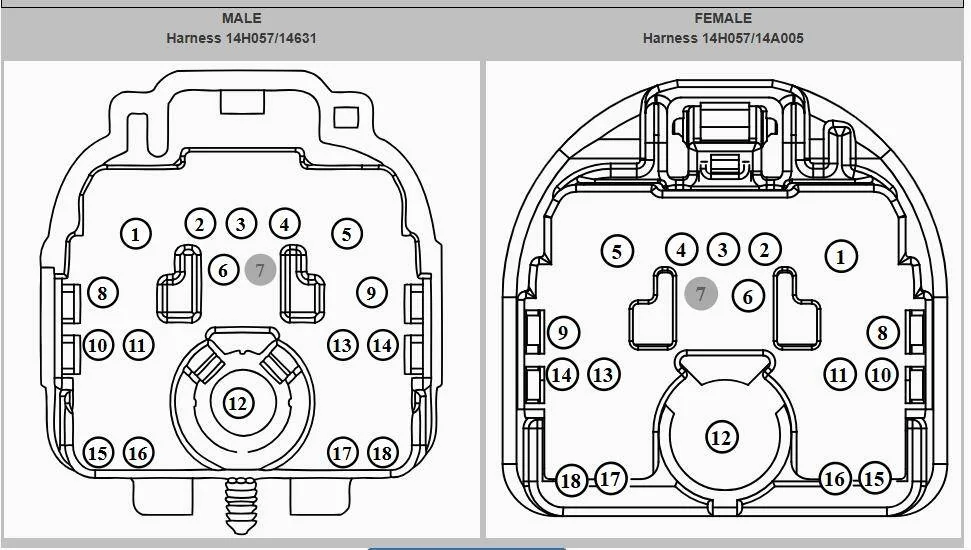

@ZSC100 where did you get the wiring diagram from? I'm trying to locate the same for 2024. Thanks!

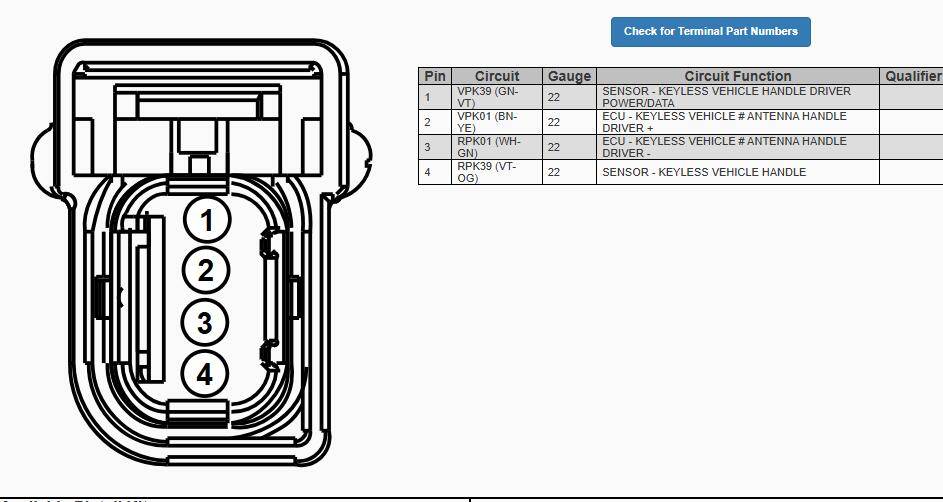

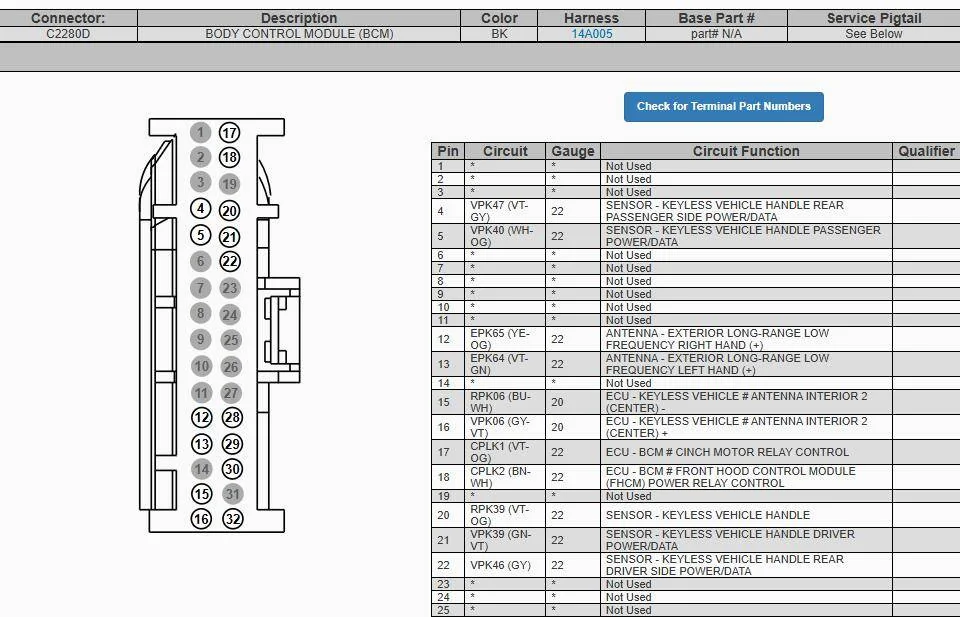

Back then I was getting them from an awesome parts guy at a local dealer, ,but I've since realized a 72hr subscription to PTS on a dual monitor computer with fast internet is the way to go. Just spend a few hours and download(print to PDF) all diagrams you can think you'd ever need.

https://www.motorcraftservice.com/

Once logged in go to "service info" on the top menu bar, select 72hr Option and once you've paid you sometimes have to log out, wait 10min then log back in, to access it use the "my subscriptions" tab. It's not a very friendly UI, but it's Ford so that's to be expected



[dcshoes23]

Thanks so much @ZSC100 , that was a huge help. So, it looks like everything is the same. The last piece of the puzzle is the firmware. I would probably need the firmware from a 2024 Flash. You wouldn't happen to know where I could get that as well?



[ZSC100]

Thanks so much @ZSC100 , that was a huge help. So, it looks like everything is the same. The last piece of the puzzle is the firmware. I would probably need the firmware from a 2024 Flash. You wouldn't happen to know where I could get that as well?

Yes, for that you need to contact Jesse @Jesse-Infotainment

I'd say talk to him directly if a different BCM firmware is needed he will know. If indeed a different one is needed If you could start a new DIY post titled something like
"DIY: Installing Passive Entry To A 2024 F-150 Lightning XLT EG311A" with access to the firmware for others that would be awesome.



[dcshoes23]

Yes, for that you need to contact Jesse @Jesse-Infotainment

I'd say talk to him directly if a different BCM firmware is needed he will know. If indeed a different one is needed If you could start a new DIY post titled something like
"DIY: Installing Passive Entry To A 2024 F-150 Lightning XLT EG311A" with access to the firmware for others that would be awesome.

Thanks for the help again. I will definitely make a post once everything is verified working.
