Door Sticker Thread (GVWR / Payload / Tire and Loading Figures Label). Help and Add Yours!

[vandy1981]

Please post door stickers that you find with Trim and a hyperlink. I'll update the original post as we go.

Still need Pro, XLT, XLT ER, Lariat SR.

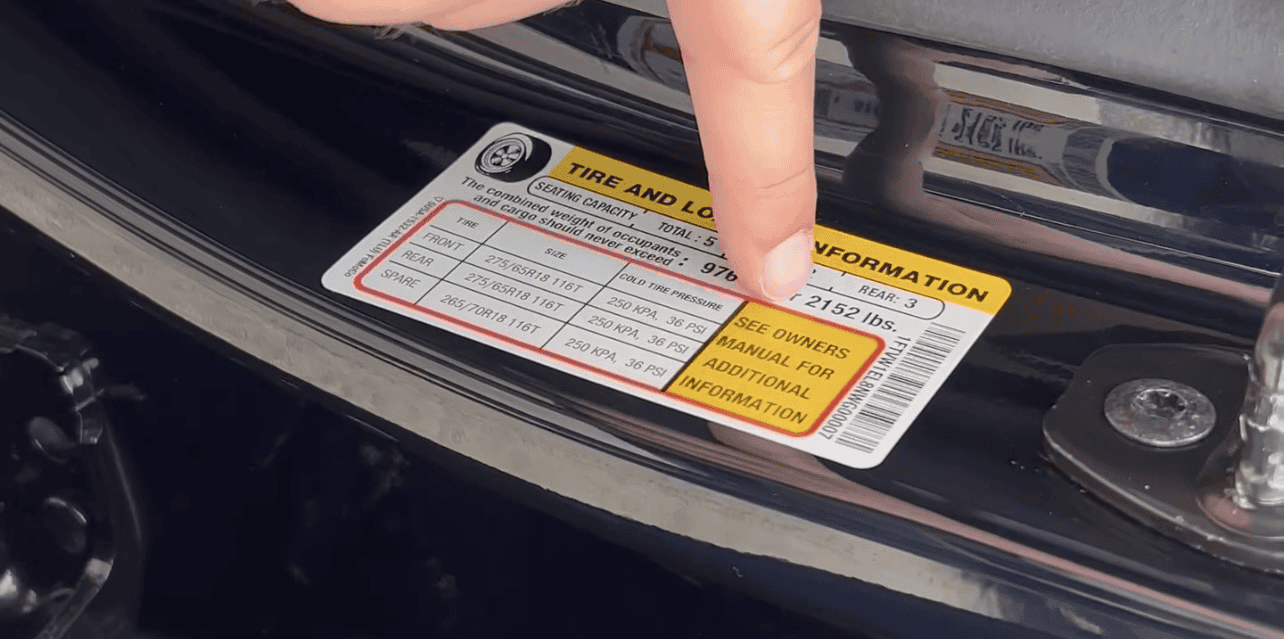

Pro SR
w/ spray-in bedliner from Out of Spec and @Easycamper

Pro ER
TFL, Tires Unknown, but GVWR (8501-9000) indicates Standard Tires

XLT SR

XLT ER
From @FordLightningMan in this thread.

Lariat SR

Lariat ER

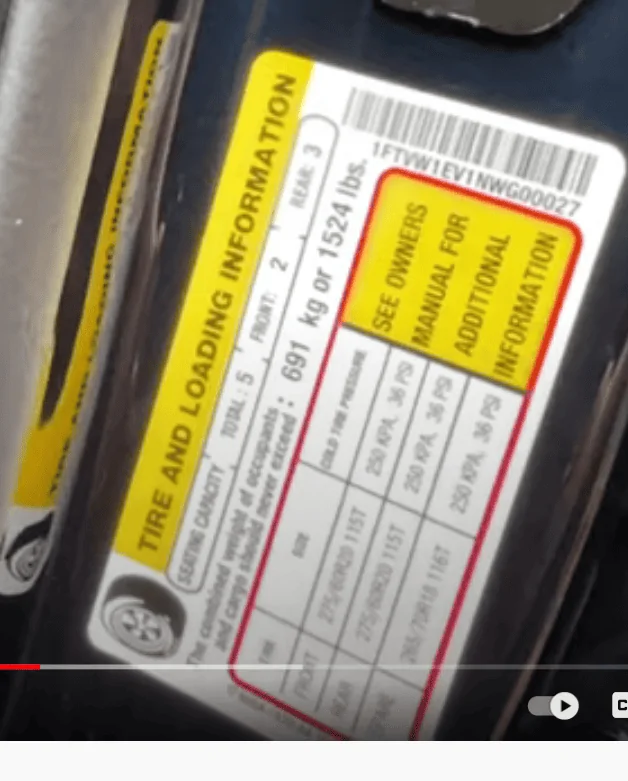

Truck King, Standard Tires

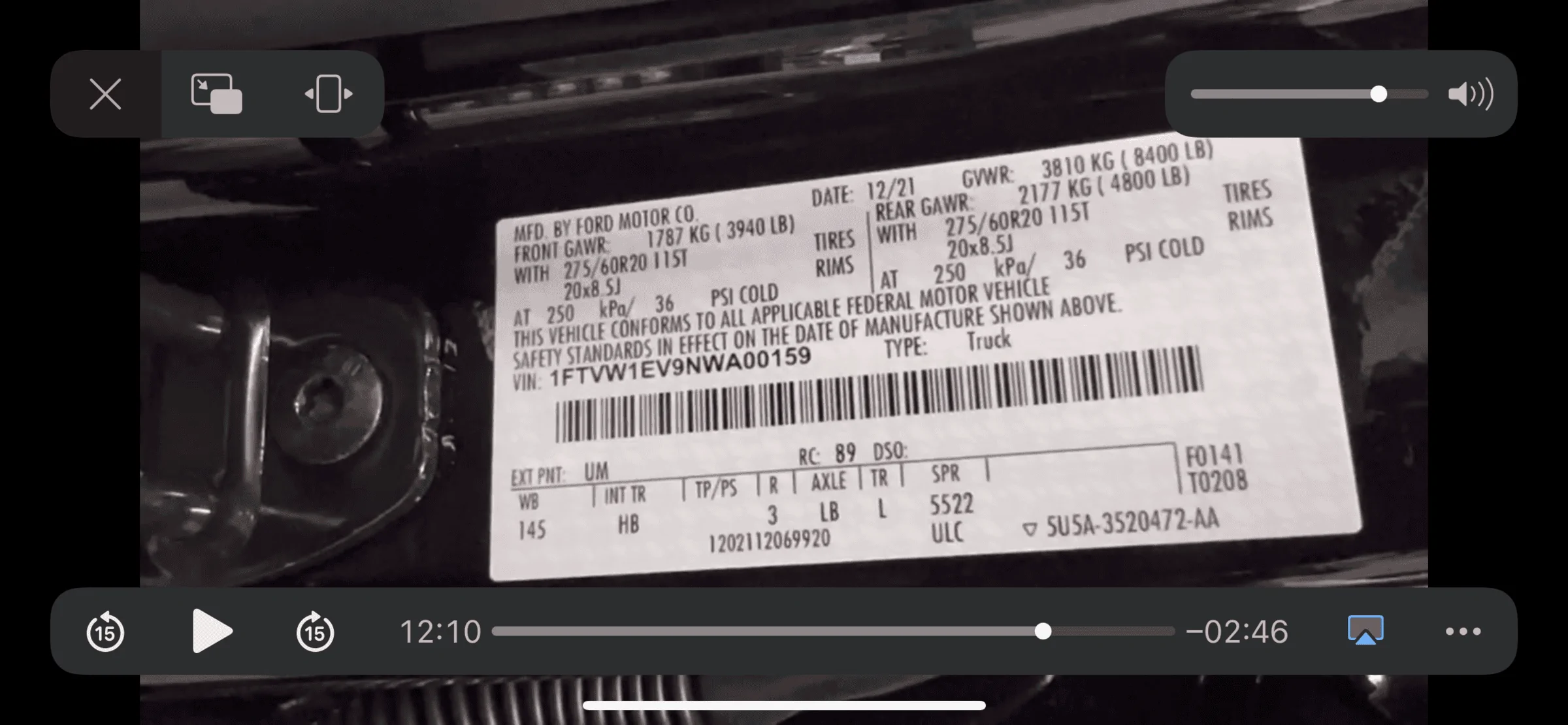

TFL, AT Tires

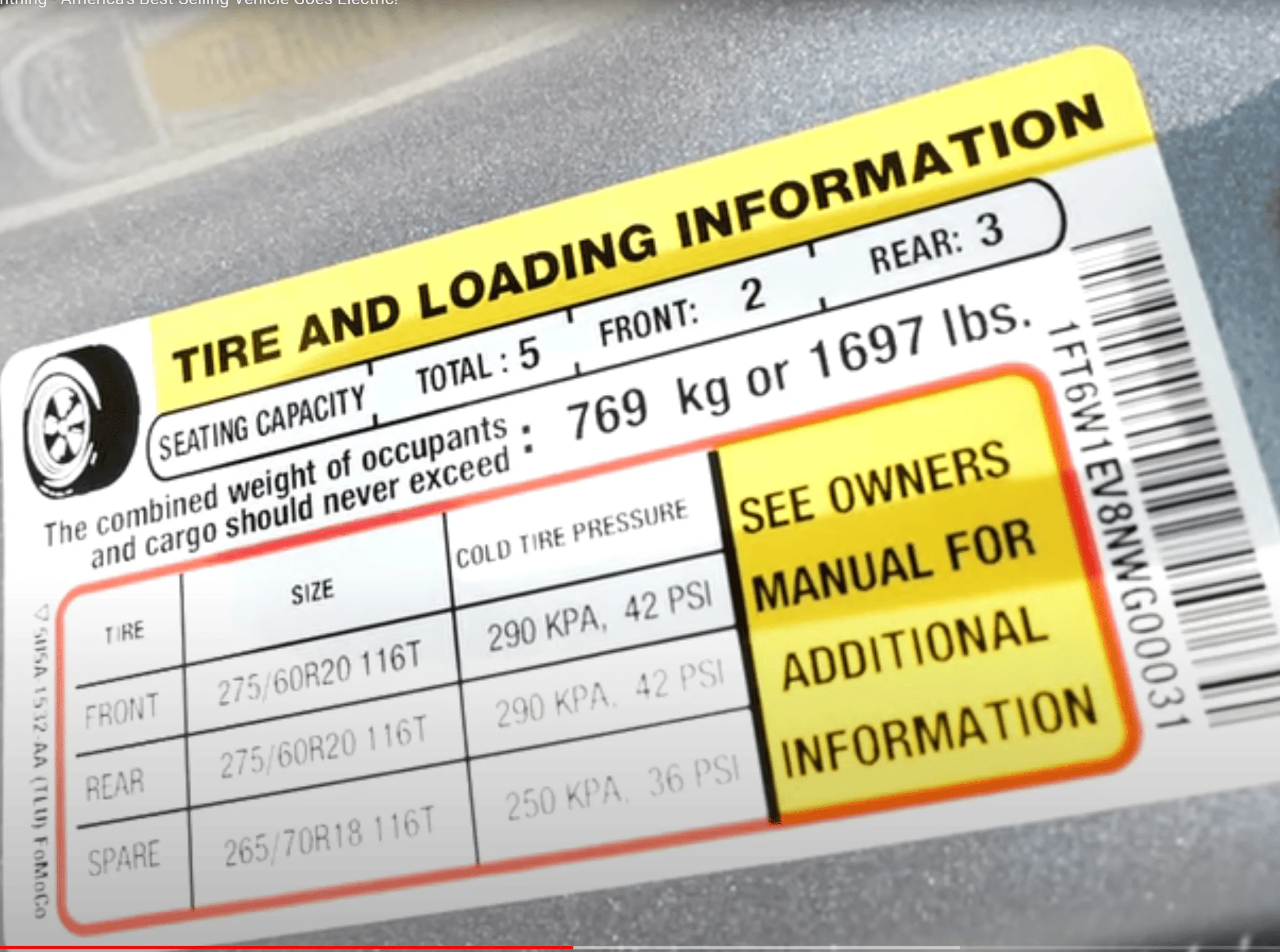

Platinum
TFL, Tire type unknown but possibly standard tires given GVWR of 8501-9000.

Sponsored



[Peter P]

From: https://www.rivianforums.com/forum/threads/f150-lightning-load-sticker-’s.4834/. No specs indicated unfortunately.



[p52Ranch]

The PRO ER that TFL reviewed had Michelin Primacy XC 275 65/R18 116T all season tires. 8,550 GVWR

The Lariat ER in that same TFL comparison had Hankook Dynapro AT2 275 60/R20 115T all terrain tires. 8.400 GVWR.

@RickLightning didn't have photos of the door stickers but he reported these from the Dearborn event:

I also got payloads off some production vehicles...

F-150L PRO with Michelin 275 65 R18 tires - 2,170 pounds GVWR 8,250, therefore 6,080 gross vehicle weight. This vehicle is Iced Blue Silver Metallic, and the last digits of the VIN are 01897.

F-150L Lariat (didn't get tire info) - 1,721 pounds GVWR 8,550, therefore 6,829 gross vehicle weight. This vehicle is Atlas Blue, and the last digits of the VIN are 02820.

F-150L Platinum with General Grabber 275/50 R 22 tires - 1,516 pounds GVWR 8,550, therefore 7,034 gross vehicle weight. This vehicle is Star White Metallic, and the last digits of the VIN are 02799.



[RickLightning]

I did have photos. Chose to not list full vins of someone's trucks.



[jpepper07]

I'm not really impressed with how the at tires look. I am thinking of just changing back to all season for the 150lb more payload on my sticker. I also feel like the awd will handle just fine in snow with all season.



[Easycamper]

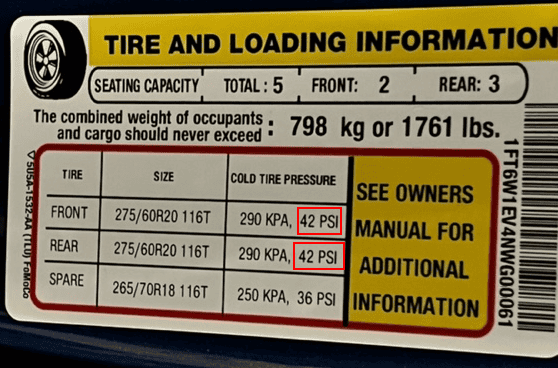

XLT ER (extended range) courtesy of @FordLightningMan

From: https://www.f150lightningforum.com/...ns-from-a-xlt-order-holder.10308/#post-206720



[Easycamper]

Pro SR (standard range) from Out of Spec Reviews.
(this truck had the optional spray-in Bedliner)



[TaxmanHog]

I wonder if they are redoing the tire/load specification stickers for the trucks after coming out with the revised capacities a couple weeks ago? Note they are serialized for the build specifications, that's a LOT of reprints to make for the initial ~1800 retail builds!! The provided AS & available AT tires do have their maximum limits.

The above VIN's are all pre-mass production, only module data is available but not window stickers , I'm sure they will never be sold to the public.

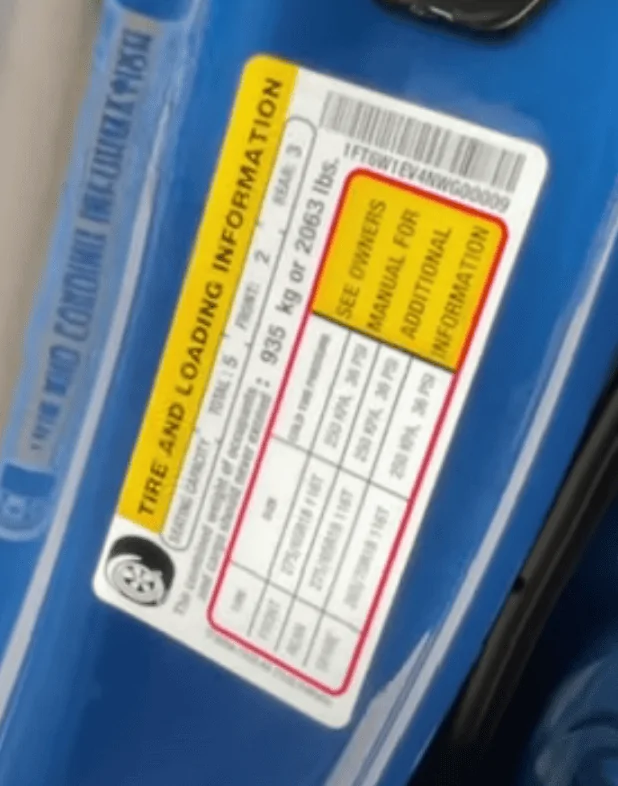

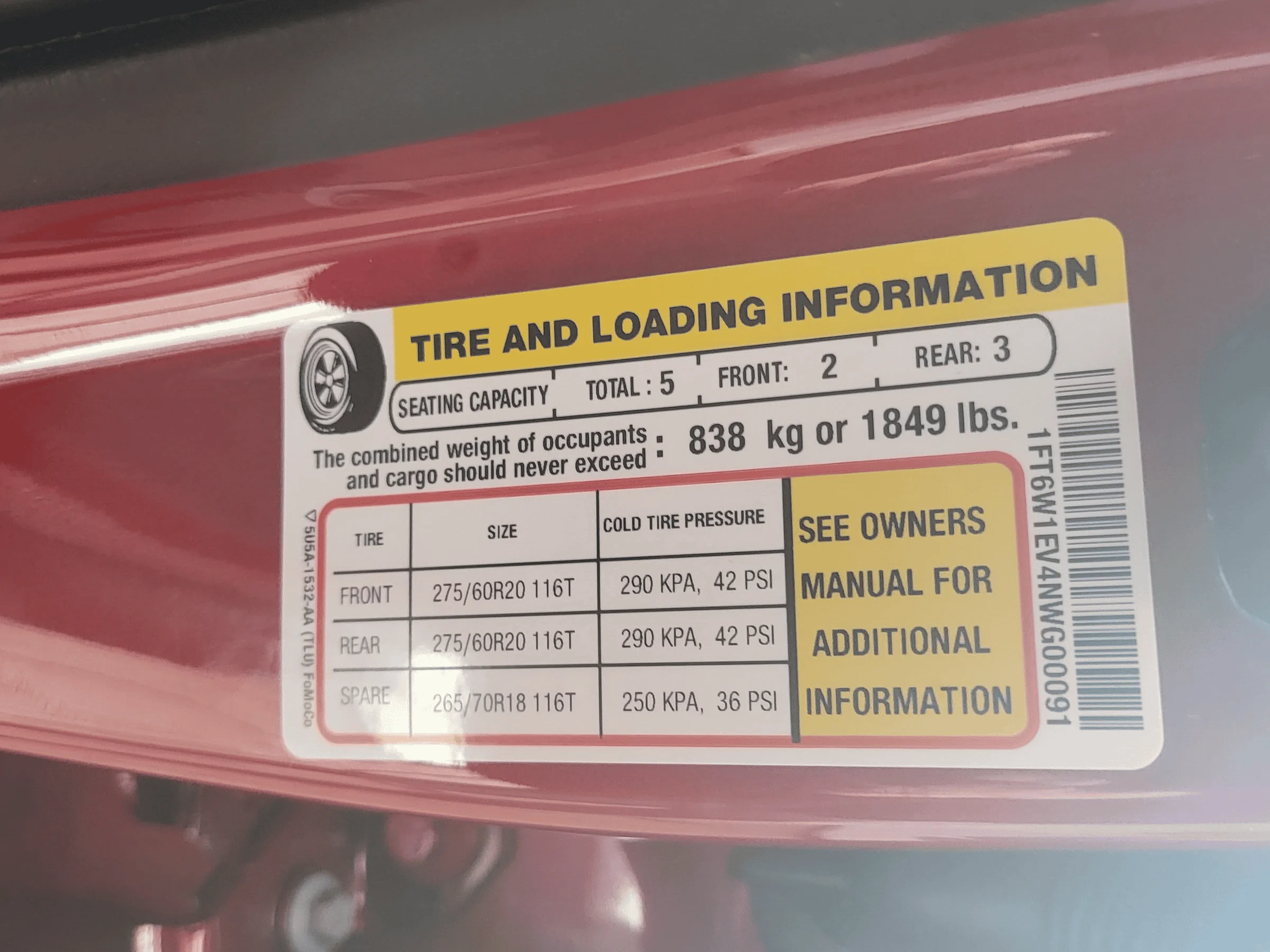

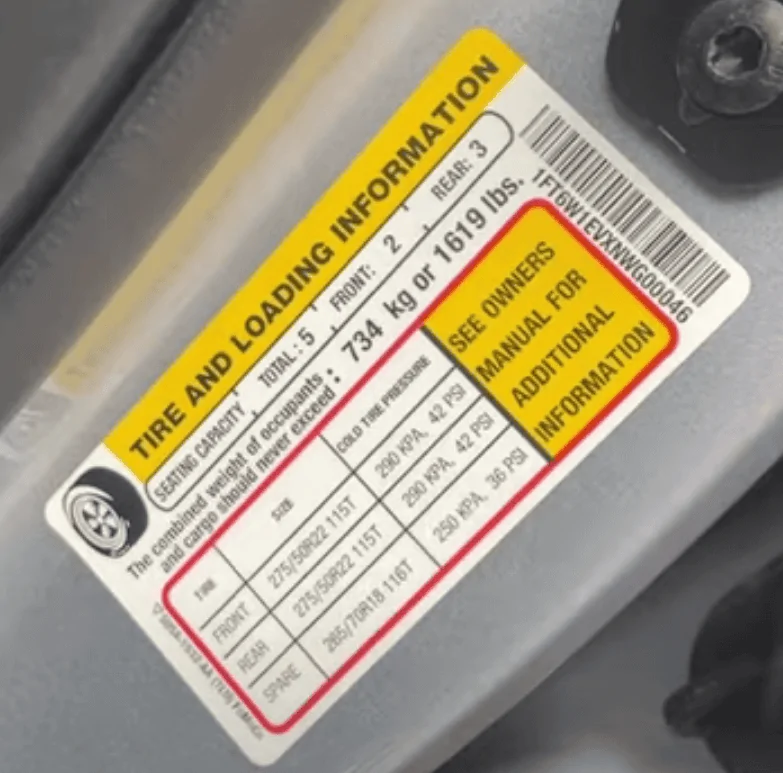

ER WITH AS'S
1FT6W1EV4NWG00009
1FT6W1EVXNWG00046

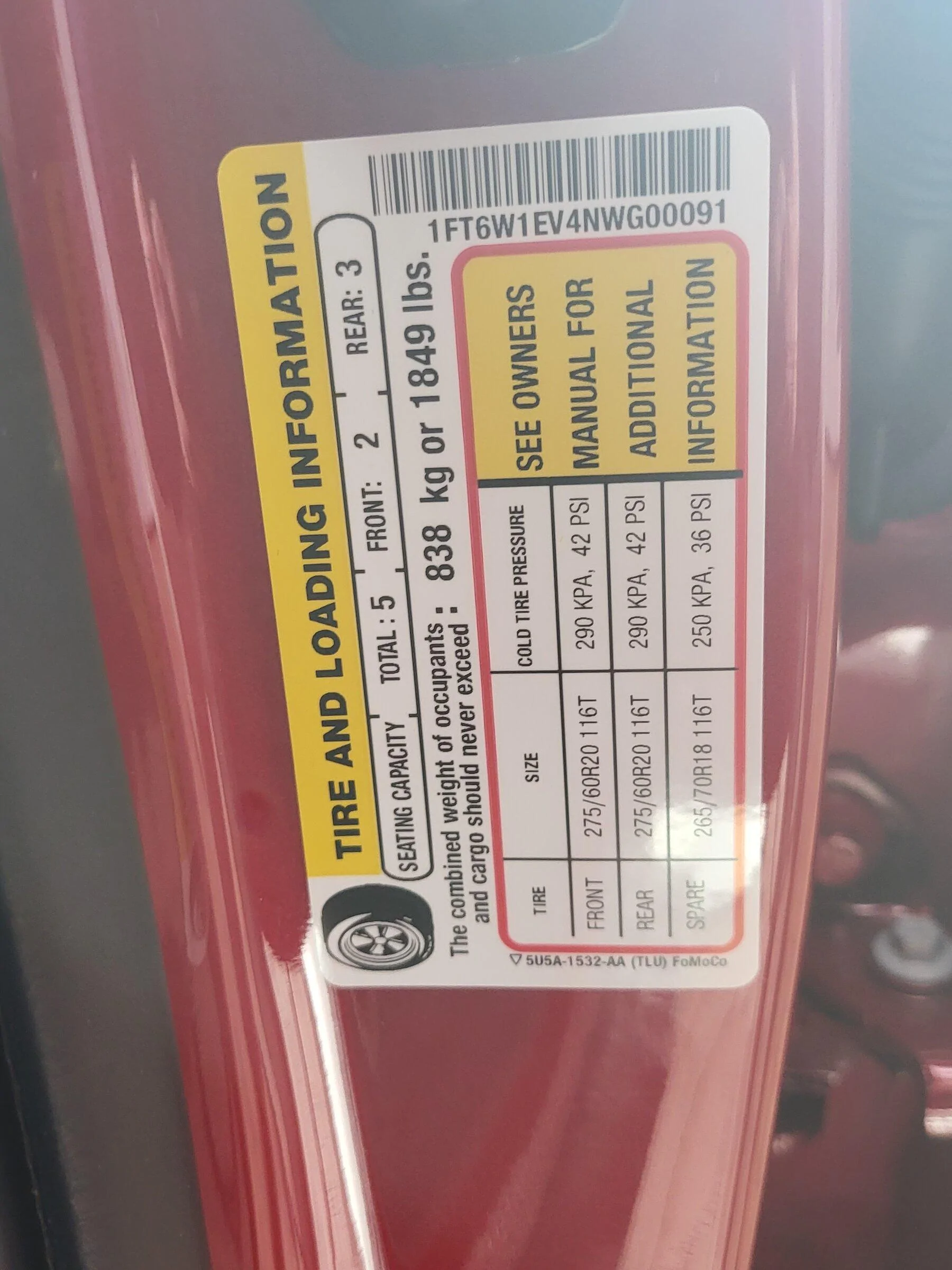

1FT6W1EV4NWG00091

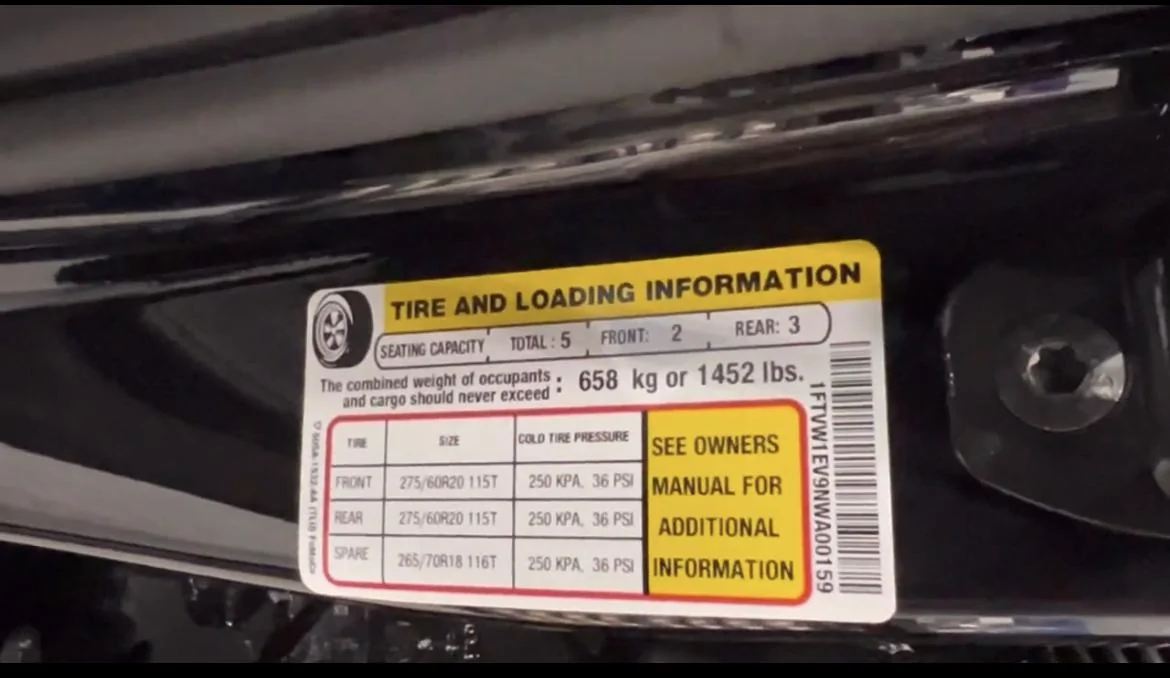

ER WITH AT'S
1FTVW1EV9NWG00159

SR WITH AT'S
1FTVW1EL8NWG00007



[Gerrard155]

Hello All!

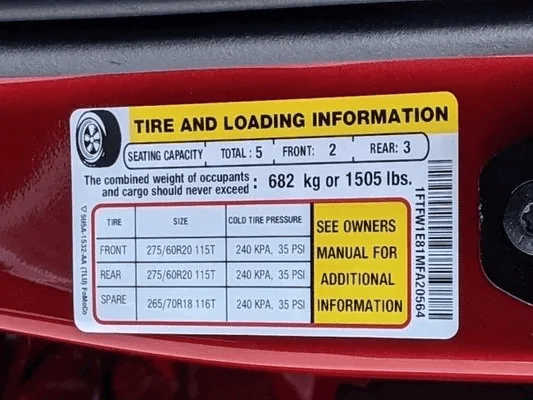

Considering an F150 Lightning and now that a few of you are having yours delivered, I wanted to see if members here would be willing to share your payload rating along with the trim/options you selected. Trying to get a feel for how the various trims/battery sizes/options affect the payload of the truck. That would be a photo like this-

Thank you!



[Mike G]

I didn't see a number like mine so....Lariat ER with .275/60R20 BSW ALL-SEASON



[Oneand0]

I didn't see a number like mine so....Lariat ER with .275/60R20 BSW ALL-SEASON

Mike G,

May I ask what did you order extra, if any on your Lariat ER? I am trying to figure out a light weight camper and want to do a heavier model between the two and your sticker gives me hope I will be okay with the 1133lbs dry weight camper.

Thanks!



[Mike G]

Mike G,

May I ask what did you order extra, if any on your Lariat ER? I am trying to figure out a light weight camper and want to do a heavier model between the two and your sticker gives me hope I will be okay with the 1133lbs dry weight camper.

Thanks!

Honestly it was just a 511A without Max Tow and the only extra thing was the rubber floor mats.

Mike

View attachment Lightning window sticker on delivery day.pdf



[Kev12345]

I didn't see a number like mine so....Lariat ER with .275/60R20 BSW ALL-SEASON

Does your lariat have the big moonroof?



[Mike G]

Does your lariat have the big moonroof?

Yes unfortunately. I hate moonroofs.

Mike



[Kev12345]

I wonder if someone could post a lariat payload sticker without the moonroof. I'm sure it adds a lot of weight.
