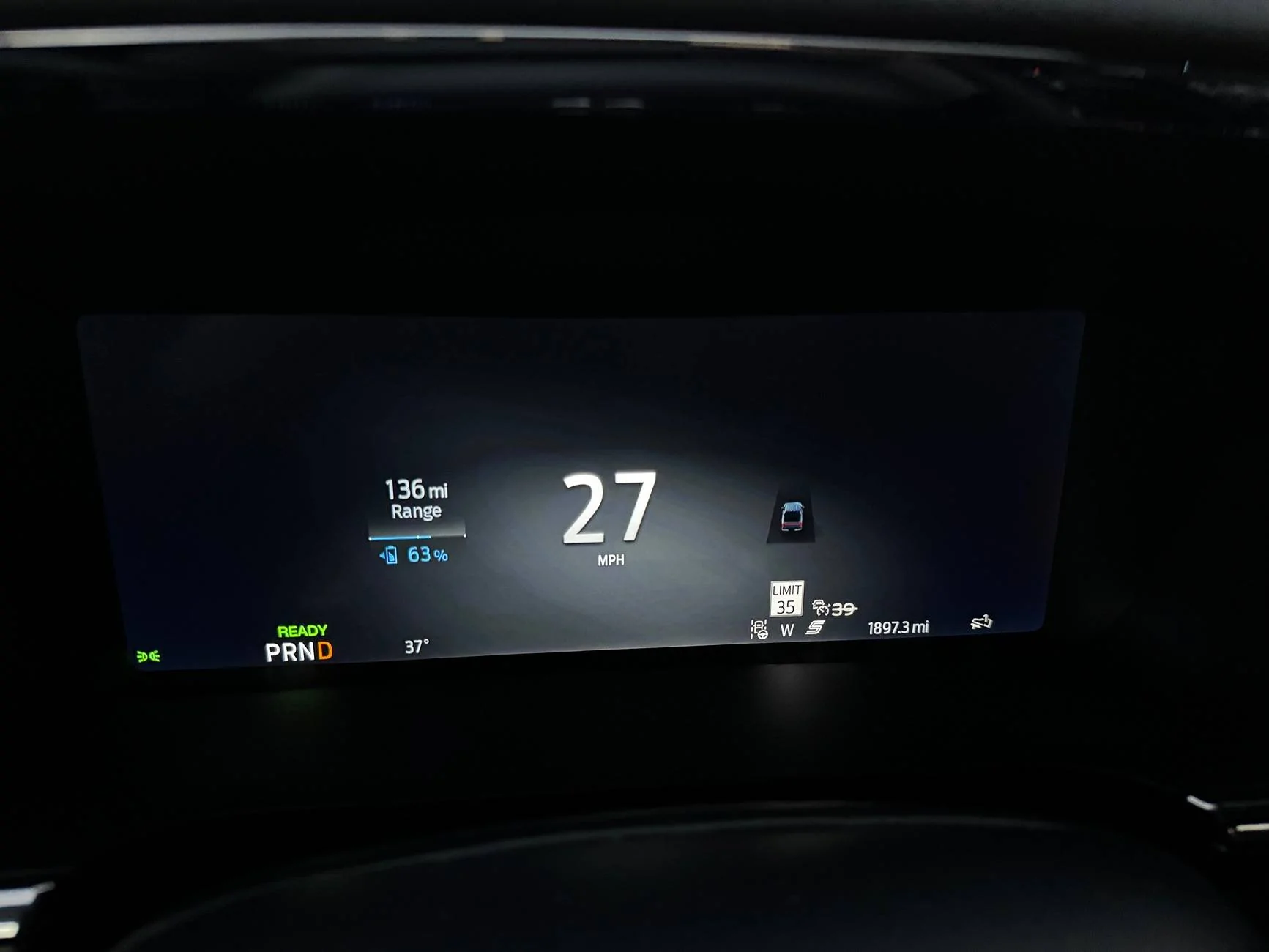

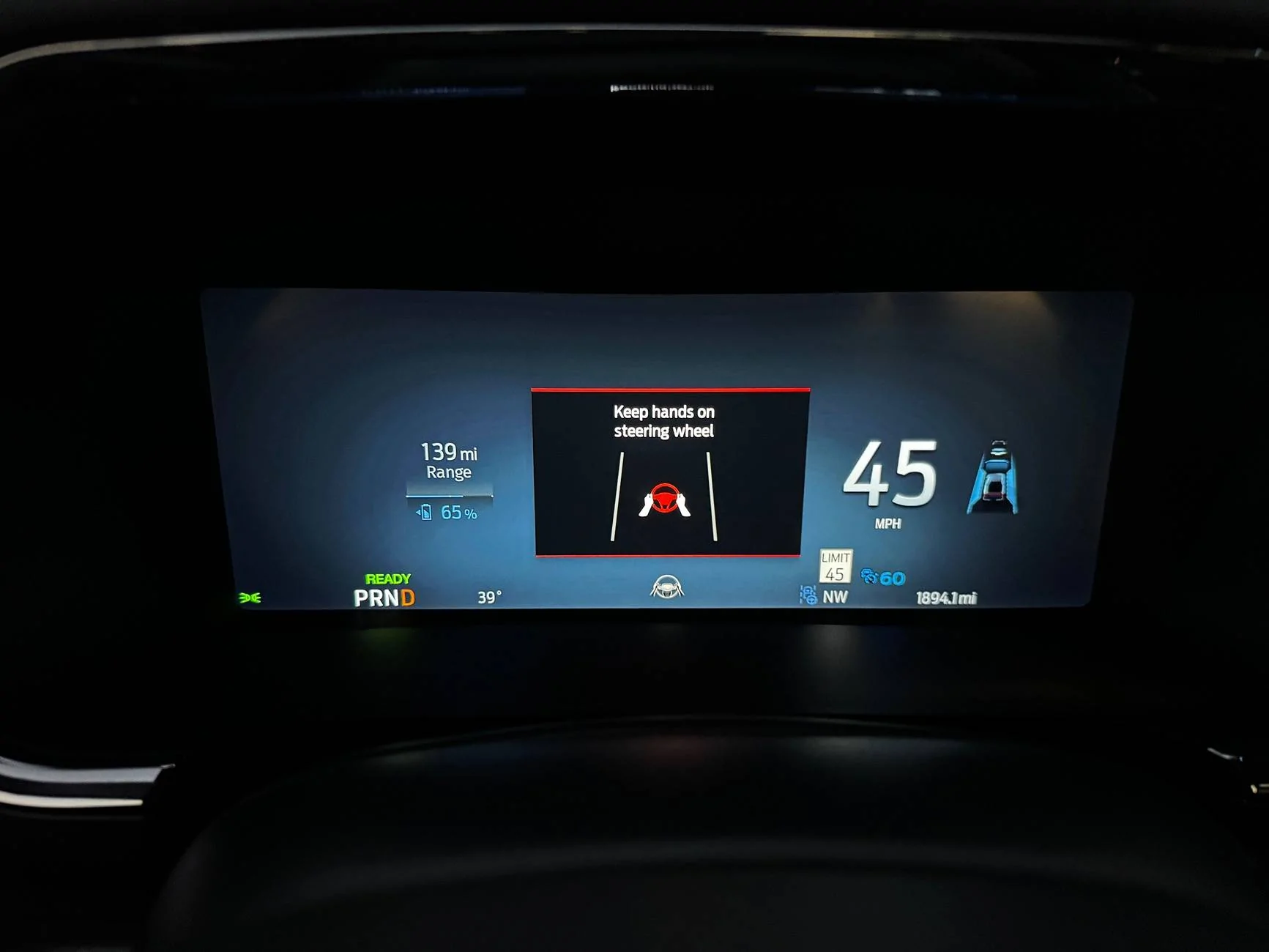

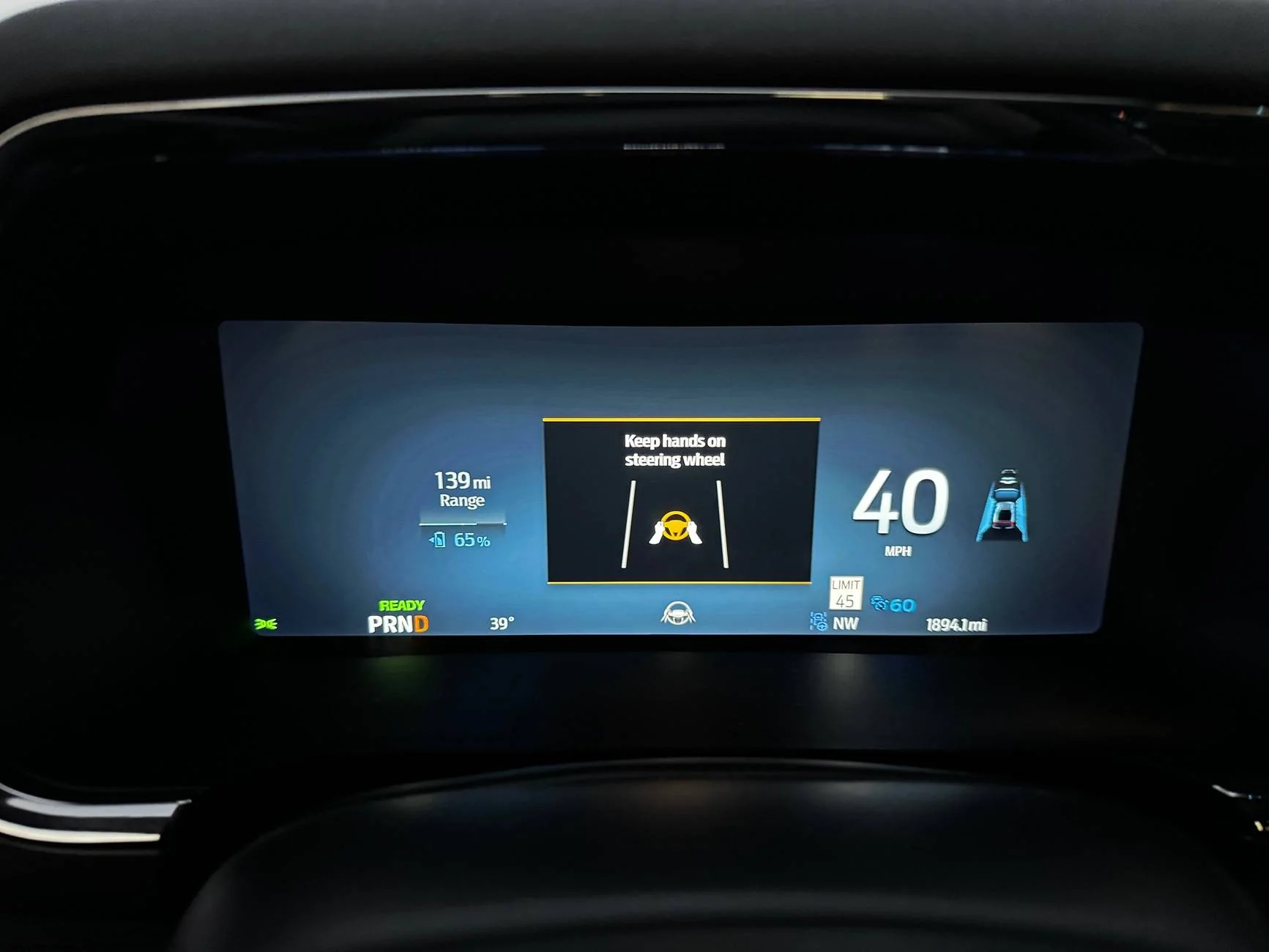

DIY: Installing ACC (Adaptive Cruise Control) and LKA (Lane Keep Alert) to 2022 F-150 Lightning XLT

[ZSC100]

I’m having two issues :
1- CCM will not show up despite changing values at IPMA 706-02-02 to from 04 to 05

I’m Getting 2 DTC ( related to IPMA).

Connection to IPMA has been done with correct polarity…

2- One of the changes in forescan I can’t find the correct value in livnitups library… the value is located at the IPMA 706-02-01 according to literature it says I need to only change the first value but the library only shows solutions for 2 values

3 - Also not sure what would be correct value I need to change at IPMA 706-16-01 4th digit in first block

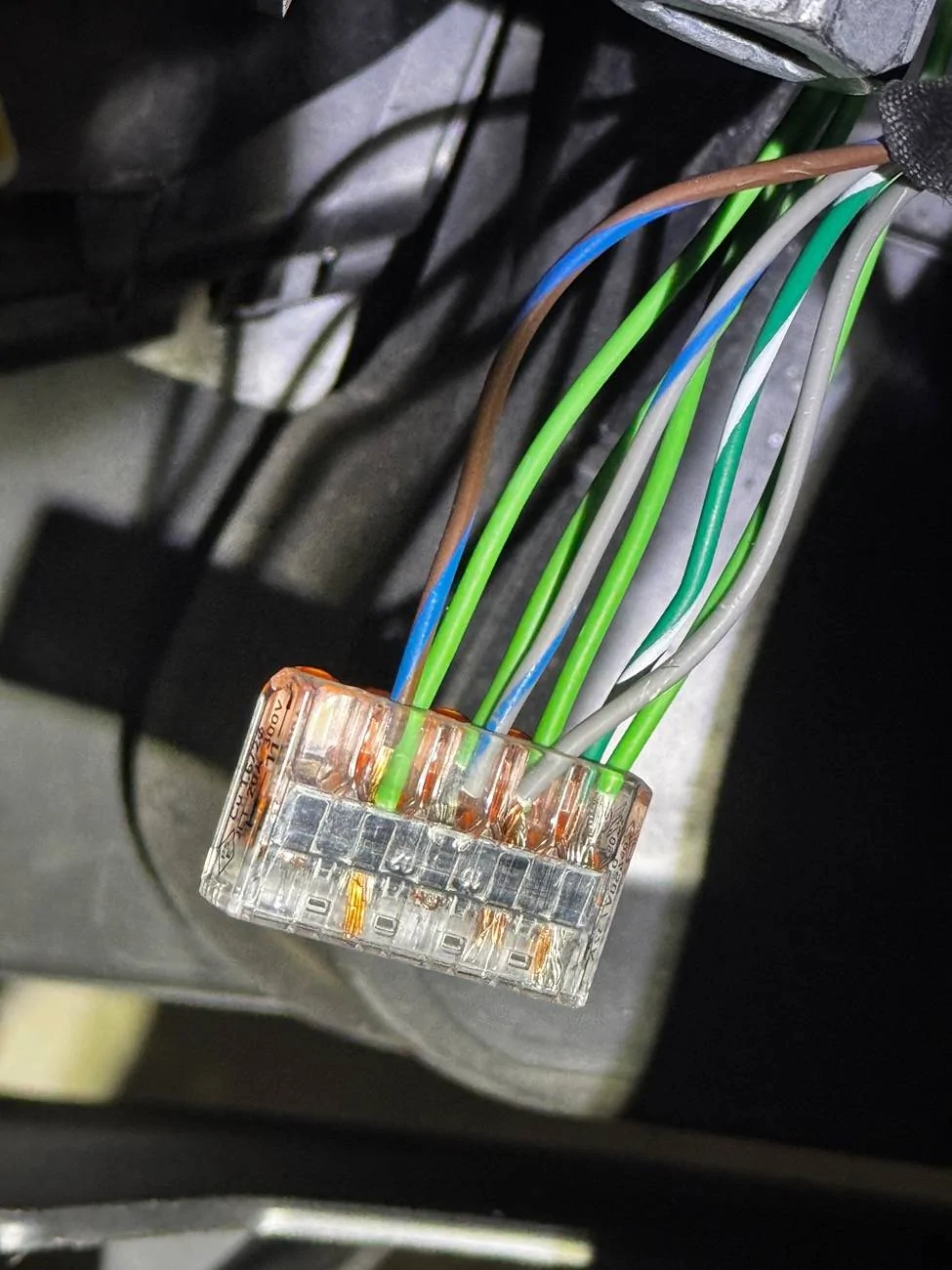

2nd picture shows connection at CCM module

I have a 2024 XLT with 360 camera

This is one of those situations where pictures are worth a million words. You're using the WAGO connector wrong. Each WAGO connector is fully connected across all ports; so you have essentially shorted all 8 wires together. Just run down to home depot and purchase a bag of 2 port WAGO connectors. Only ever put one wire in each port on a connector, that's how they are meant to be used, but that's ultimately not the issue here. You need four 2 port connectors to do this correctly. Twist each stranded wire before inserting in to the connector ports.



[R1CH4RD]

No finding it means it's probably not powered or hooked up correctly. You need to measure 12v at the bumper connector to verify it's on the correct pins. Use the wiring diagram and info in previous threads, several people have had this problem.

Thanks for responding I will verify everything again this weekend to ensure everything is G2G



[DXD]

Cool..how‘s your budget of parts?
